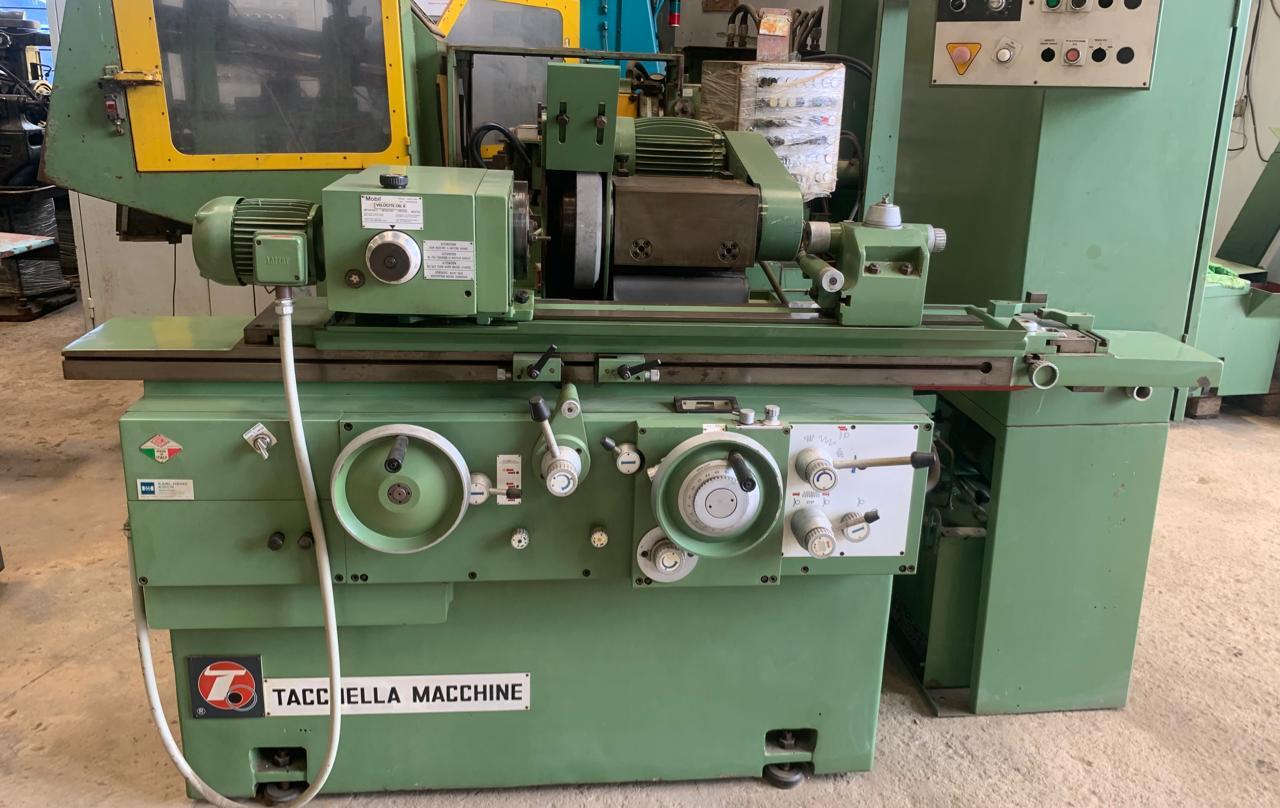

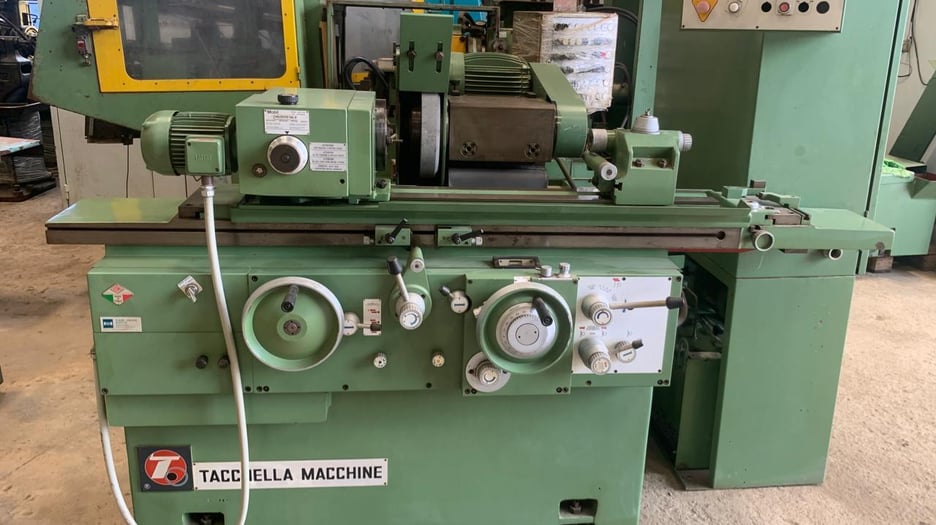

Used Tacchella 612 UA Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

This used Tacchella 612 UA cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. A cylindrical grinder finishes the outer surfaces of round parts with a rotating grinding wheel.

It has a centre height of 120 mm, grinds diameters up to 255 mm and takes work up to 600 mm long. The 4 kW motor drives a 350 x 40 x 127 grinding wheel at 1,900 rpm.

Technical Specifications

• Model: Tacchella 612 UA
• Centre height: 120 mm
• Grinding diameter: 255 mm
• Maximum grinding length: 600 mm
• Grinding wheel size: 350 x 40 x 127
• Wheel speed: 1,900 rpm
• Table translation speed: 0.1–7
• Motor power: 4 kW
• Weight: 2,400 kg

Applications

• Shafts and spindles
• Pins, bushes and sleeves
• Round precision components needing a ground finish
• Tool room and general engineering work

Commercial Details

• Make: Tacchella
• Model: 612 UA
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it grind? It grinds diameters up to 255 mm and lengths up to 600 mm, with a centre height of 120 mm.
• What is the motor power and wheel speed? The motor is 4 kW and the wheel runs at 1,900 rpm.
• How heavy is the machine? It weighs 2,400 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which accessories, wheels and workholding are included, the condition of the electrics and control, and the arrangements for loading and shipping.
