Used Takang TNC-N200DS CNC Turning Center | A.K. Machine Traders, Navi Mumbai, India

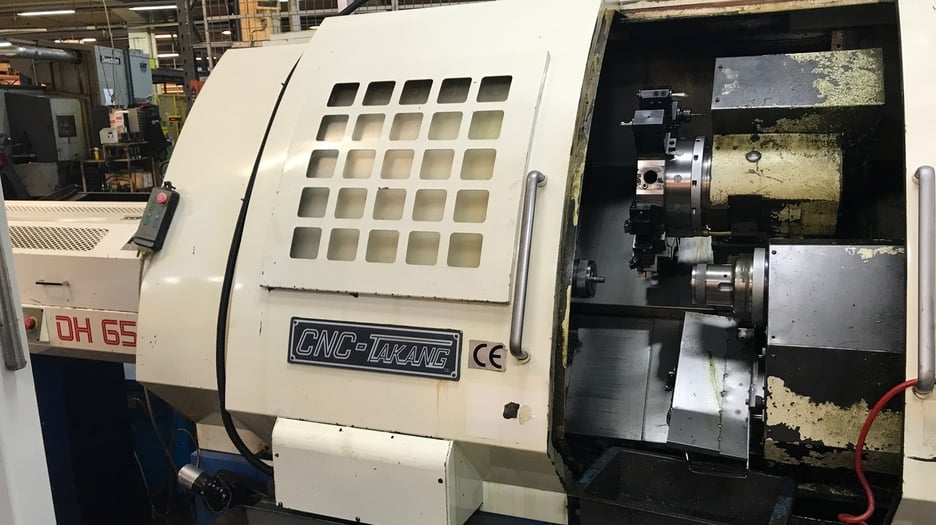

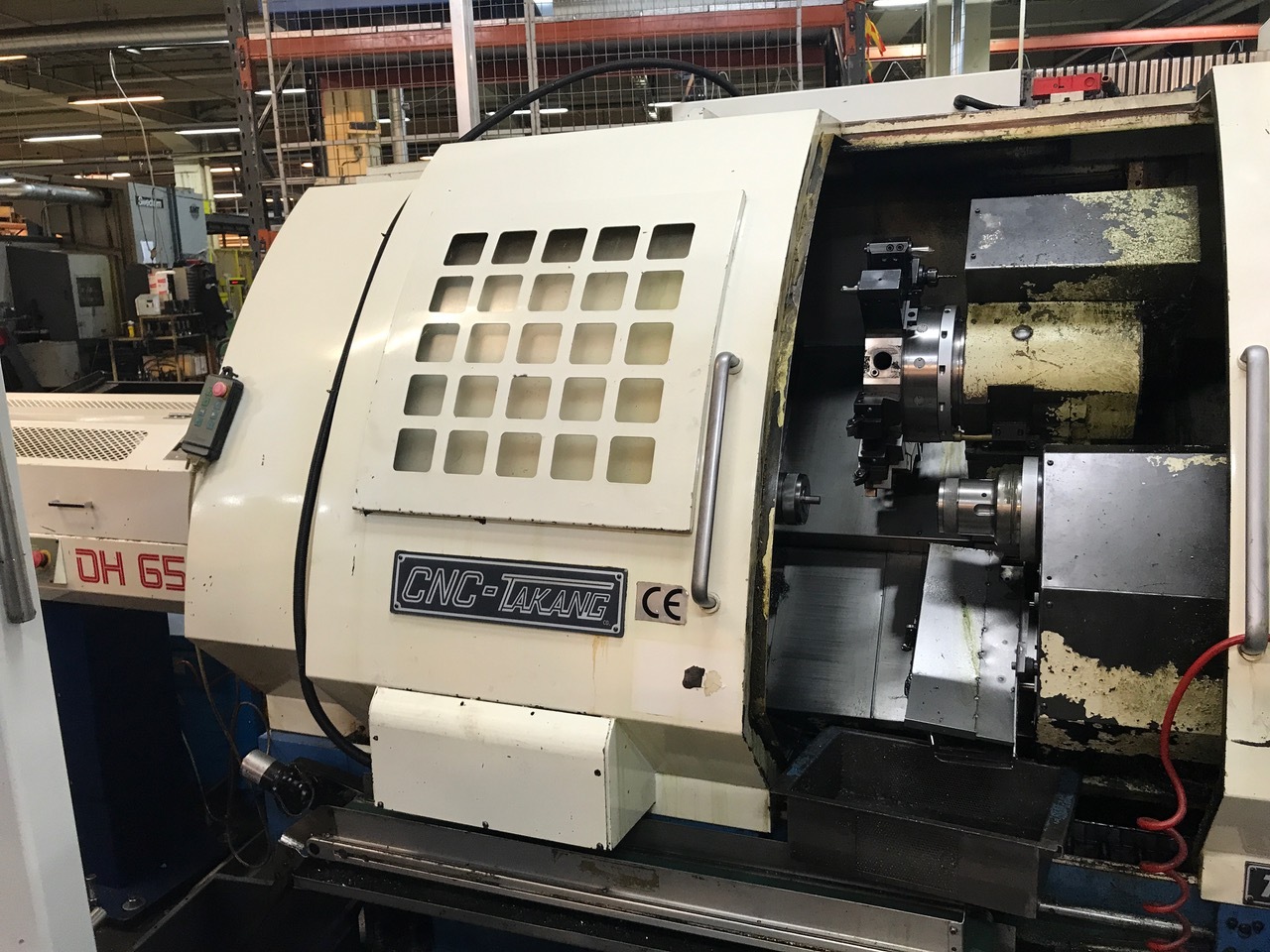

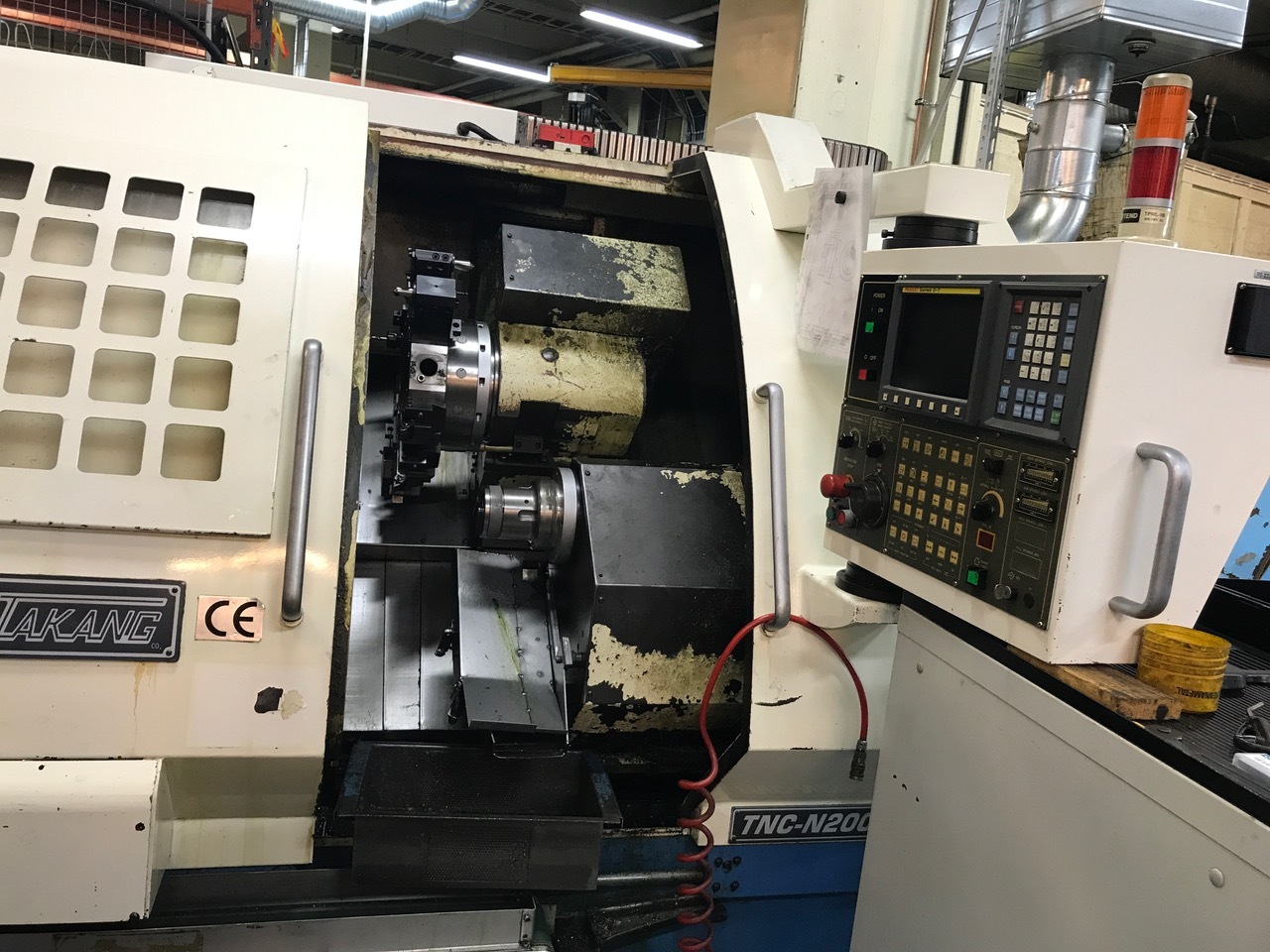

This used Takang TNC-N200DS CNC turning centre is available from A.K. Machine Traders in Navi Mumbai, India. It is a twin-spindle lathe with a main spindle and a sub spindle, a 12-station servo turret and a Fanuc OT control.

Both spindles have an A2-5 nose, a Ø 56 mm bore and a speed range of 60–6,000 rpm. The machine is listed as a 2002 model, with a swing over bed of Ø 600 mm and a maximum machining diameter of Ø 245 mm.

Key Features

• Twin spindles (main and sub) with hydraulic chucks
• 12-station servo turret with a 0.2 sec tool change time
• VDI 30 tool holders, Ø 20 mm
• B axis travel of 260 mm with rapid travel of 20 m/min
• Fanuc OT control

Technical Specifications

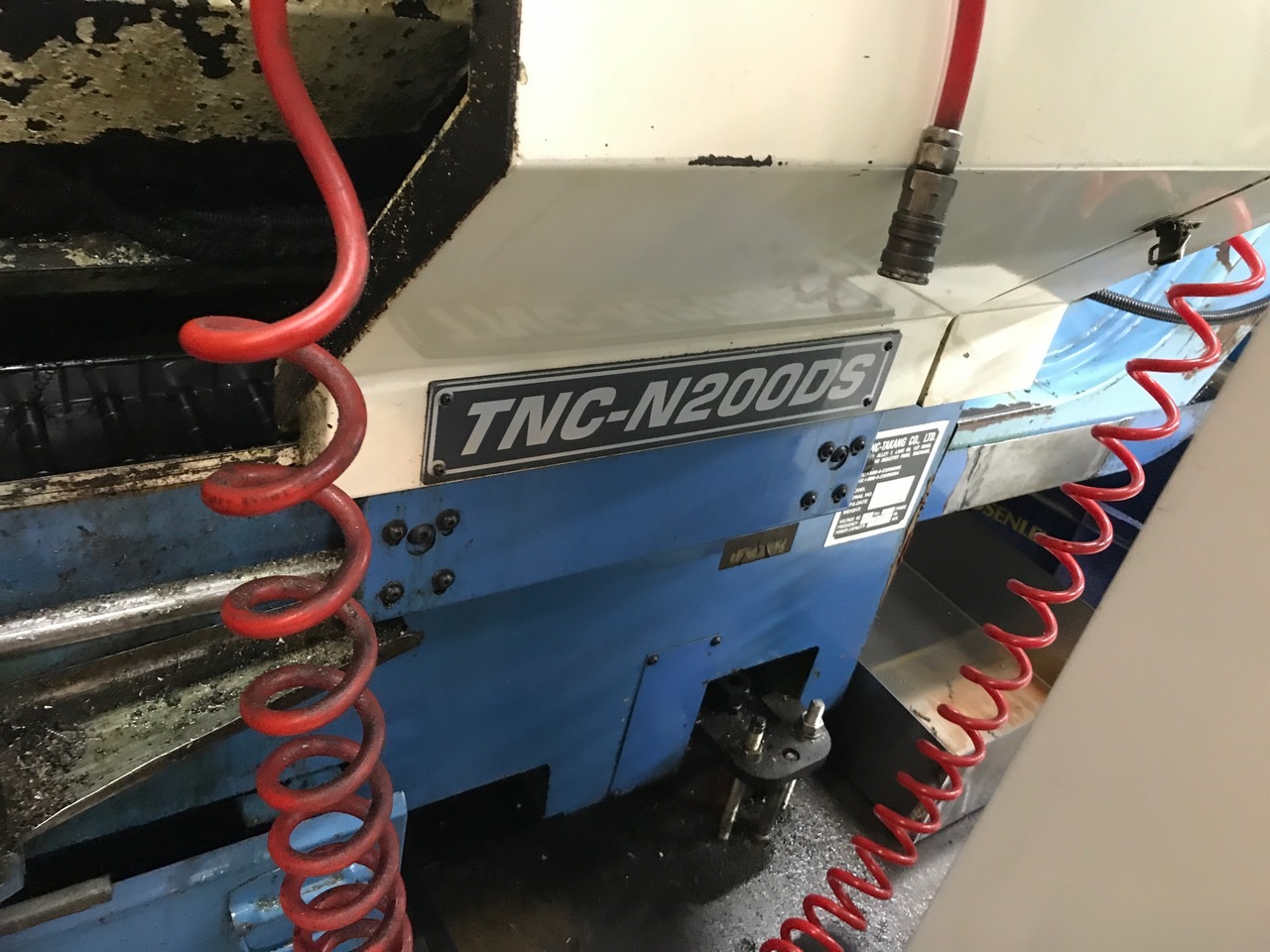

• Model: Takang TNC-N200DS

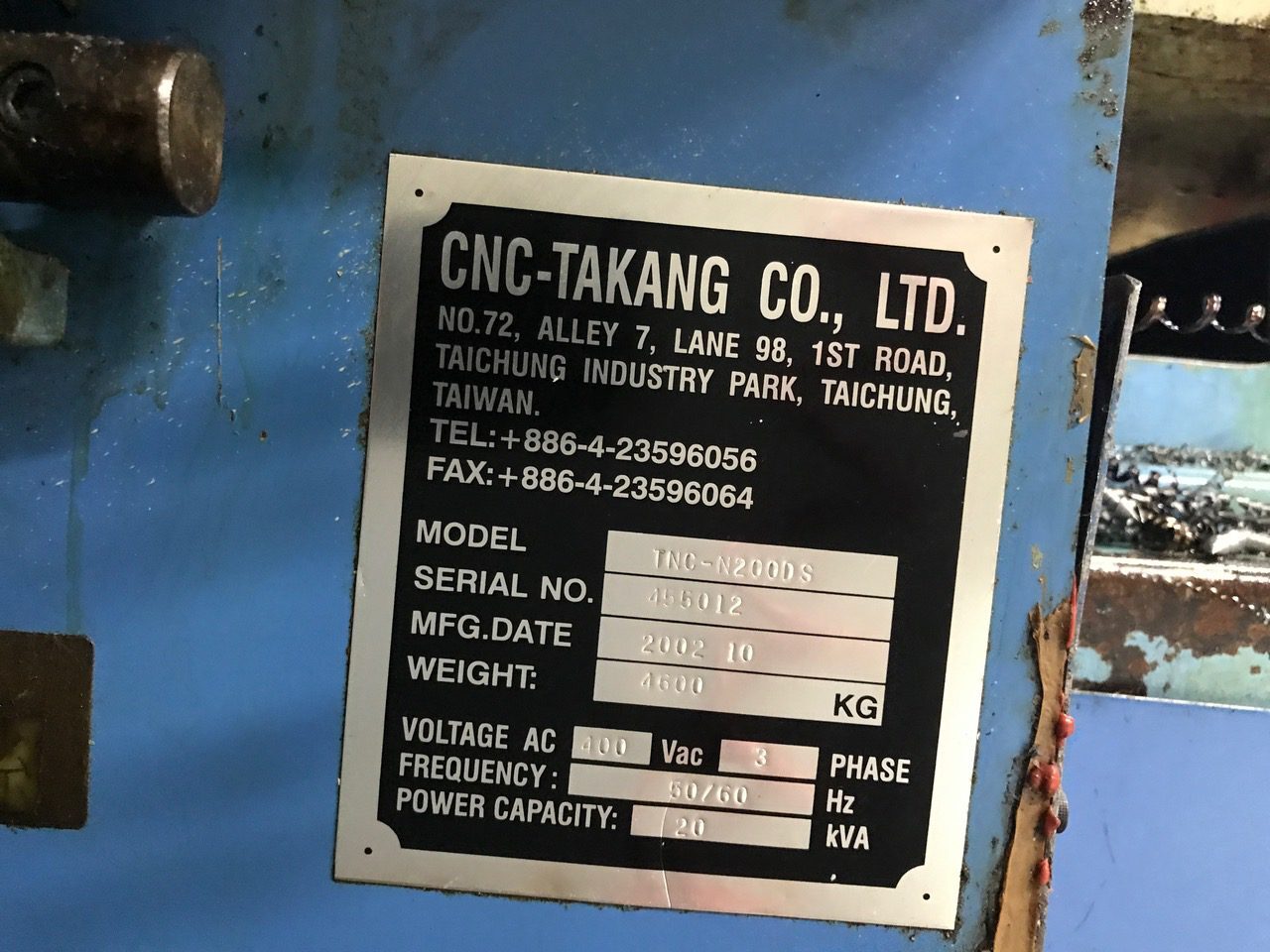

• Year: 2002

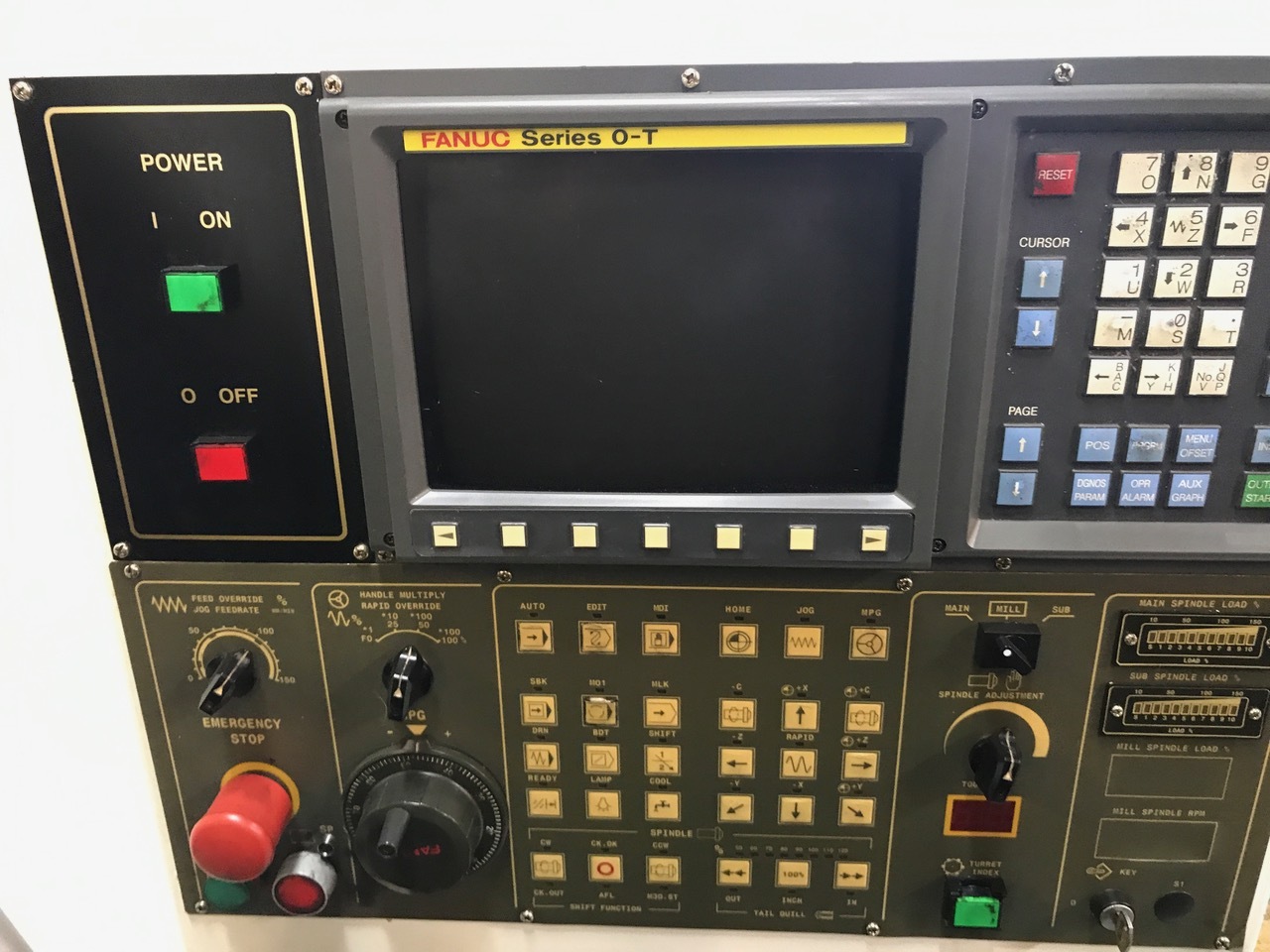

• Control: Fanuc OT
• Swing over bed: Ø 600 mm
• Max. machining diameter: Ø 245 mm
• Max. machining length: 260 mm
• Spindle nose (main and sub): A2-5
• Spindle bore (main and sub): Ø 56 mm
• Bar capacity (main and sub): Ø 45 mm
• Spindle bearing ID (main and sub): Ø 90 mm
• Hydraulic chuck (main and sub): Ø 169 mm
• Spindle speed (main and sub): 60–6,000 rpm
• B axis stroke: 260 mm
• B axis rapid travel: 20 m/min
• Turret: 12 stations, servo
• X1 axis stroke: 165 mm
• Z1 axis stroke: 310 mm
• Rapid travel X1 and Z1: 30 m/min
• Tool change time: 0.2 sec
• Tool holder: VDI 30, Ø 20 mm
• Max. boring bar: Ø 32 mm
• Main spindle motor: α12iP, 5.5/7.5 kW
• Sub spindle motor: Fanuc α6i, 5.5/7.5 kW
• X1 axis servo motor: α8iB, 1.6 kW
• Z1 axis servo motor: α8iB, 1.6 kW
• Hydraulic oil pump: 1.5 kW
• Coolant pump: 750 W
• Packing size: 370 x 225 x 225 cm
• Gross weight: 5,830 kg

Applications

• Turned shafts, pins and bushes from bar
• Small round components machined on both ends
• Parts needing drilling, boring or tooling from VDI holders
• Batch production of precision turned parts

Commercial Details

• Make: Takang
• Model: TNC-N200DS
• Year: 2002
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does this machine have? It has a Fanuc OT control.
• What is the maximum bar size? Bar capacity is Ø 45 mm on both the main and sub spindles.
• How many tools does the turret hold? The servo turret has 12 stations and takes VDI 30 tool holders.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling and accessories are included, the condition of the control and electrics, and loading and shipping arrangements (packed size 370 x 225 x 225 cm, gross weight 5,830 kg).
