Used Tokarka Ryazan 1M65 Heavy Duty Lathe | A.K. Machine Traders, Navi Mumbai, India

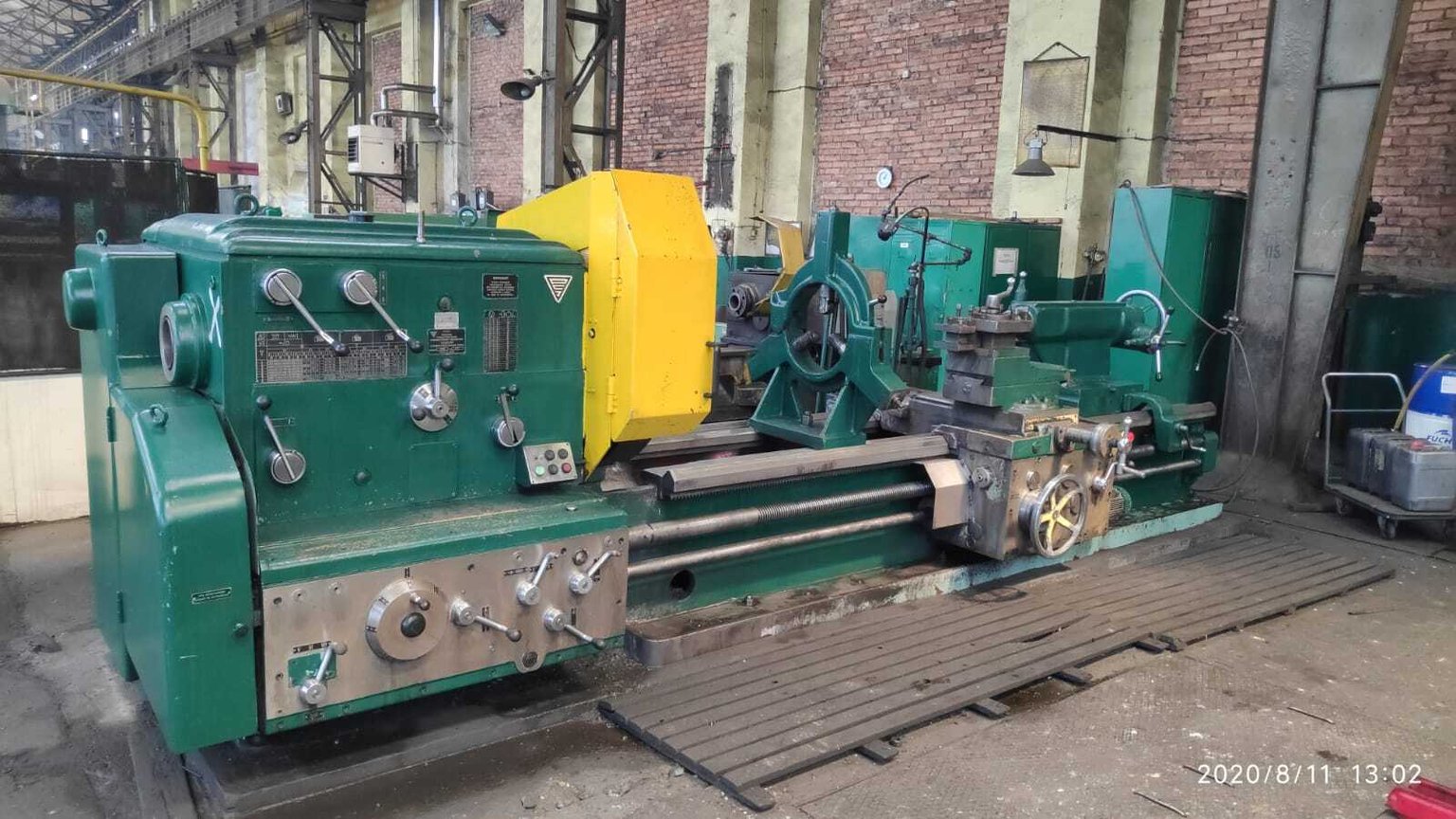

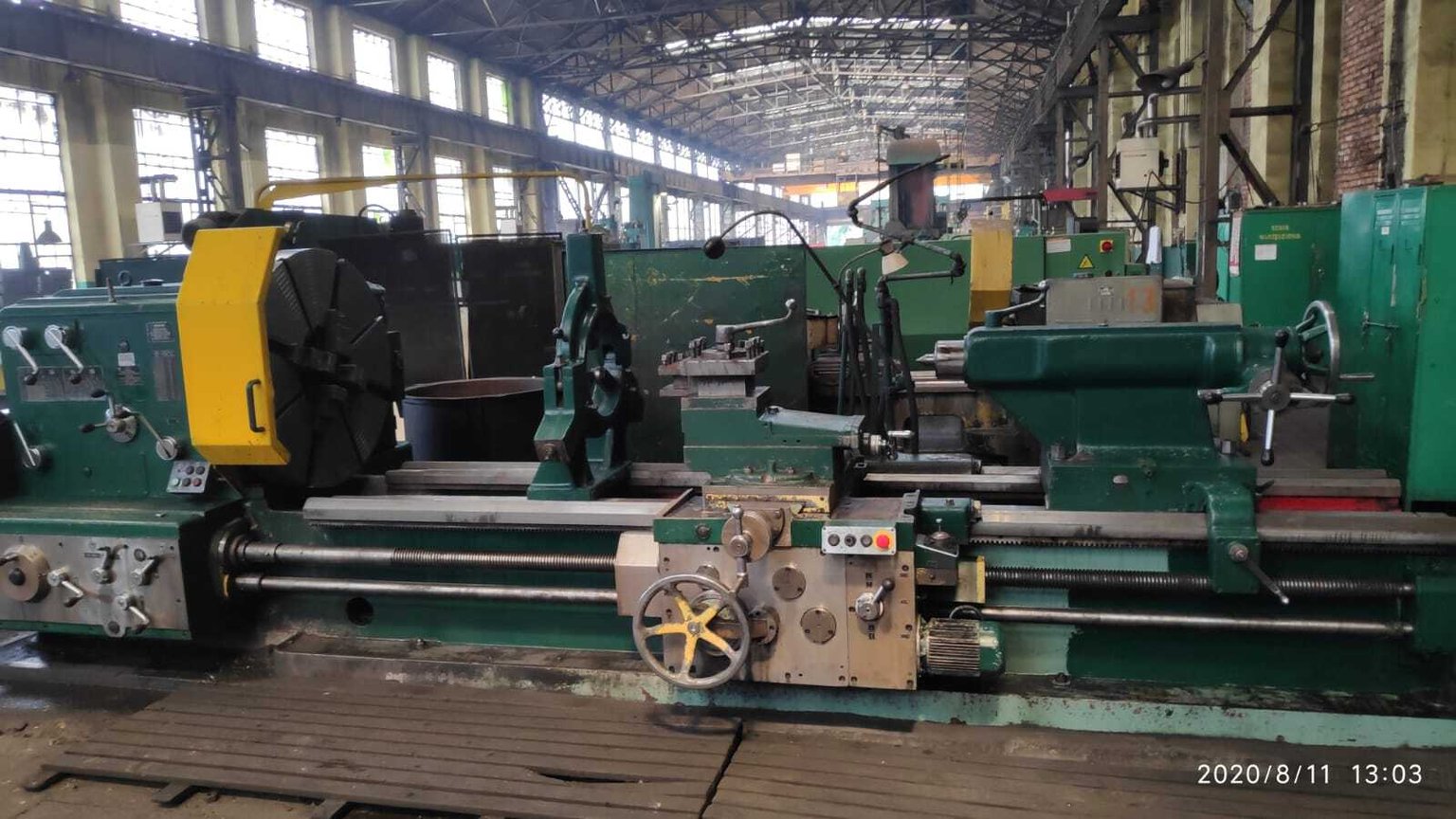

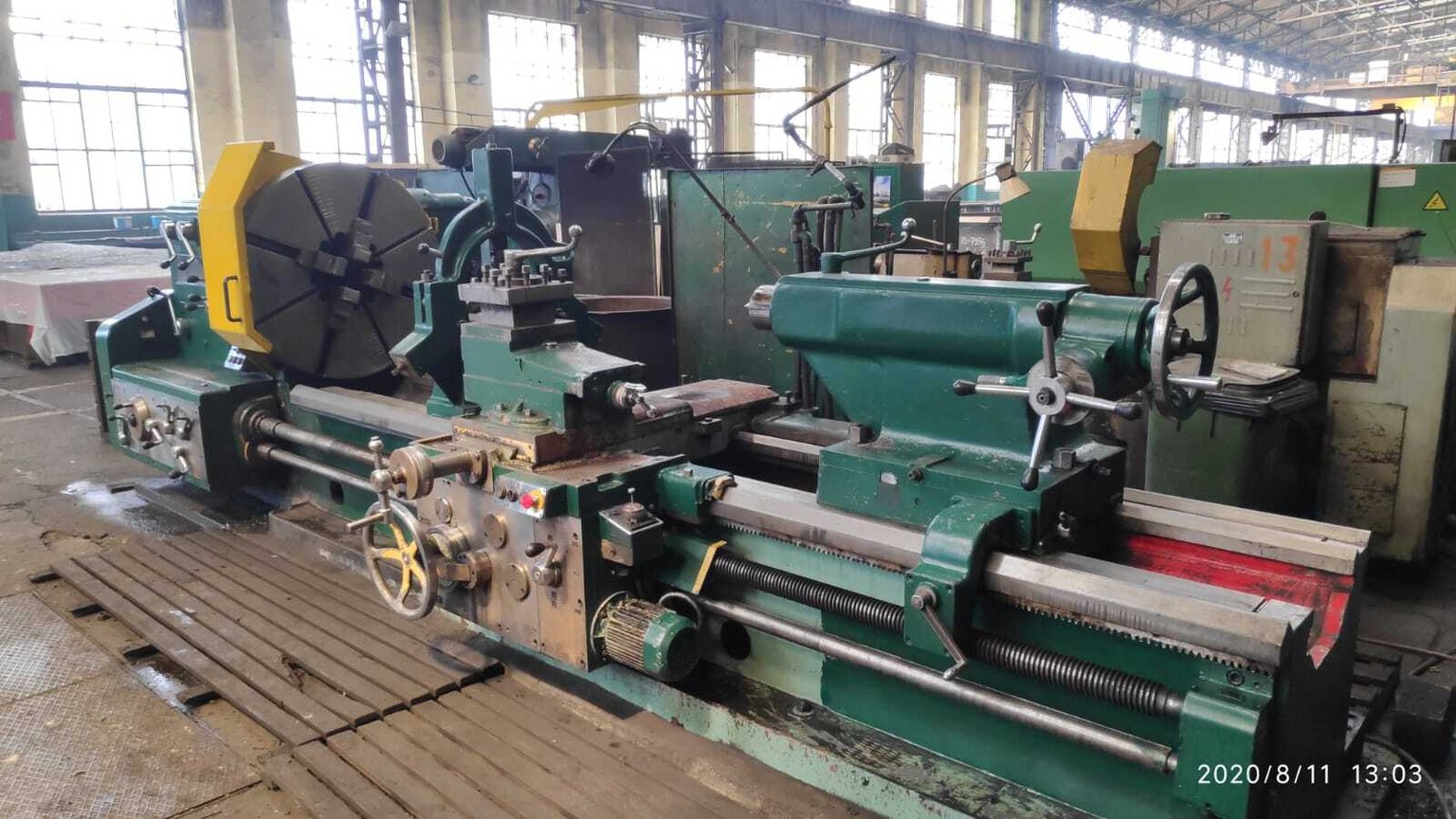

This used Tokarka Ryazan 1M65 heavy duty lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a centre lathe for turning large, long workpieces, with 3,000 mm between centres.

It swings workpieces up to 1,000 mm in diameter over the bed and 600 mm over the support. The spindle has 24 speeds from 5–500 rpm, and 32 feeds are available for turning and threading work.

Key Features

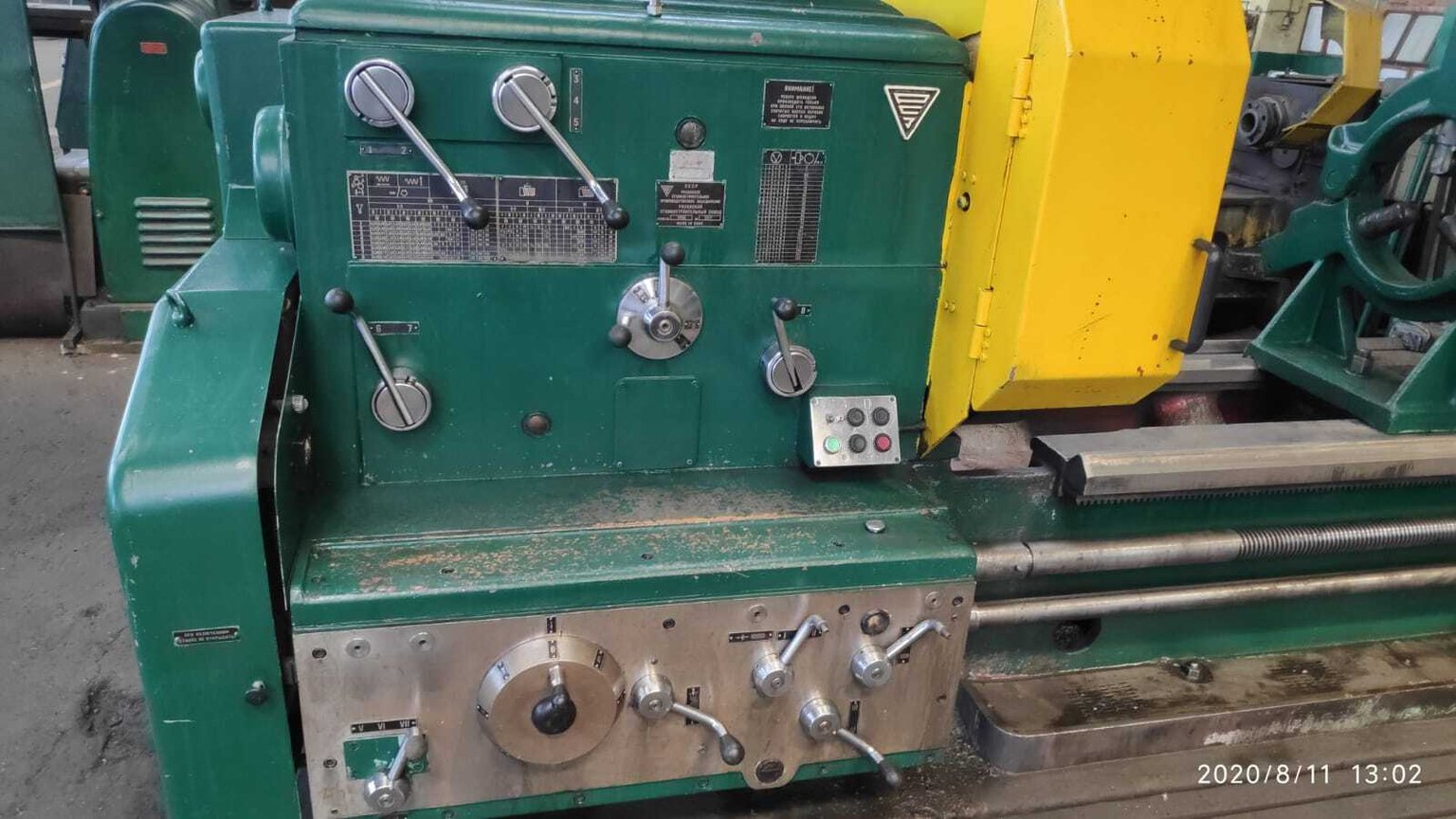

• 24 spindle speeds
• 32 feeds, longitudinal and cross
• Metric, modular and inch thread cutting
• Spindle nose to GOST 12595-72, 1-15M

Technical Specifications

• Model: 1M65
• Distance between centres: 3,000 mm
• Maximum workpiece diameter above bed: 1,000 mm
• Maximum workpiece diameter above support: 600 mm
• Spindle bore: 85 mm (minimum)
• Spindle nose: GOST 12595-72, 1-15M
• Cutting tool height: 50 mm
• Number of spindle speeds: 24
• Spindle speed: 5–500 rpm
• Number of feeds: 32
• Longitudinal feed: 0.20–3.05 mm/rev
• Cross feed: 0.07–1.04 mm/rev
• Maximum cutting force allowed by feed mechanism, longitudinal: 1,200 kg
• Maximum cutting force allowed by feed mechanism, transverse: 780 kg
• Metric thread pitch: 1–120 mm
• Modular thread: 0.5–30 module
• Inch thread: 28–1.4 threads/inch

Applications

• Turning long shafts and rolls
• Machining large-diameter workpieces
• Heavy engineering and general machine shop work
• Cutting metric, modular and inch threads

Commercial Details

• Make: Tokarka Ryazan
• Model: 1M65
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the distance between centres? The lathe has 3,000 mm between centres.
• What is the largest workpiece it can swing? It takes up to 1,000 mm diameter over the bed and 600 mm over the support.
• What spindle speeds are available? There are 24 speeds in the range 5–500 rpm.
• What should I ask when enquiring? Ask for photos or video of the lathe running, whether it can be inspected, which chucks, steady rests and tooling are included, the condition of the electrics and controls, and loading and shipping arrangements.
