Used TOS FA 5V Vertical Milling Machine | A.K. Machine Traders, Navi Mumbai, India

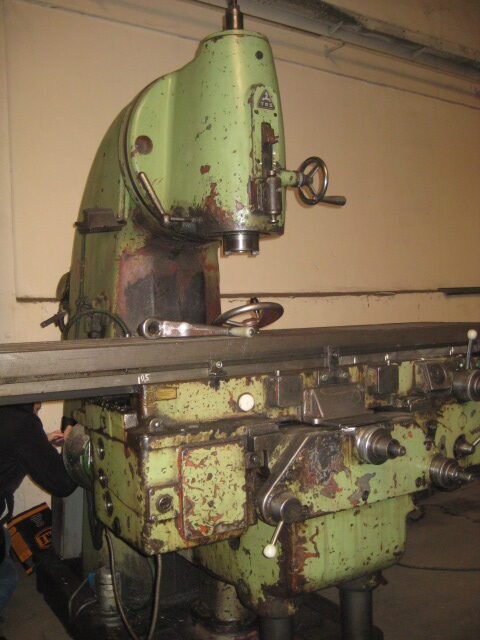

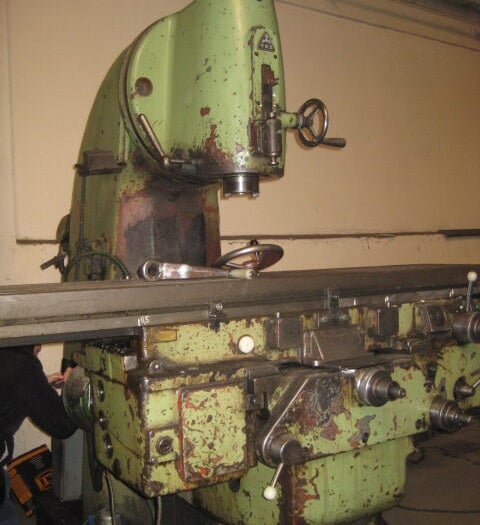

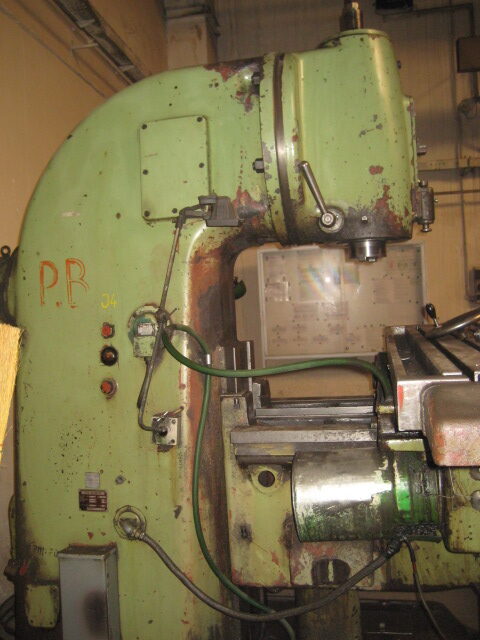

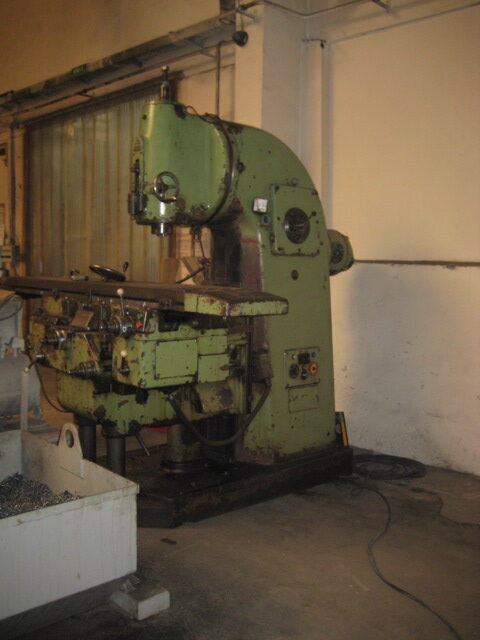

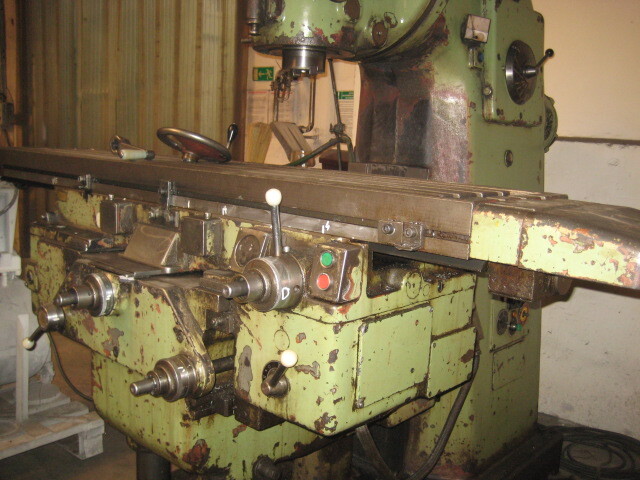

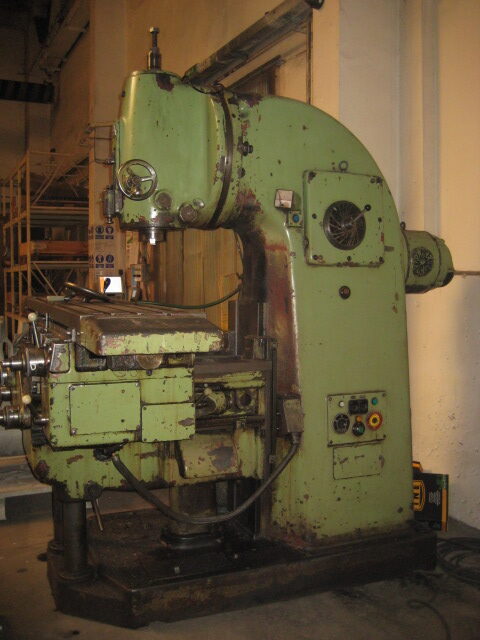

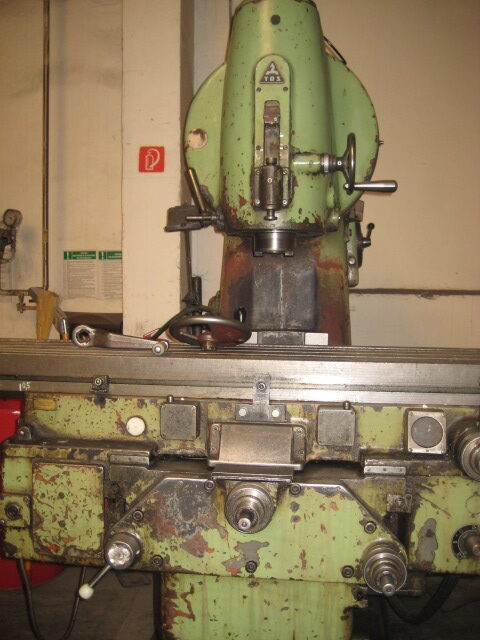

This used TOS FA 5V vertical milling machine is available from A.K. Machine Traders in Navi Mumbai, India. A vertical mill cuts metal with a rotating tool held in a vertical spindle.

It has a 425 mm x 2,000 mm table, an ISO 50 spindle taper and an 11 kW spindle motor. The milling head swivels ±45°, and the long table suits extended workpieces.

Key Features

• Milling head rotates from +45° to −45°
• Wide spindle speed range of 18–1,400 rpm
• Table feed range of 10–1,250 mm/min

Technical Specifications

• Model: TOS FA 5V
• Table size: 425 mm x 2,000 mm
• X travel: 1,300 mm
• Y travel: 425 mm
• Z travel: 475 mm
• Spindle taper: ISO 50
• Spindle speed: 18–1,400 rpm
• Table feed rate: 10–1,250 mm/min
• Spindle motor: 11 kW
• Milling head rotation: +45° to −45°

Applications

• Milling flat surfaces and slots in steel and cast parts
• Machining long workpieces on the extended table
• Angled cuts using the swivelling milling head
• General toolroom and workshop milling

Commercial Details

• Make: TOS
• Model: FA 5V
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size? The table measures 425 mm x 2,000 mm.
• What are the axis travels? X travel is 1,300 mm, Y is 425 mm and Z is 475 mm.
• What spindle taper and power does it have? It has an ISO 50 spindle taper and an 11 kW spindle motor.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm the control and electrics, any tooling, vices or accessories included, and loading and shipping arrangements.
