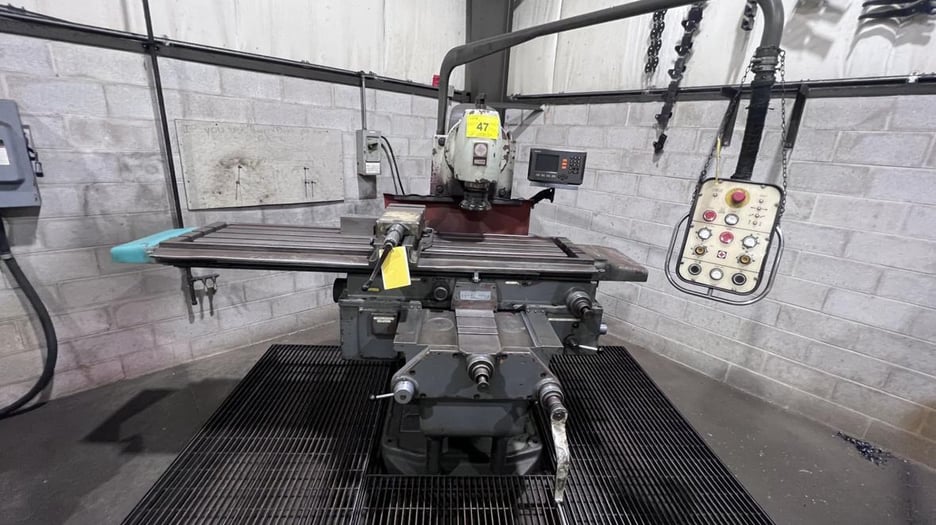

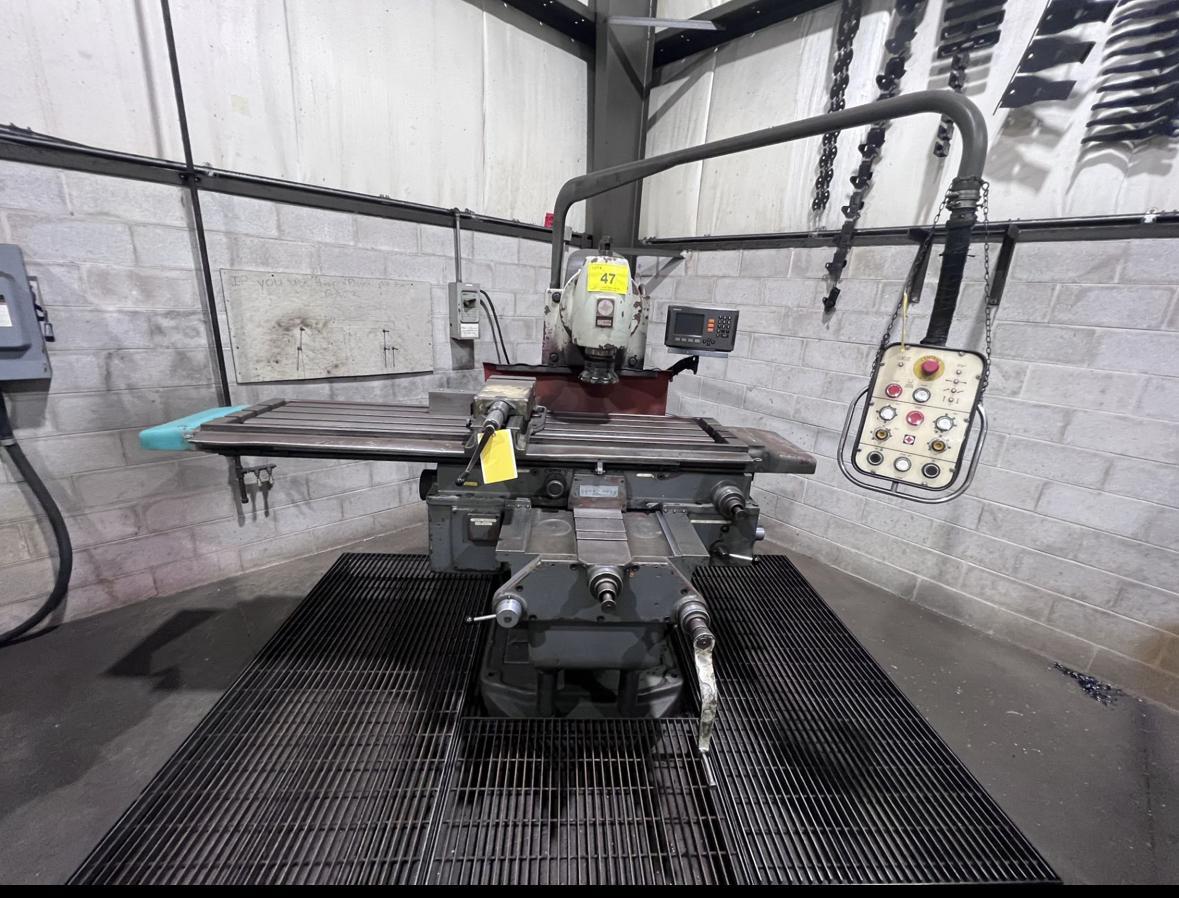

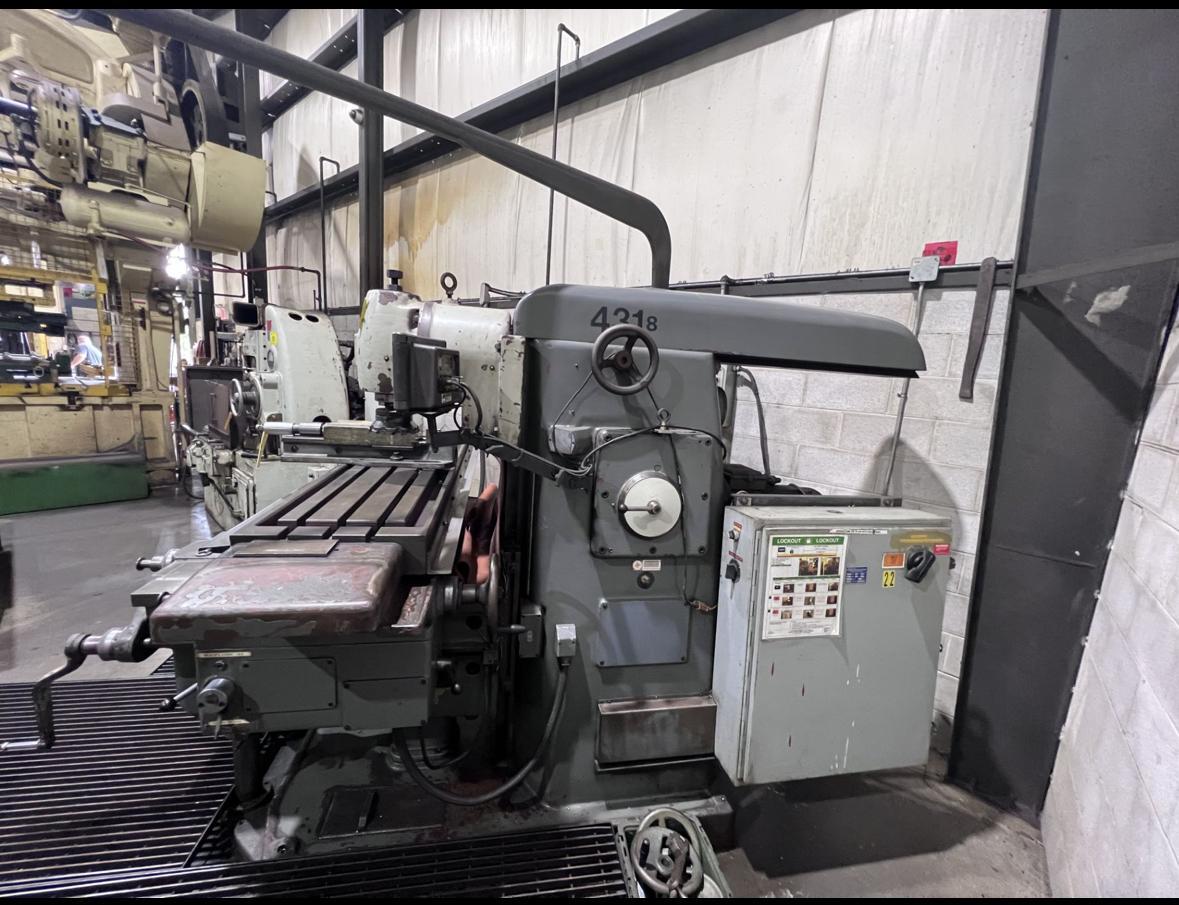

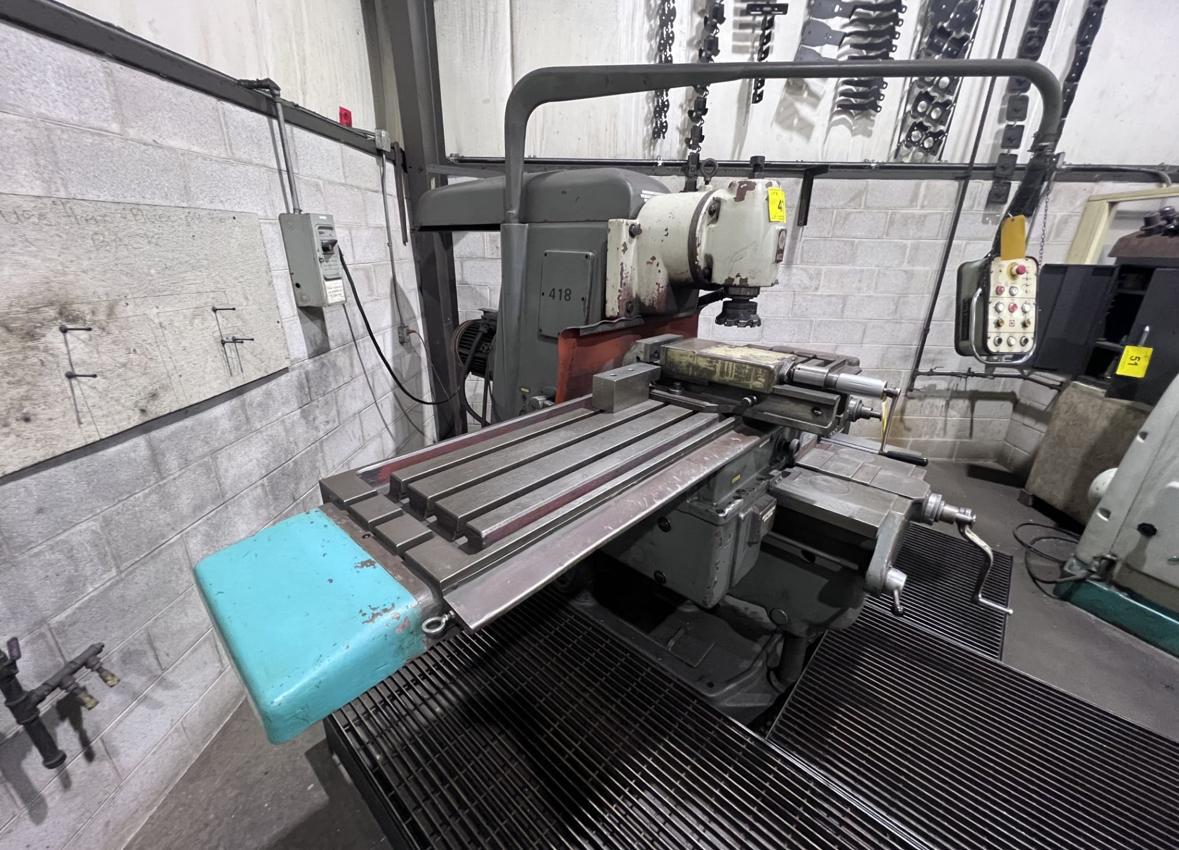

Used TOS FA5H Universal Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used TOS FA5H universal milling machine is available from A.K. Machine Traders in Navi Mumbai, India. A milling machine cuts metal parts to shape with a rotating cutter.

It has a 405 x 2000 mm table and an ISO 50 spindle taper. Spindle speeds run from 18 to 1400/min, driven by a 15 kW spindle motor, with a separate 2.4 kW feed motor.

Technical Specifications

• Model: TOS FA5H
• Table surface: 405 x 2000 mm
• Spindle taper: ISO 50
• Spindle speeds: 18–1400/min
• Spindle axis to table distance: 40–450 mm
• Spindle motor: 15 kW
• Feed motor: 2.4 kW
• Floor space: 2550 x 4200 mm
• Height: 1940 mm
• Weight: 4900 kg

Applications

• Milling flat surfaces, slots and profiles on metal parts
• General machining in workshops and toolrooms
• Machining larger components that suit a 2,000 mm long table

Commercial Details

• Make: TOS
• Model: FA5H
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size of the TOS FA5H? The table surface is 405 x 2000 mm.
• What spindle speeds and power does it have? Spindle speeds run from 18 to 1400/min, driven by a 15 kW spindle motor, with a 2.4 kW feed motor.
• How much floor space does it need? It needs 2550 x 4200 mm of floor space, is 1940 mm high and weighs 4900 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the state of the control and electrics, and how loading and shipping will be arranged.
