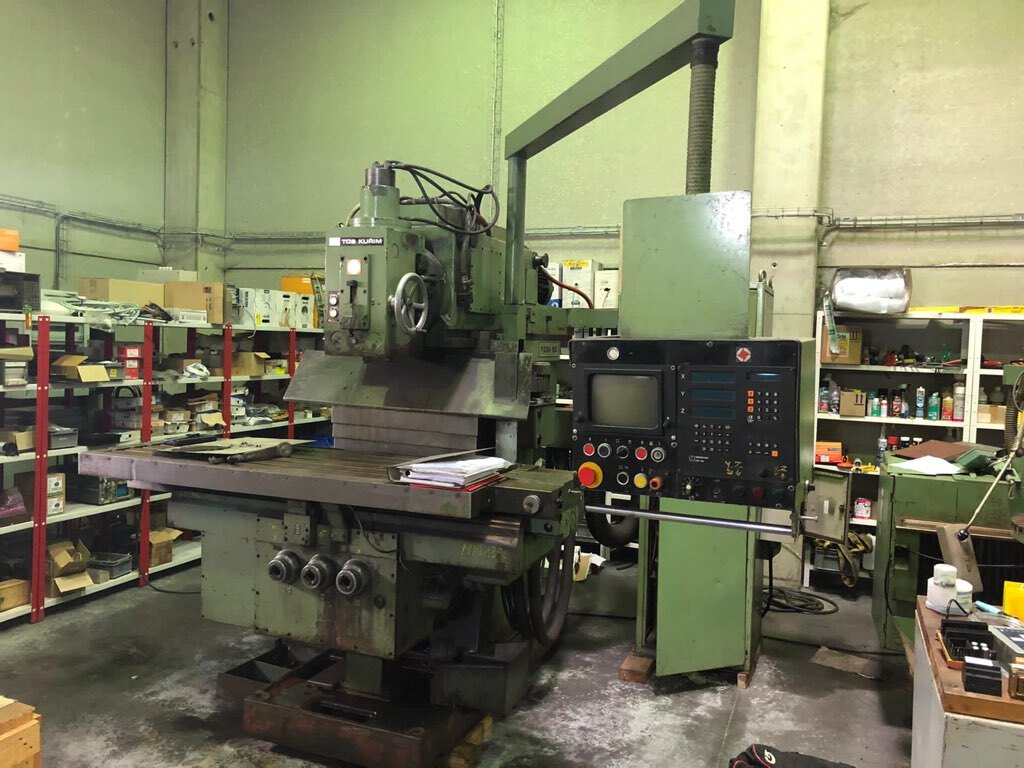

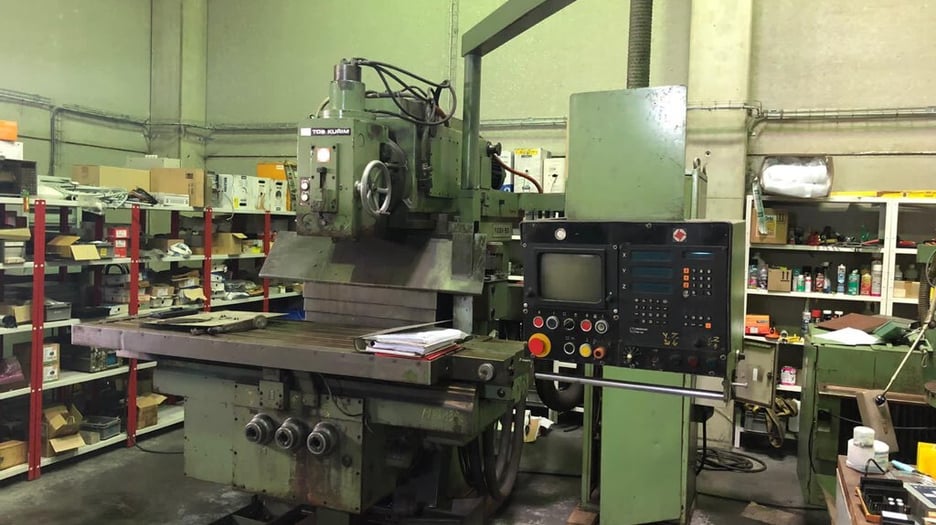

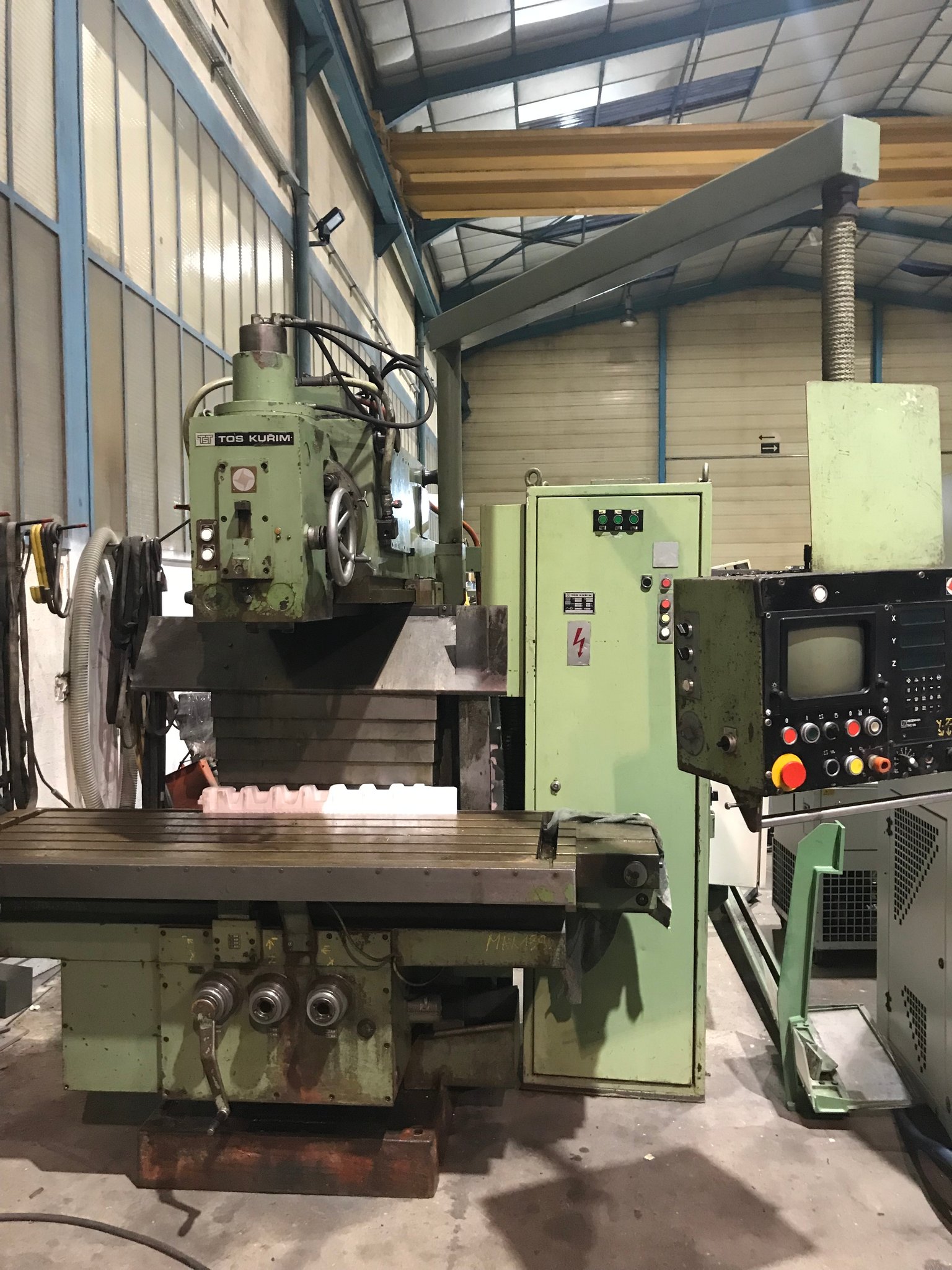

Used TOS FGS 50 Universal Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used TOS FGS 50 universal milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a milling machine for cutting metal parts to shape.

It offers 1,400 mm of X-axis travel, 630 mm in Y and 600 mm in Z, on a 1,800 × 630 mm table that takes loads up to 1,200 kg. A 20 kW spindle motor drives a 50 taper spindle at up to 1,800 rpm.

Technical Specifications

• Model: TOS FGS 50
• Machine type: Universal milling machine
• X axis travel: 1,400 mm
• Y axis travel: 630 mm
• Z axis travel: 600 mm
• Table length: 1,800 mm
• Table width: 630 mm
• Max load on table: 1,200 kg
• Spindle taper: 50
• Max spindle speed: 1,800 rpm
• Spindle motor power: 20 kW
• Overhauled: No
• Dimensions (L × W × H): 2,670 × 3,050 × 2,500 mm
• Weight: 6,000 kg

Applications

• Machining large metal components and housings
• Milling flat surfaces, slots and pockets
• Toolroom and general engineering work
• Heavy workpieces up to 1,200 kg on the table

Commercial Details

• Make: TOS
• Model: FGS 50
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the table size and load capacity? The table measures 1,800 × 630 mm and carries up to 1,200 kg.
• What are the axis travels? Travels are 1,400 mm in X, 630 mm in Y and 600 mm in Z.
• How much power and speed does the spindle have? The spindle has a 50 taper, a 20 kW motor and a maximum speed of 1,800 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which accessories, tooling and attachments are included, the type and condition of the control and electrics, and loading and shipping arrangements for its 6,000 kg weight.
