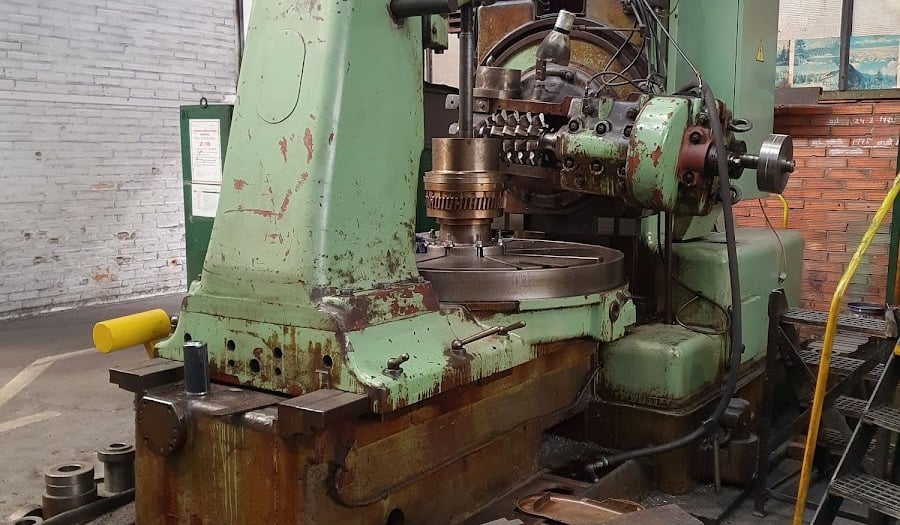

Used TOS FO 16 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

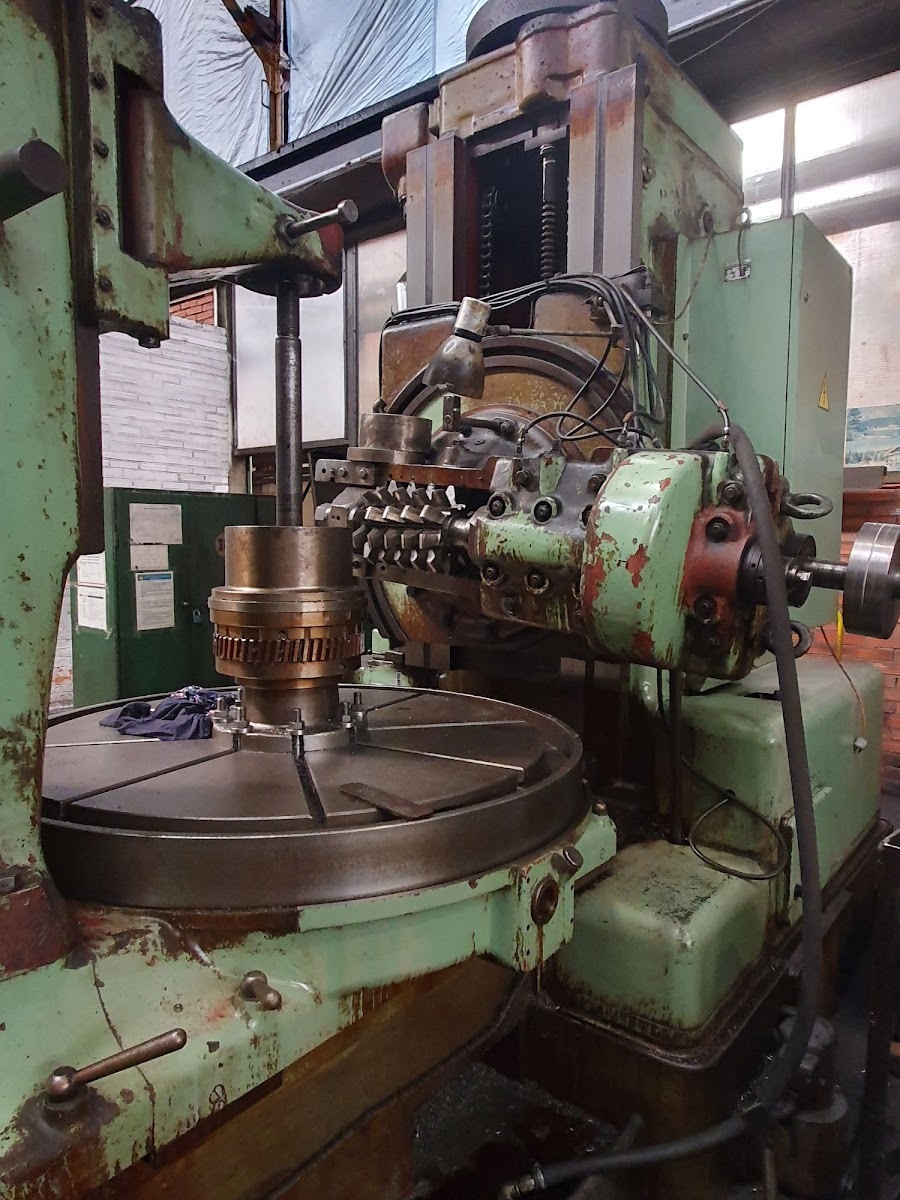

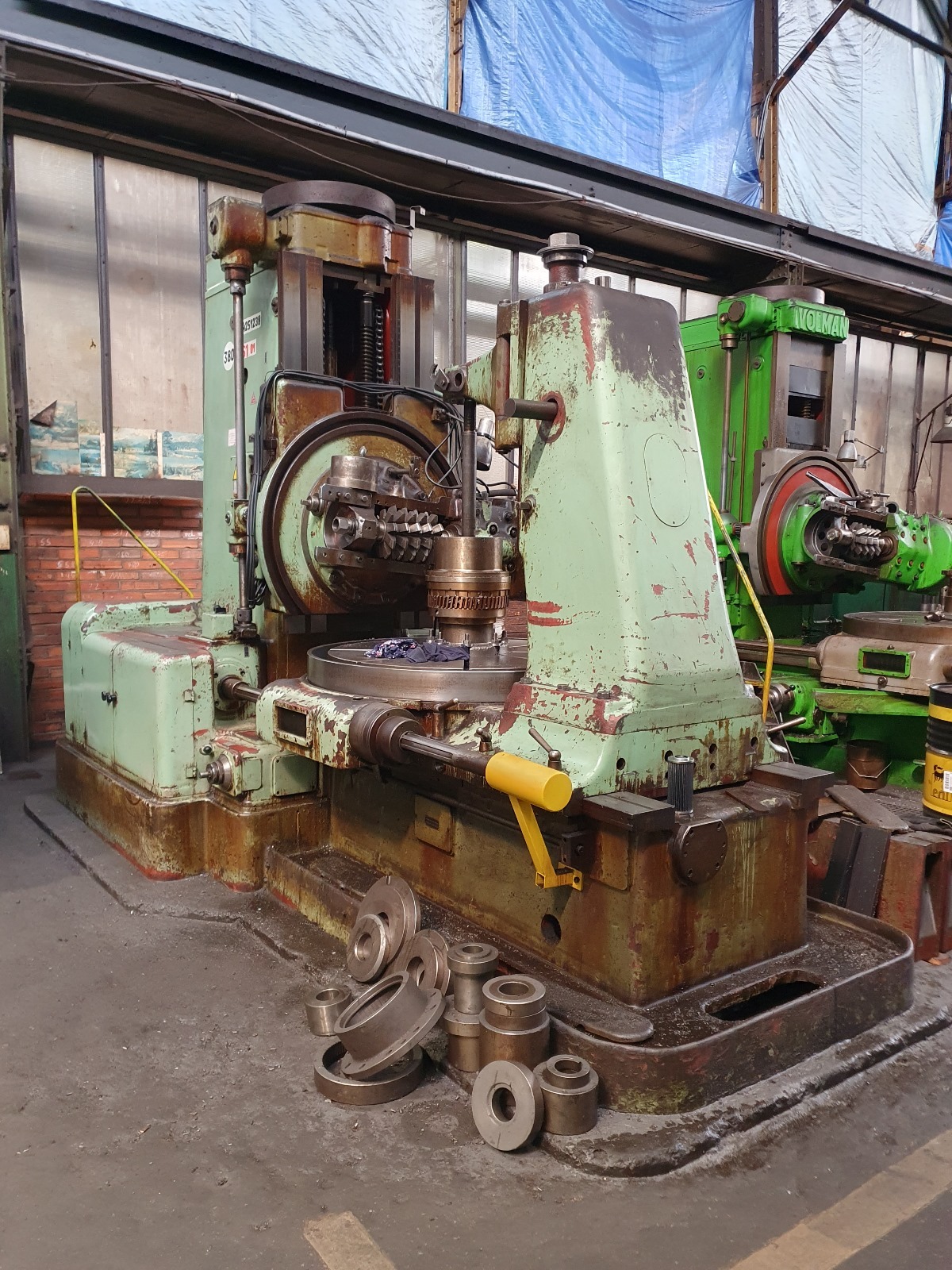

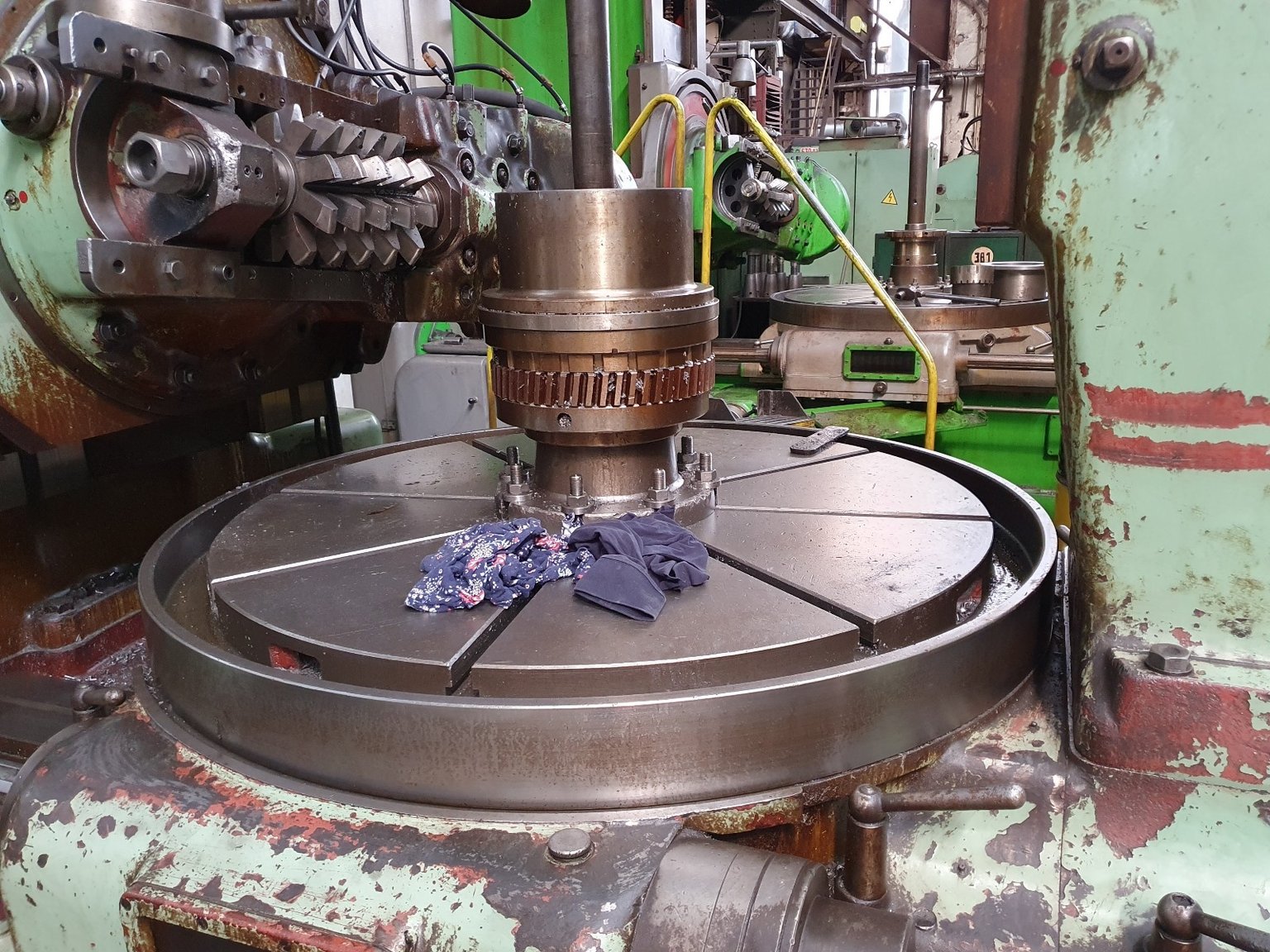

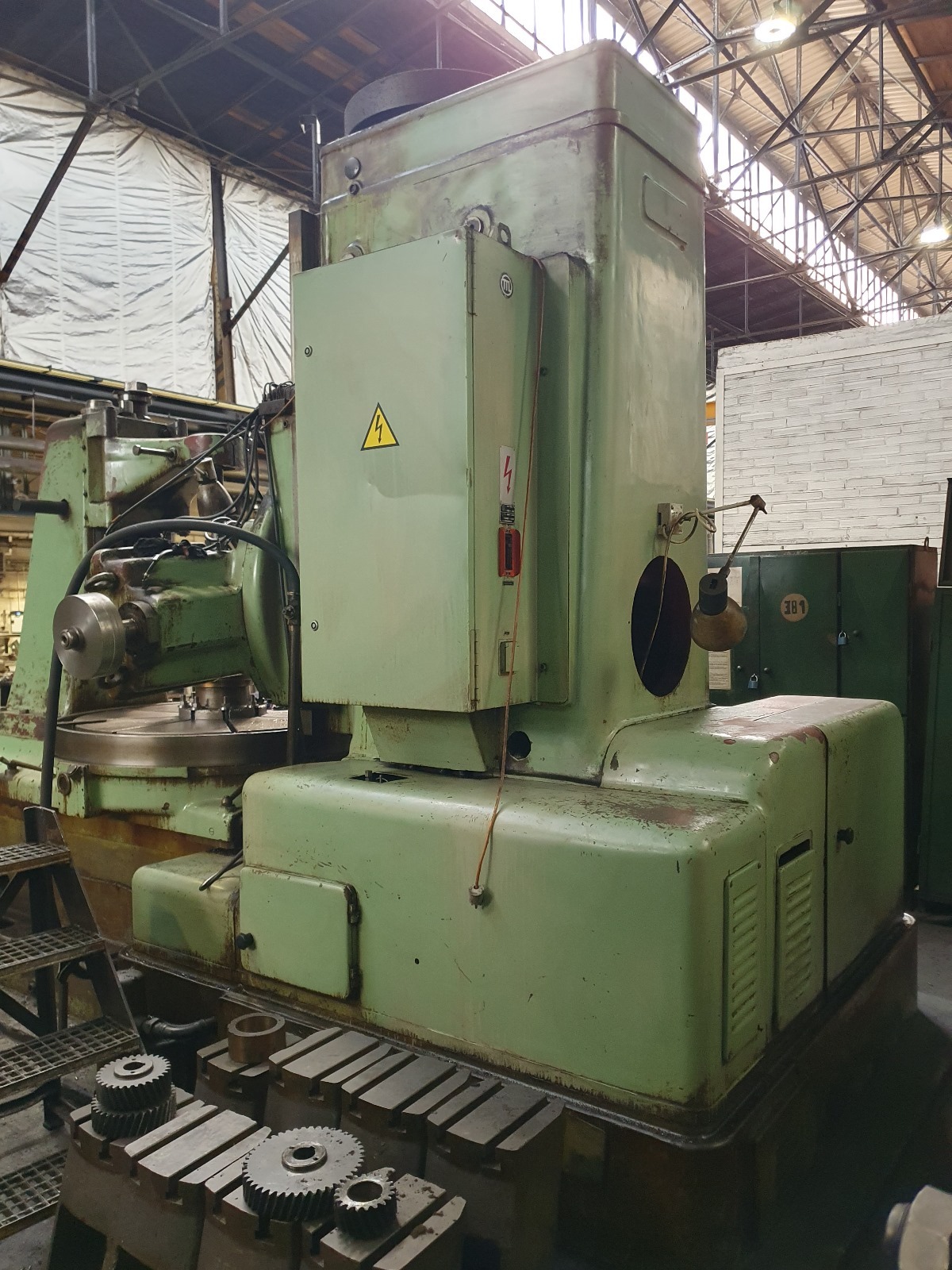

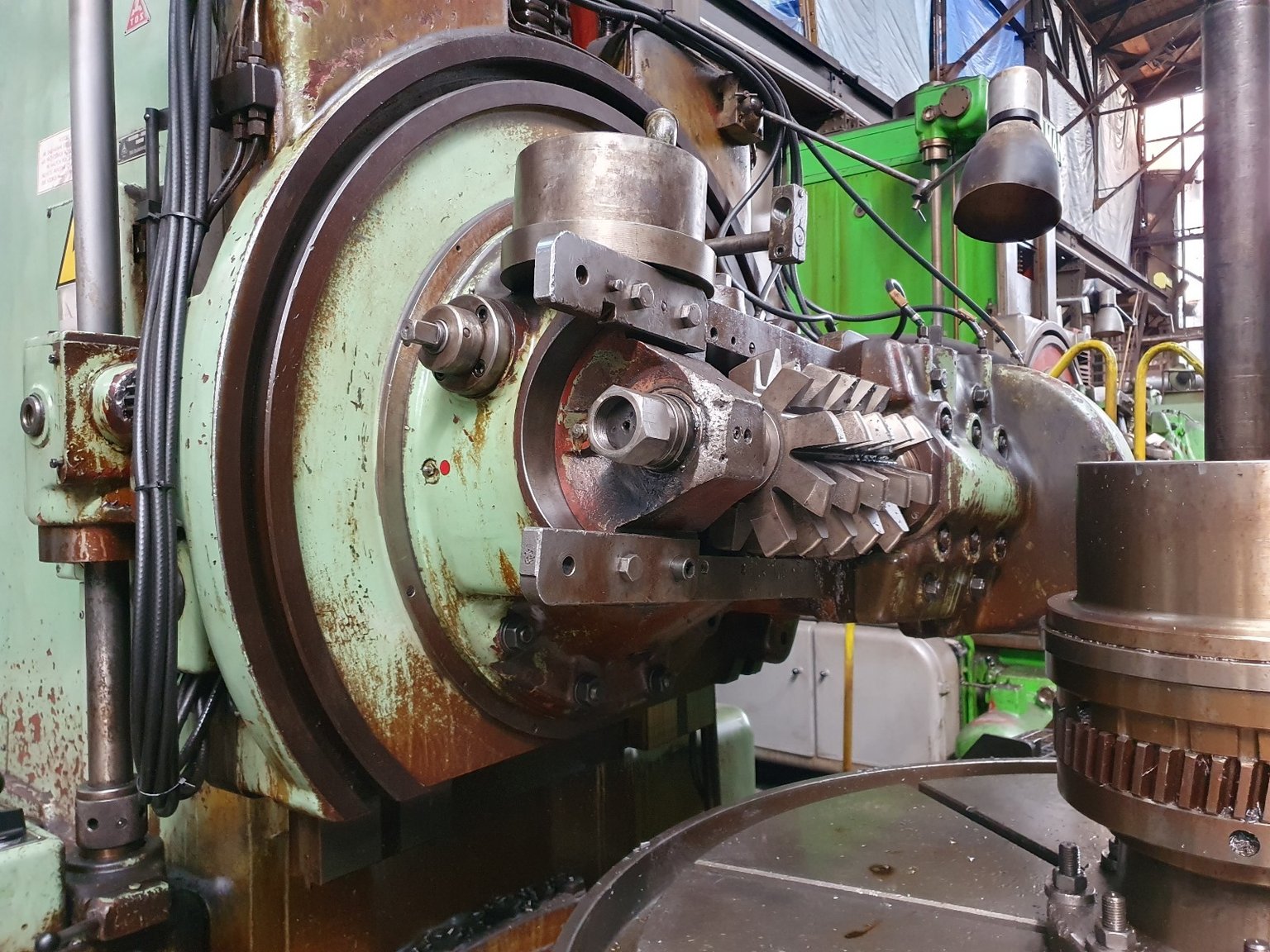

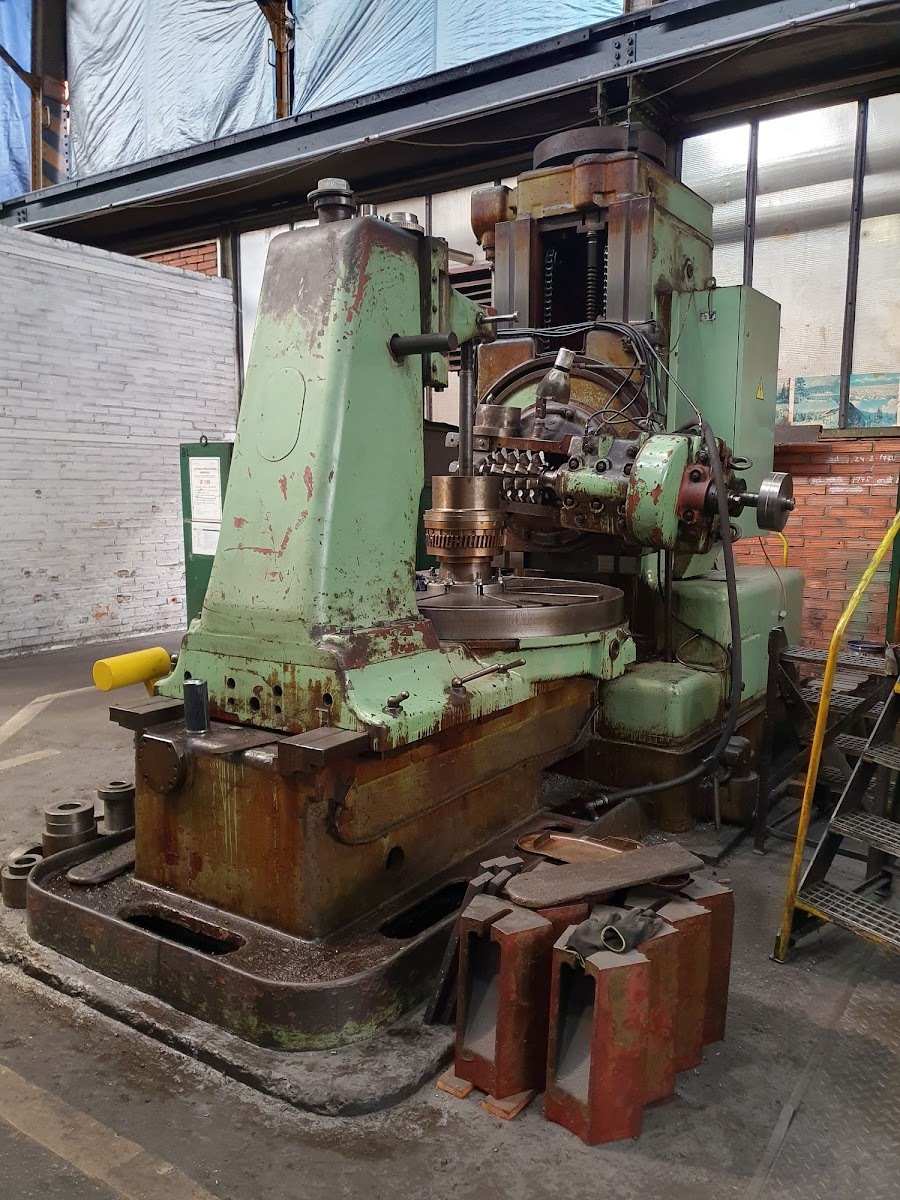

This used TOS FO 16 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear blanks with a rotating hob.

It handles large gears: wheel diameters up to 1,600 mm, gear widths up to 560 mm and modules up to 16, with workpieces weighing up to 7,000 kg.

Technical Specifications

• Model: TOS FO 16
• Max. wheel diameter: 1,600 mm
• Gear width: 560 mm
• Max. module: 16
• Max. workpiece weight: 7,000 kg
• Table surface area: 1,350 mm
• Table speed range: 16–80 rpm
• Axial feed: 0.05–1.5 mm/min
• Radial feed: 0.25–6 mm/min
• Tangential feed: 0.13–4 mm/min
• Electrics: 380 V, 50 Hz
• Total power requirement: 12 kW
• Machine weight: approx. 18 t
• Machine dimensions: approx. 4.3 x 2.0 x 3.2 m

Applications

• Large spur and helical gears
• Gears for heavy industrial gearboxes
• Gear wheels for mining, steel and cement plant drives
• Large gear production and repair work

Commercial Details

• Make: TOS
• Model: FO 16
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It takes wheels up to 1,600 mm in diameter, gear widths of 560 mm and modules up to 16.
• How heavy a workpiece can it carry? The maximum workpiece weight is 7,000 kg.
• What power supply does it need? It runs on 380 V, 50 Hz with a total power requirement of 12 kW.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which hobs, arbors, change gears and accessories are included, the condition of the electrics and controls, and loading and shipping arrangements for a machine of about 18 t.
