Used TOS H100A Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

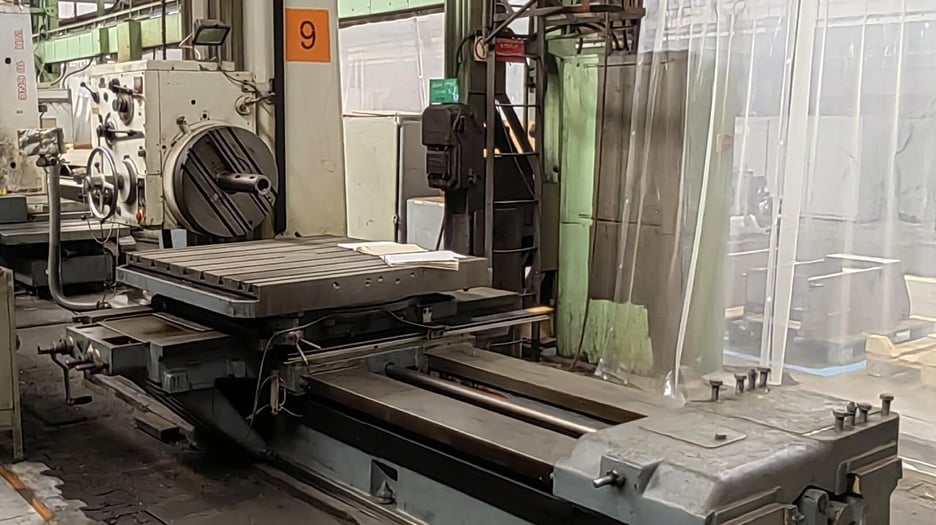

This used TOS H100A horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring machine bores and machines holes and faces in large workpieces using a horizontal spindle.

It has a Ø100 mm spindle with 900 mm of spindle travel, a 1,250 x 1,250 mm table and a 600 mm diameter facing head. Axis travels are 1,300 mm in X, 1,250 mm in Y and 1,250 mm in Z, on a bed 2,800 mm long.

Technical Specifications

• Model: TOS H100A
• Machine type: Horizontal boring machine
• Spindle diameter: Ø100 mm
• Cross (X) travel: 1,300 mm
• Vertical (Y) travel: 1,250 mm
• Longitudinal (Z) travel: 1,250 mm
• Spindle (W) travel: 900 mm
• Table size: 1,250 x 1,250 mm
• Bed length: 2,800 mm
• Facing head diameter: 600 mm

Applications

• Boring large holes in housings and casings
• Machining gearbox and engine blocks
• Facing and milling large fabricated or cast components
• Heavy machinery and general engineering parts

Commercial Details

• Make: TOS
• Model: H100A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size is the table on the TOS H100A? The table measures 1,250 x 1,250 mm.
• What are the axis travels? Travels are 1,300 mm in X, 1,250 mm in Y, 1,250 mm in Z and 900 mm for the spindle (W).
• What spindle and facing head does it have? It has a Ø100 mm spindle and a facing head 600 mm in diameter.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the type and condition of the control and electrics, and loading and shipping arrangements.
