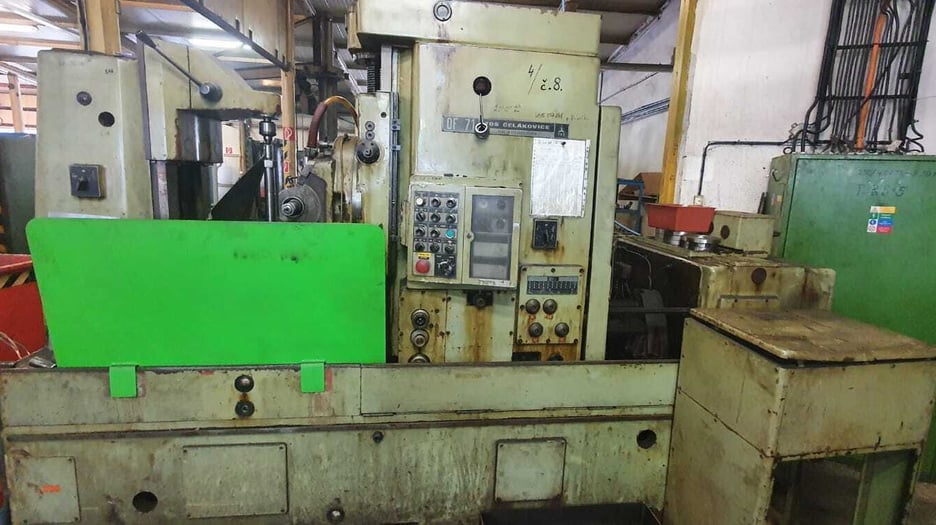

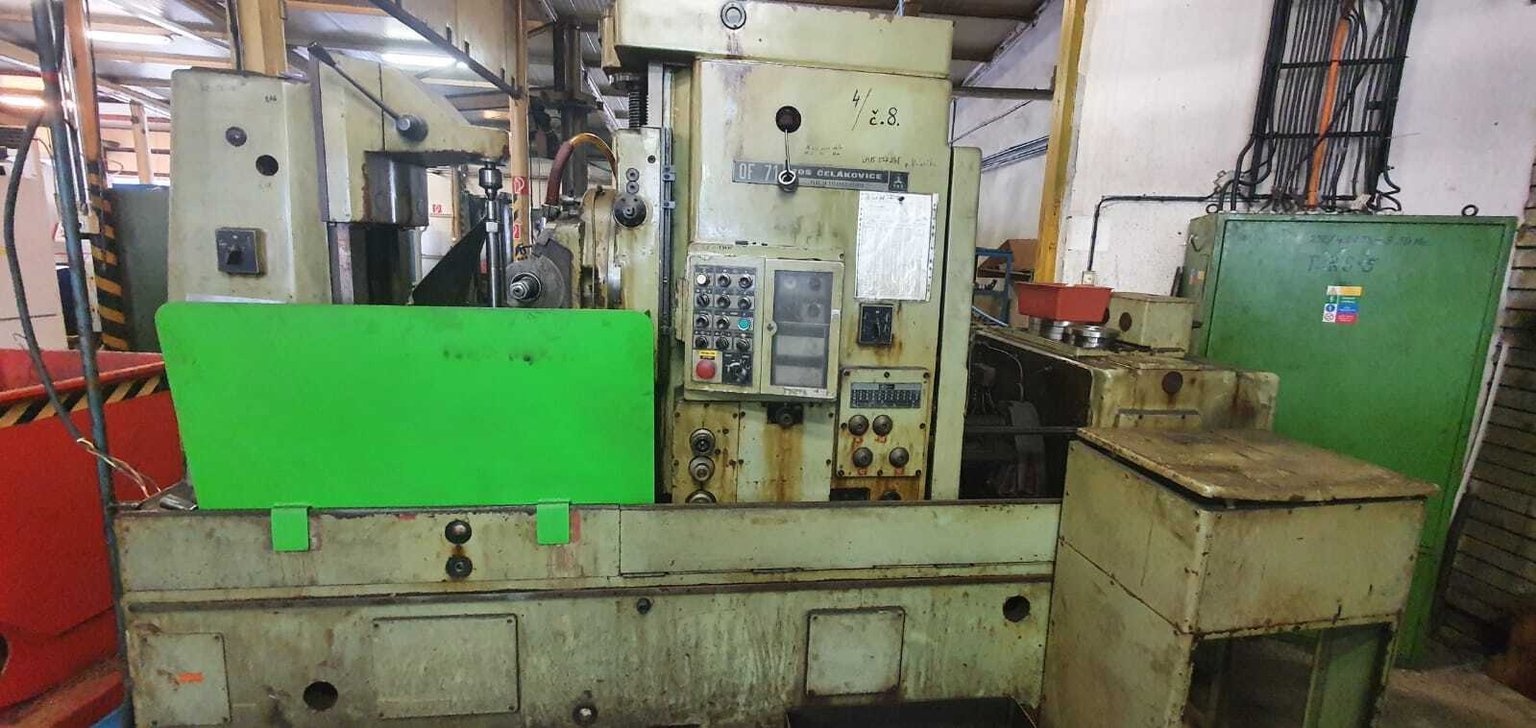

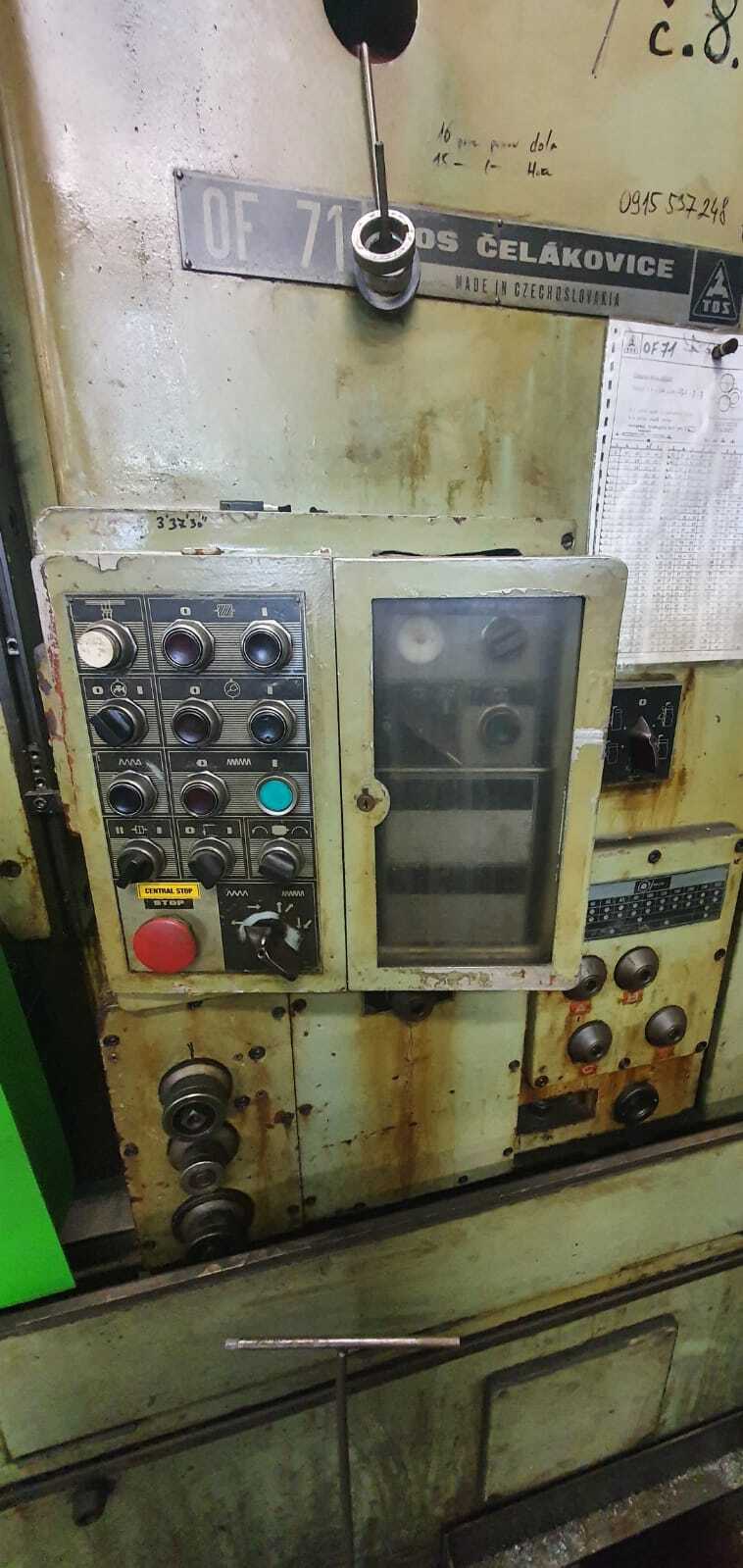

Used TOS OF71 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used TOS OF71 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts teeth into gear blanks.

It handles gears up to module 7 and up to 710 mm in diameter without the tailstock, or 500 mm with the tailstock fitted. It takes up to 300 teeth and carries a table load of 700 kg.

Key Features

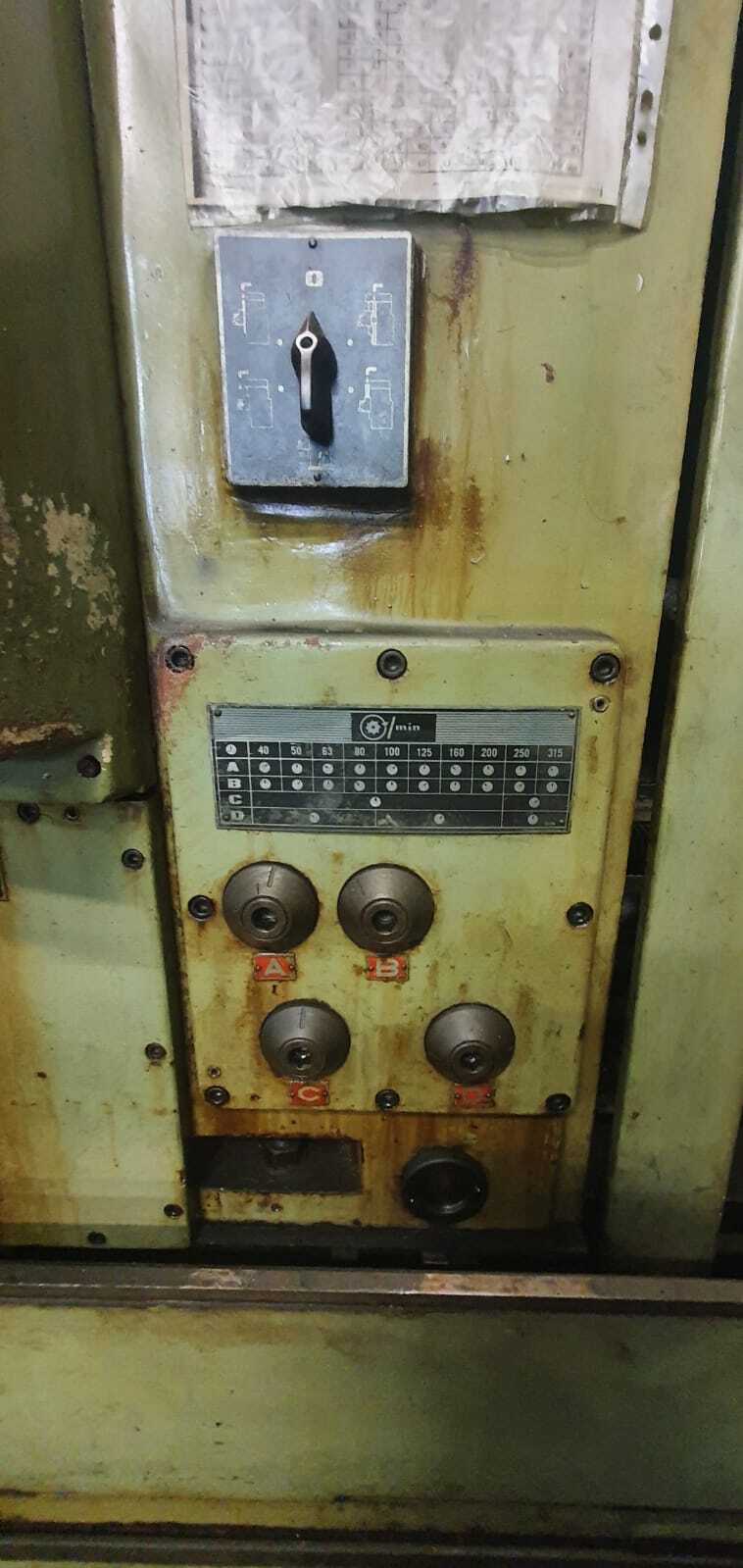

• Change gears

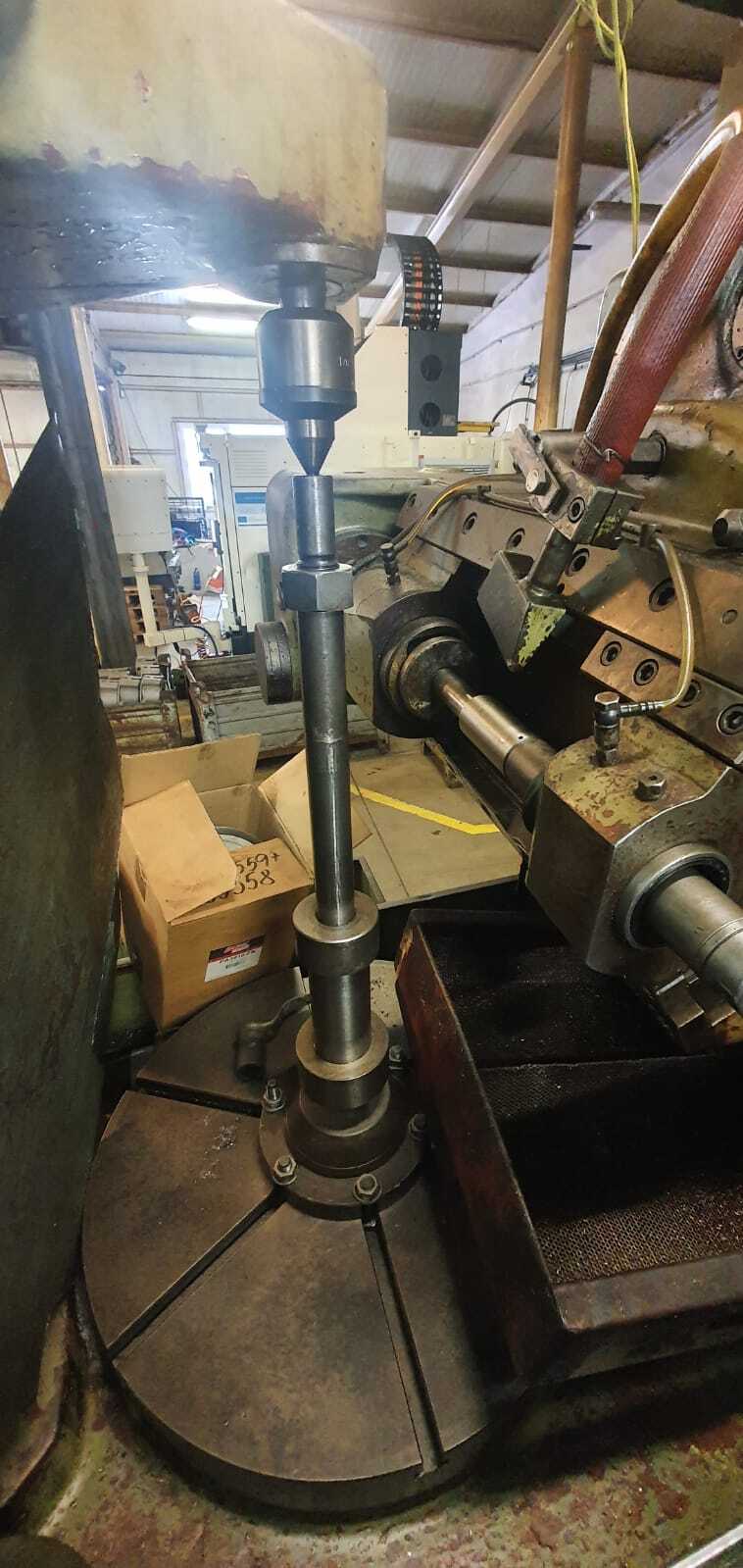

• Arbors included
• Tailstock option for supporting the workpiece

Technical Specifications

• Model: TOS OF71
• Maximum module: 7
• Maximum gear diameter without tailstock: 710 mm
• Maximum gear diameter with tailstock: 500 mm
• Maximum number of teeth: 300
• Gear height: 355 mm
• Table: 630 mm
• Table load: 700 kg
• Table bore: 120 mm, depth 750 mm
• Arbor diameter: 40 mm
• Total power requirement: 16 kW
• Weight: 6,800 kg

Applications

• Cutting spur and helical gears
• Gearbox and transmission components
• General engineering and workshop gear production
• Gear manufacture for machinery and drives

Commercial Details

• Make: TOS
• Model: OF71
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It cuts gears up to 710 mm in diameter without the tailstock, or 500 mm with it, up to module 7 and 300 teeth.
• What power does it need? The total power requirement is 16 kW.
• How heavy is it? The machine weighs 6,800 kg, so plan for suitable lifting and transport.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which change gears and arbors are included, the condition of the electrics and controls, and loading and shipping arrangements.
