Used TOS Olomouc FGU 32 Universal Knee-Type Milling Machine | A.K. Machine Traders, Navi Mumbai, India

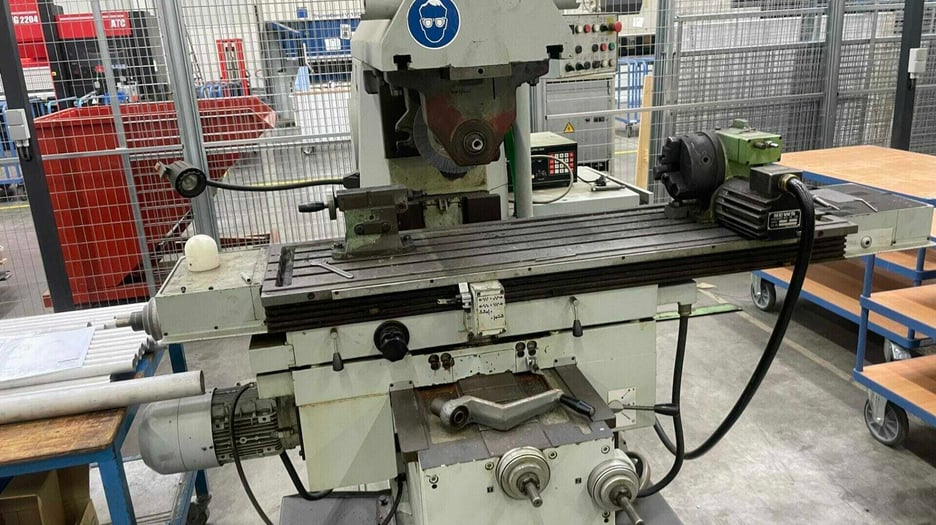

This used TOS Olomouc FGU 32 universal knee-type milling machine with 4th axis is available from A.K. Machine Traders in Navi Mumbai, India. A knee-type milling machine cuts metal parts with a rotating cutter while the workpiece is moved on a table.

It has a 320×1,250 mm table that carries up to 300 kg, with 850 mm longitudinal travel and 275 mm cross travel. A 5.5 kW motor drives the spindle, and the machine weighs 2,615 kg. It was built in 2002.

Key Features

• Universal knee-type design
• Supplied with a 4th axis

Technical Specifications

• Model: FGU 32
• Year: 2002
• Table size: 320×1,250 mm
• Maximum table load: 300 kg
• Longitudinal table travel: 850 mm
• Table cross travel: 275 mm
• Vertical support adjustment: 420 mm
• Spindle axis to table surface (min–max): 0–420 mm
• Spindle speed: 1,400 rpm, 12 speeds
• Spindle motor power: 5.5 kW
• Machine weight: 2,615 kg

Applications

• Milling flat surfaces, slots and profiles on metal parts
• Toolroom and workshop machining
• Small-batch and repair work
• Machining of angled or indexed features using the 4th axis

Commercial Details

• Make: TOS Olomouc
• Model: FGU 32
• Year: 2002
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and load capacity? The table measures 320×1,250 mm and takes a maximum load of 300 kg.
• How much travel does it have? Table travel is 850 mm longitudinally and 275 mm across, with 420 mm of vertical support adjustment.
• What spindle power and speed does it have? It has a 5.5 kW spindle motor and 12 spindle speeds, with a top speed of 1,400 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, what tooling and 4th axis accessories are included, the condition of the electrics, and loading and shipping arrangements for its 2,615 kg weight.
