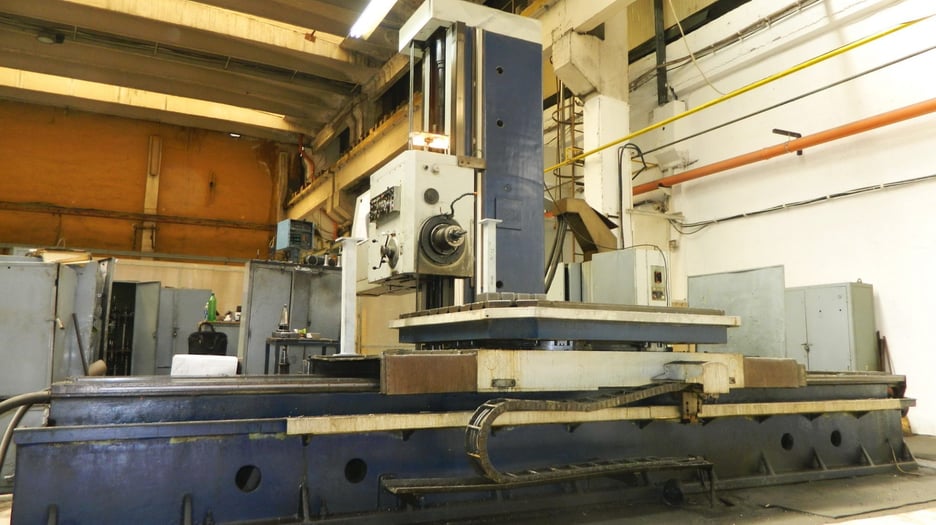

Used TOS Varnsdorf WHN 13 A Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used TOS Varnsdorf WHN 13 A is available from A.K. Machine Traders in Navi Mumbai, India. It is a table-type machine with a 130 mm spindle for machining large workpieces.

It has travels of 3,500 mm in X, 2,000 mm in Y and 1,250 mm in Z, plus a 600 mm W-axis. The 1,800 x 1,800 mm table rotates through 360°, and the machine weighs approximately 40 t.

Key Features

• Heidenhain digital readout on 3 axes plus the B axis (table rotation)
• Ball screws on the X and Z axes
• Trapezoidal screw on the Y axis
• 360° table rotation as the B axis

Technical Specifications

• Model: WHN 13 A
• Spindle diameter: 130 mm
• Spindle taper: ISO 50
• X travel: 3,500 mm
• Y travel: 2,000 mm
• Z travel: 1,250 mm
• W travel: 600 mm
• B axis: 360°
• Table size: 1,800 x 1,800 mm
• Table rotation: 360°
• Control: Heidenhain DRO, 3 axes + B axis
• Machine weight: Approx. 40 t

Applications

• Machining large housings and casings
• Boring and milling heavy fabrications
• Large frames and machine bases
• Heavy engineering and general machinery components

Commercial Details

• Make: TOS Varnsdorf
• Model: WHN 13 A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? X is 3,500 mm, Y is 2,000 mm, Z is 1,250 mm and the W-axis is 600 mm.
• How large is the table and can it rotate? The table measures 1,800 x 1,800 mm and rotates 360° as the B axis.
• What control does it have? It has a Heidenhain digital readout on three axes plus the B axis.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the condition of the electrics and readout, and loading and shipping arrangements for a machine of about 40 t.
