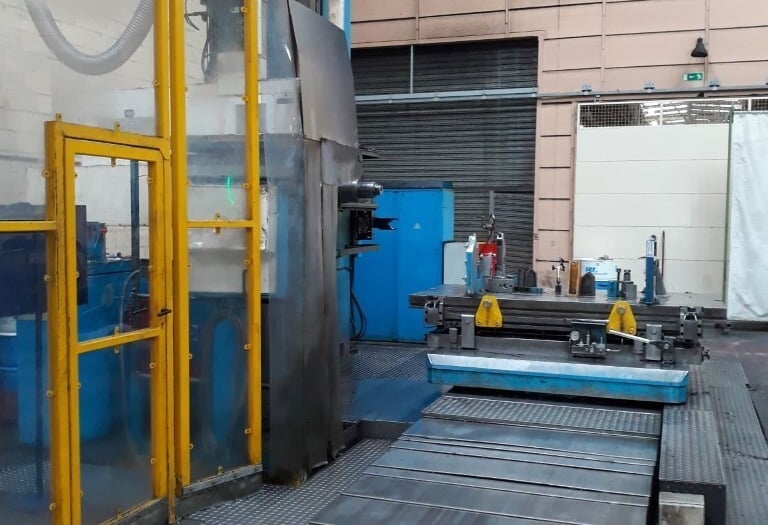

Used TOS Varnsdorf WHQ 13 CNC Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used TOS Varnsdorf WHQ 13 CNC horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring machine machines large workpieces with a horizontal spindle.

It has an ISO 50 spindle of Ø130 mm, driven by 37 kW and running up to 3,000 rpm. Travels are 3,500 mm in X, 2,500 mm in Y and 1,250 mm in Z, with 800 mm of W-axis travel. The table measures 2,200 x 1,800 mm and carries up to 12,000 kg.

Technical Specifications

• Model: TOS Varnsdorf WHQ 13
• Control: CNC
• Spindle taper: ISO 50
• Spindle diameter: Ø130 mm
• Spindle power: 37 kW
• Spindle speed: 3,000 rpm
• X travel: 3,500 mm
• Y travel: 2,500 mm
• Z travel: 1,250 mm
• W travel: 800 mm
• Table size: 2,200 x 1,800 mm
• Table load capacity: 12,000 kg
• Feed rate X, Y, Z: 6,000 mm/min
• Rapid traverse: 8,000 mm/min

Applications

• Machining large housings and gearbox casings
• Boring and milling heavy fabrications and castings
• Machine frames and bases
• Large engineering components needing accurate bores

Commercial Details

• Make: TOS Varnsdorf
• Model: WHQ 13
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and load capacity? The table is 2,200 x 1,800 mm and takes up to 12,000 kg.
• What are the axis travels? X is 3,500 mm, Y is 2,500 mm, Z is 1,250 mm and W is 800 mm.
• What spindle does it have? It has an ISO 50 spindle of Ø130 mm, with 37 kW and speeds up to 3,000 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, inspection arrangements, which tooling and accessories are included, the control type and electrical details, and loading and shipping options.
