Used TOS VTL SC 27 Vertical Turret Lathe | A.K. Machine Traders, Navi Mumbai, India

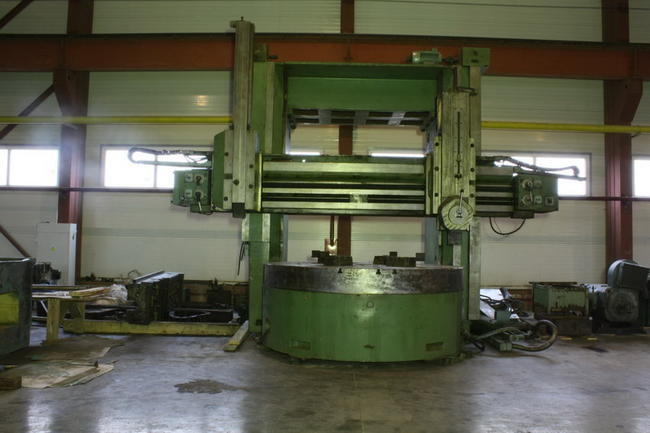

This used TOS VTL SC 27 vertical turret lathe is available from A.K. Machine Traders in Navi Mumbai, India. It turns large, heavy workpieces held on a horizontal rotating table.

It has a 2,500 mm table, a 2,630 mm swing and takes workpieces up to 1,900 mm high and 15,000 kg. Two vertical heads and a side head are driven by a 60 kW main motor.

Key Features

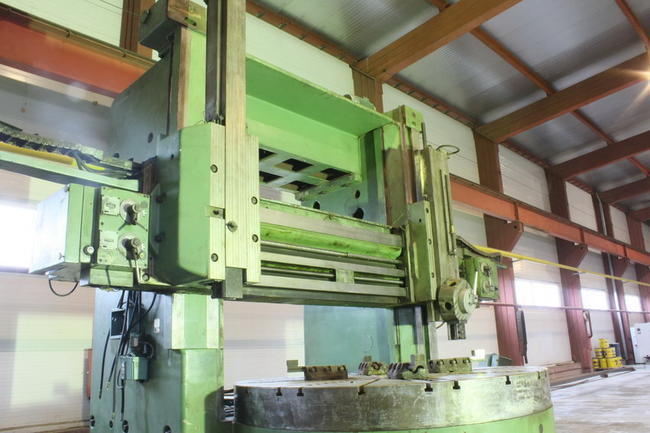

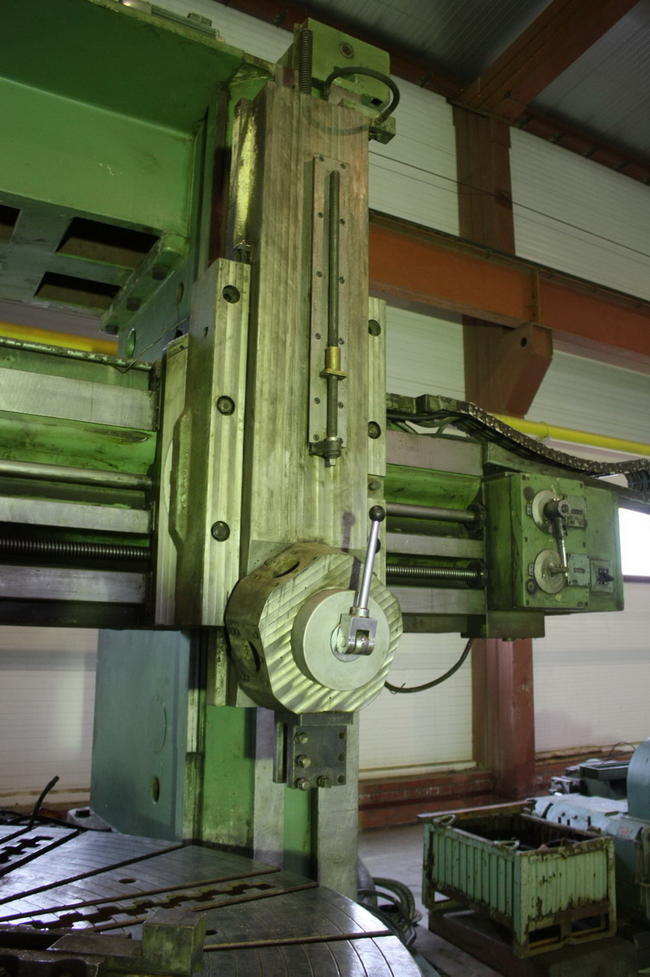

• Right head, left head and side head for multiple tooling positions
• Table speed range of 1.24–112 rpm
• Cross rail with 1,600 mm vertical travel

Technical Specifications

• Model: TOS VTL SC 27
• Swing: 2,630 mm
• Swing with side head: 2,600 mm

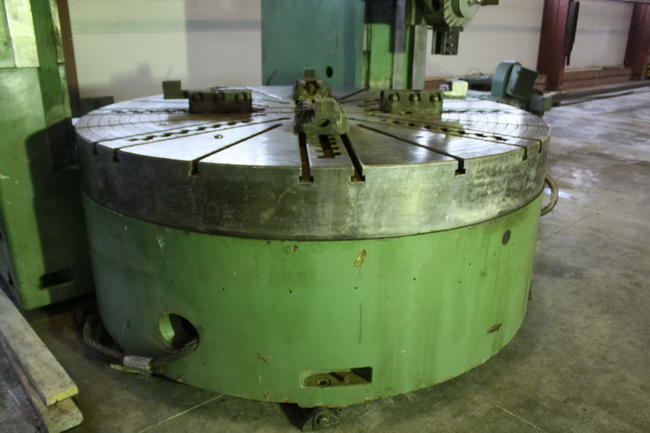

• Table diameter: 2,500 mm
• Max working height: 1,900 mm
• Table speed range: 1.24–112 rpm
• Max workpiece weight: 15,000 kg
• Right head vertical stroke: 760 mm
• Left head vertical stroke: 1,200 mm
• Side head horizontal stroke: 900 mm
• Side head vertical stroke: 1,800 mm

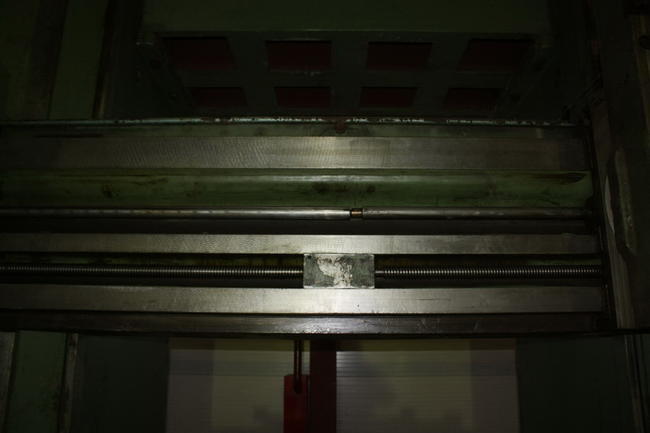

• Cross rail vertical travel: 1,600 mm
• Main motor: 60 kW
• Length: 4,800 mm
• Width: 4,800 mm
• Height: 5,000 mm
• Machine weight: 38,850 kg

Applications

• Turning large discs, rings and flanges
• Machining heavy housings and casings
• Large wheels, rotors and hubs
• Heavy engineering and power generation components

Commercial Details

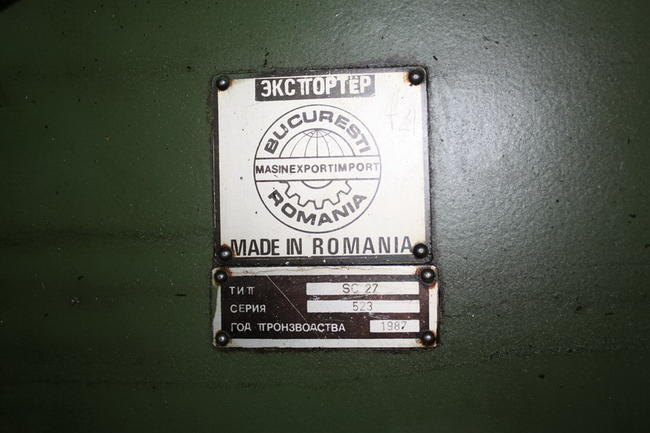

• Make: TOS
• Model: VTL SC 27
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest workpiece it takes? It takes workpieces up to 2,630 mm swing, 1,900 mm high and 15,000 kg.
• How much space and lifting capacity are needed? The machine measures 4,800 × 4,800 × 5,000 mm and weighs 38,850 kg.
• What is the table speed range? The table runs from 1.24 to 112 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which tooling and accessories are included, the condition of the control and electrics, and loading and shipping arrangements.
