Used TOS W100 Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

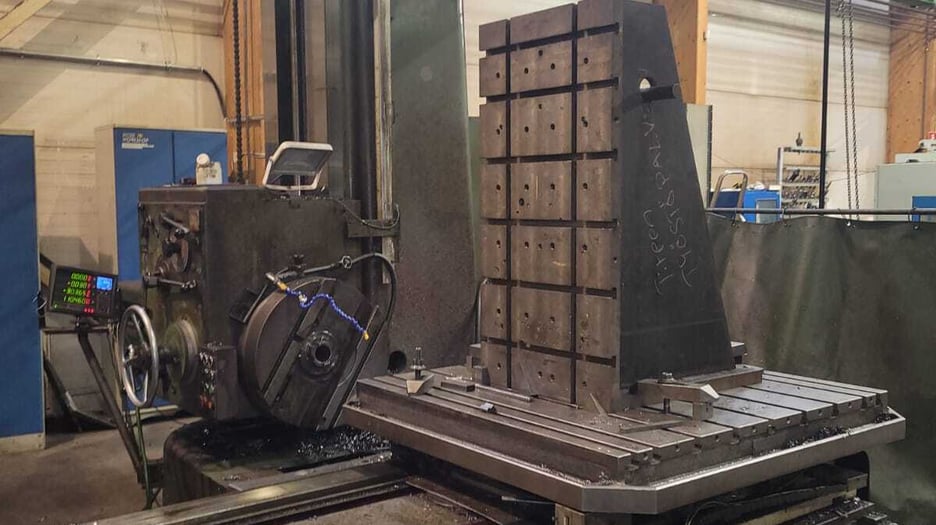

This used TOS W100 horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring machine bores and machines large workpieces with a horizontal spindle.

It has a 100 mm spindle running at 7.1–1,120 rpm and a 1,250 × 1,250 mm rotary table that carries up to 3 t. Travels are 1,600 mm in X, 1,120 mm in Y, 1,250 mm in Z and 900 mm in W. A facing chuck of 600 mm diameter with a 210 mm slide travel handles facing work up to 900 mm diameter.

Key Features

• Rotary table for presenting different faces of a workpiece
• Facing chuck with slide for facing operations

Technical Specifications

• Model: TOS W100
• Spindle size: 100 mm
• Spindle speeds: 7.1–1,120 rpm
• X-axis travel: 1,600 mm
• Y-axis travel: 1,120 mm
• Z-axis travel: 1,250 mm
• W-axis travel: 900 mm
• Table size: 1,250 × 1,250 mm
• Table type: Rotary
• Max table load: 3 t
• Facing chuck diameter: 600 mm
• Facing chuck slide travel: 210 mm
• Max facing diameter: 900 mm
• Facing chuck speed range: 7.1–224 rpm
• Total power: 15 kW
• Dimensions: 6,020 × 3,000 × 3,500 mm
• Weight: 14,000 kg

Applications

• Boring large housings and casings
• Machining heavy fabricated and cast components
• Facing and boring of machine frames and gearboxes
• General toolroom and job-shop machining of large parts

Commercial Details

• Make: TOS
• Model: W100
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle size and speed range? The spindle is 100 mm and runs at 7.1–1,120 rpm.
• How heavy a workpiece can the table take? The 1,250 × 1,250 mm rotary table carries up to 3 t.
• What are the axis travels? X is 1,600 mm, Y is 1,120 mm, Z is 1,250 mm and W is 900 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which accessories and tooling are included, the control and electrical details, and the loading and shipping arrangements for a machine of about 14,000 kg.
