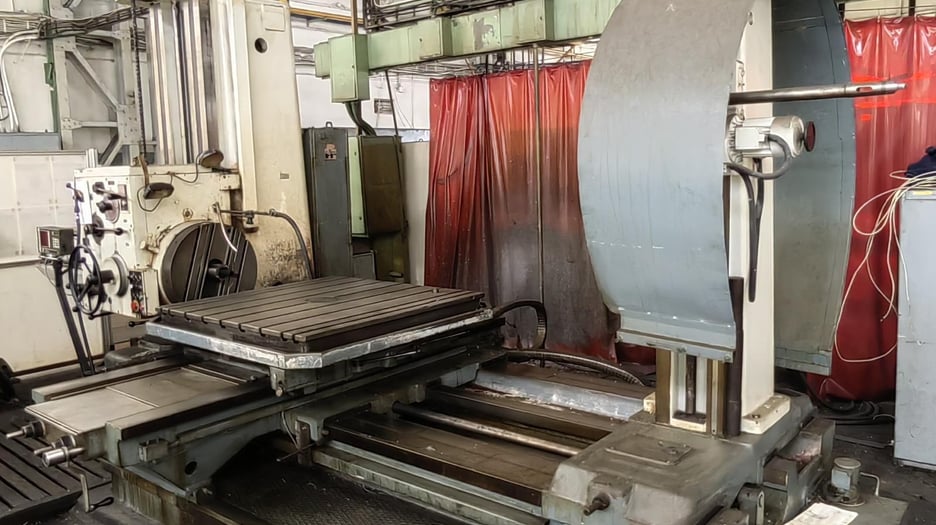

Used TOS W100A Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used TOS W100A horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. It bores and faces large workpieces held on its table.

It has a 4″ spindle with a Morse 5 taper, 23 spindle speeds from 7.1 to 1120 RPM and a 24″ faceplate with 16 speeds from 7.1 to 224 RPM. The main drive is 15 HP and the table takes loads up to 6614 LBS.

Technical Specifications

• Model: TOS W100A
• Spindle diameter: 4″
• Spindle taper: Morse 5
• Spindle out travel: 35.43″
• Max. face turning diameter: 35.43″
• Spindle speed range: 7.1–1120 RPM (23 speeds)
• Faceplate speed range: 7.1–224 RPM (16 speeds)
• Faceplate diameter: 24″
• Clamping surface: 49.21″ x 49.21″
• Travels: 62.99″
• Z axis: 49.21″
• Y axis: 44.09″
• Max. table load: 6614 LBS
• Main drive: 15 HP
• Boring bar support drive: 0.55 kW, 0.75 HP
• Overall dimensions: 234″ x 118″ x 118″
• Floor space (L x W): 264″ x 118″
• Overall weight: 30,865 LBS

Applications

• Boring large holes in heavy castings and fabrications
• Face turning of large flanges and housings
• Machining of gearbox and machinery housings
• General heavy engineering and toolroom work

Commercial Details

• Make: TOS
• Model: W100A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle size and speed range? The spindle is 4″ in diameter with a Morse 5 taper and 23 speeds from 7.1 to 1120 RPM.
• How large a workpiece can the table carry? The table has a 49.21″ x 49.21″ clamping surface and a maximum load of 6614 LBS.
• What is the machine's weight and footprint? It weighs 30,865 LBS and needs a floor space of 264″ x 118″.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, an inspection option, the accessories and tooling included, the condition of the control and electrics, and how loading and shipping will be handled.
