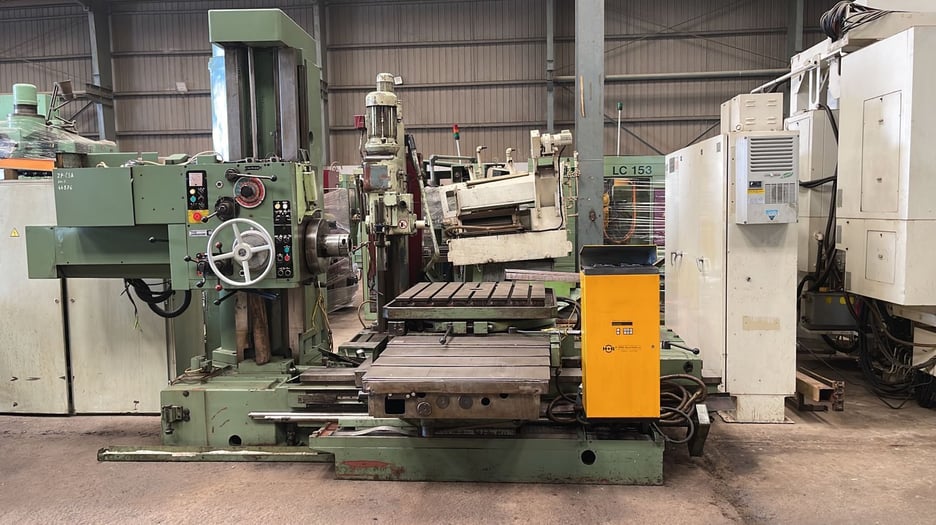

Used TOS W75 Horizontal Boring Mill | A.K. Machine Traders, Navi Mumbai, India

This used TOS W75 horizontal boring mill is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring mill machines and bores workpieces using a horizontally mounted spindle.

It has a 75 mm spindle with an ISO 40 taper and speeds of 18–1,800 rpm. The table measures 950 x 950 mm and carries up to 3,000 kg, and total installed power is 11 kW.

Technical Specifications

• Model: TOS W75
• Spindle size: 75 mm
• Spindle speeds: 18–1,800 rpm
• Spindle taper: ISO 40
• X-axis travel: 1,250 mm
• Y-axis travel: 900 mm
• Z-axis travel: 950 mm
• W-axis travel: 560 mm
• Table size: 950 x 950 mm
• Maximum table load: 3,000 kg
• Total power: 11 kW
• Dimensions: 4,522 x 3,050 x 2,800 mm
• Weight: 10,000 kg

Applications

• Boring and machining large housings and casings
• Machining gearbox and engine components
• Heavy fabrications and machine frames
• General engineering and toolroom machining

Commercial Details

• Make: TOS
• Model: W75
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What spindle does the TOS W75 have? It has a 75 mm spindle with an ISO 40 taper, running at 18–1,800 rpm.
• What are the axis travels? X is 1,250 mm, Y is 900 mm, Z is 950 mm and W is 560 mm.
• How heavy a workpiece can the table take? The 950 x 950 mm table carries up to 3,000 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and the loading and shipping arrangements for a machine weighing 10,000 kg.
