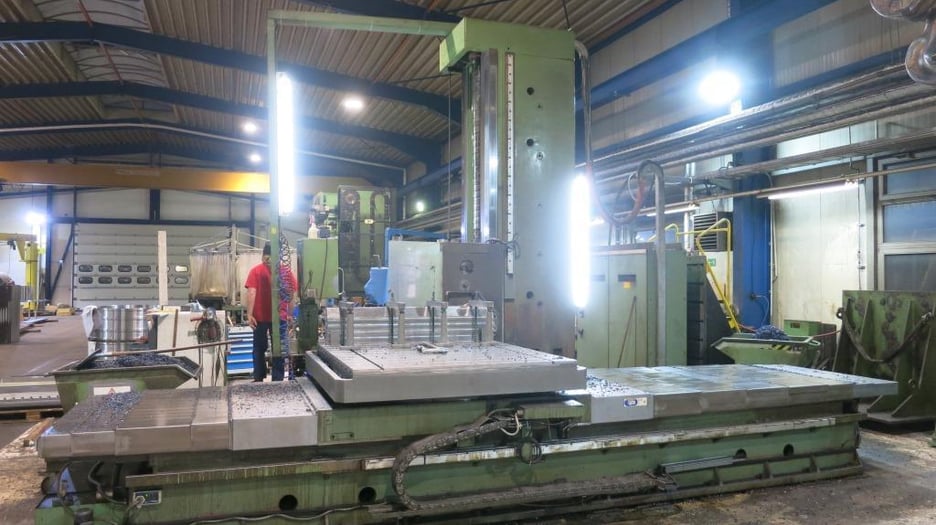

Used TOS WHN 13.8C Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used TOS WHN 13.8C boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A boring machine machines large workpieces by moving a rotating spindle to the work.

It has a Ø130 mm spindle with an ISO 50 taper and travels of 3,500 mm (X), 2,000 mm (Y) and 1,250 mm (Z), plus an 800 mm W-axis. The table is 1,800 × 1,600 mm and carries up to 12,000 kg, with a 360° B-axis and a Heidenhain TNC 355 control.

Key Features

Heidenhain TNC 355 control
360° B-axis for rotating the workpiece
Additional 800 mm W-axis
Spindle with support bearing

Technical Specifications

Model: TOS WHN 13.8C
Spindle diameter: Ø130 mm
Spindle taper: ISO 50
Spindle speed: 1–1,000 rpm
Transmission ratio: 4
X-travel: 3,500 mm
Y-travel: 2,000 mm
Z-travel: 1,250 mm
W-axis: 800 mm
B-axis: 360°
Table surface: 1,800 × 1,600 mm
Table load: 12,000 kg
Feed: 1–6,000 mm/min
Rapid movement: 6,000 mm/min
Control: Heidenhain TNC 355
Machine weight: approx. 33 t
Machine dimensions: approx. 7.8 × 5.7 × 4.9 m

Applications

Boring and milling large housings and frames
Machining heavy fabrications and castings
Machining large components for heavy engineering
Toolroom and general job-shop work on large parts

Commercial Details

Make: TOS
Model: WHN 13.8C
Condition: Used
Location: Navi Mumbai, Maharashtra, India
Seller: A.K. Machine Traders

Frequently Asked Questions

What are the axis travels? X is 3,500 mm, Y is 2,000 mm, Z is 1,250 mm, and the W-axis adds 800 mm.
What control does it have? It has a Heidenhain TNC 355 control.
How heavy a workpiece can the table take? The 1,800 × 1,600 mm table is rated for a load of 12,000 kg.
What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and the loading and shipping arrangements for a machine of about 33 t.
