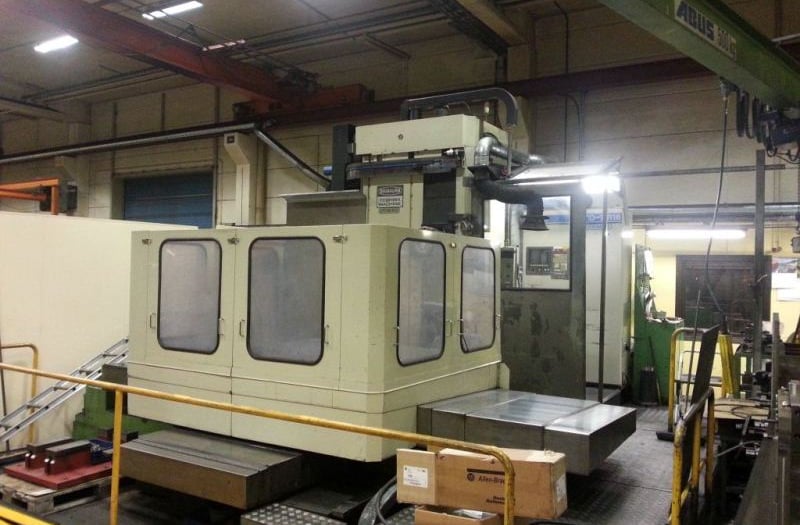

Used Toshiba BTD-11R16 CNC Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used Toshiba BTD-11R16 CNC horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring machine cuts and bores workpieces with a horizontally mounted spindle.

It has a 1,600 x 1,400 mm table that carries up to 6,300 kg, with X/Y/Z/W travels of 2,000/1,500/1,450/500 mm. A 22 kW spindle runs to 2,500 rpm, and a 60-tool automatic tool changer is fitted. Control is Tosnuc 7³.

Key Features

• 60-position automatic tool changer
• Full B-axis table indexing in 0.001° steps
• Tosnuc 7³ CNC control

Technical Specifications

• Model: Toshiba BTD-11R16
• Control: Tosnuc 7³
• Table size: 1,600 x 1,400 mm
• Table load: 6,300 kg
• Table indexing (full B axis): 0.001°
• Travels X/Y/Z/W: 2,000/1,500/1,450/500 mm
• Feed: 1–4,000 mm/min
• Rapid feed: 10,000 mm/min
• Tool changer: 60 tools (ATC)
• Spindle speed: 2,500 rpm
• Spindle power: 22 kW
• Dimensions (L x W x H): 6,000 x 5,100 x 3,970 mm
• Weight: 28 t

Applications

• Machining large housings and casings
• Boring and milling heavy fabricated or cast components
• Precision hole boring and facing on large workpieces
• General heavy-part machining in engineering workshops

Commercial Details

• Make: Toshiba
• Model: BTD-11R16
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• How large a workpiece can it take? The table measures 1,600 x 1,400 mm and carries up to 6,300 kg.
• How many tools does the changer hold? The automatic tool changer holds 60 tools.
• What control does it use? It is fitted with a Tosnuc 7³ CNC control.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection can be arranged, and which tooling, accessories and manuals are included. Also confirm the condition of the control and electrics, and the loading and shipping arrangements for a machine of about 28 t.
