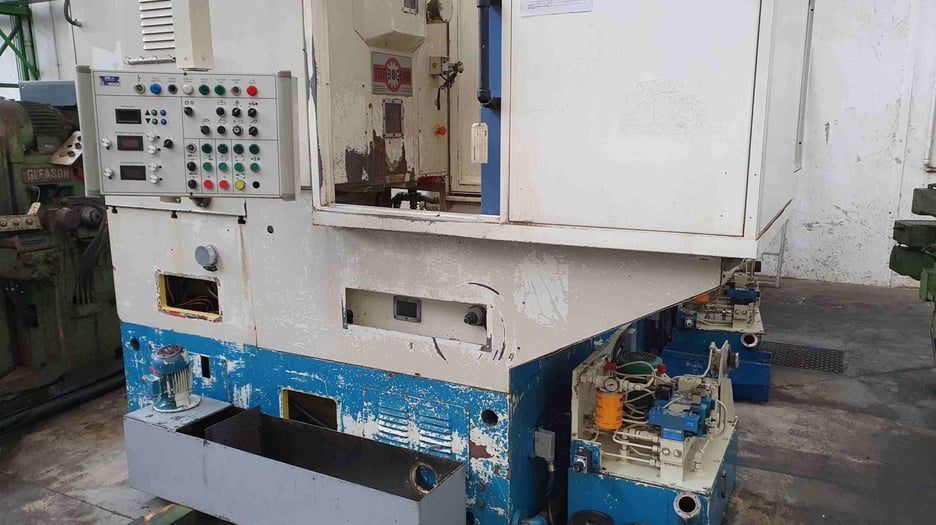

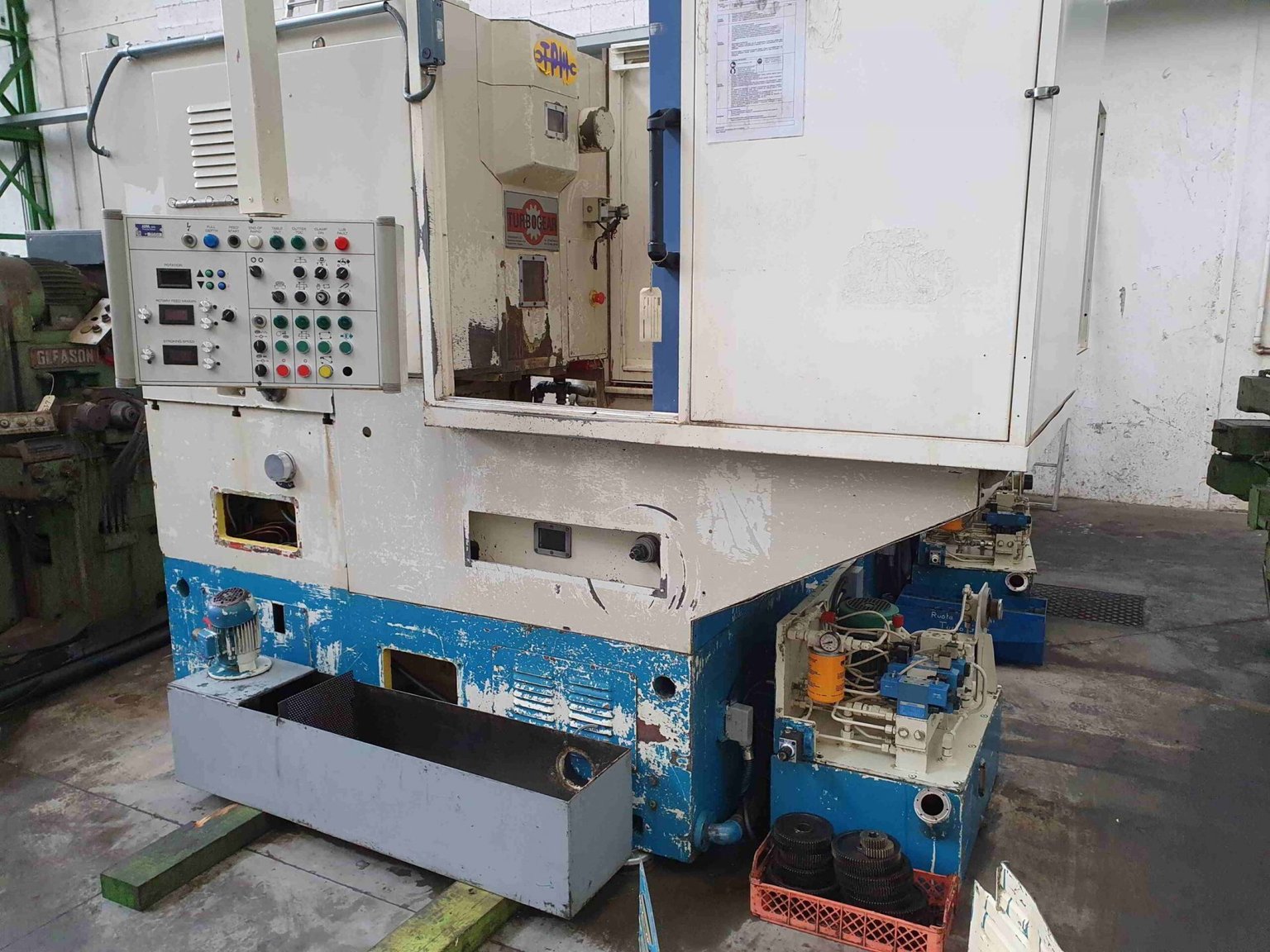

Used Turbo Gear TG 500 Gear Shaper | A.K. Machine Traders, Navi Mumbai, India

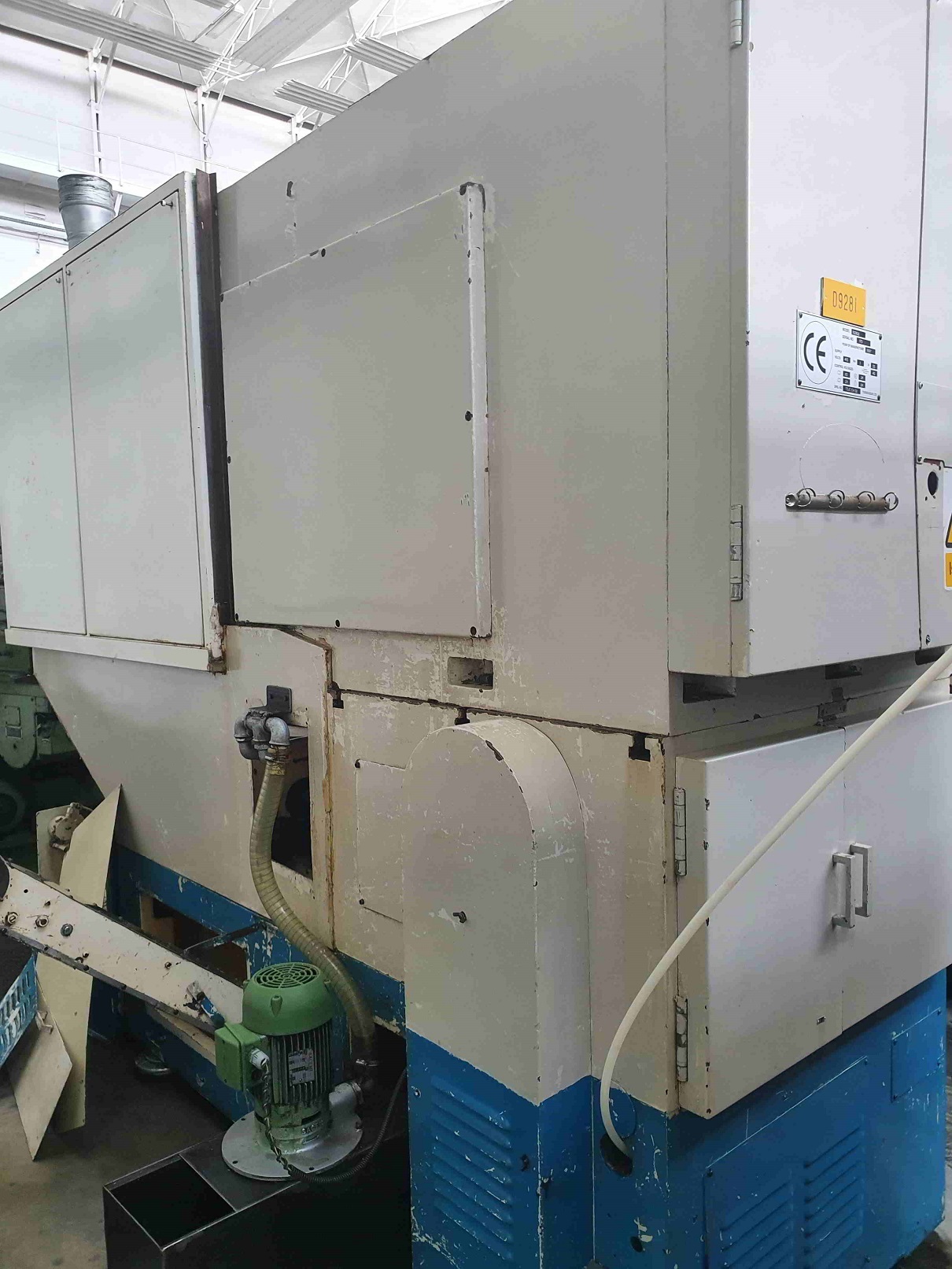

This used Turbo Gear TG 500 gear shaper is available from A.K. Machine Traders in Navi Mumbai, India. A gear shaper cuts gear teeth using a reciprocating cutter.

It handles external gears up to 500 mm in diameter and internal gears up to 600 mm, with a maximum module of 8 mm and a maximum width of 70 mm. It is driven by a 4 kW main motor and was manufactured in 1997.

Technical Specifications

• Model: TG 500
• Max external diameter: 500 mm
• Max internal diameter: 600 mm
• Table diameter: Ø550 mm
• Table bore diameter: Ø230 mm
• Max module: 8 mm
• Max width: 70 mm
• Tool slide stroke: 84 mm
• Distance between spindle and table: 120–230 mm
• Number of teeth: 10–200
• Cutter stroke: 190–800

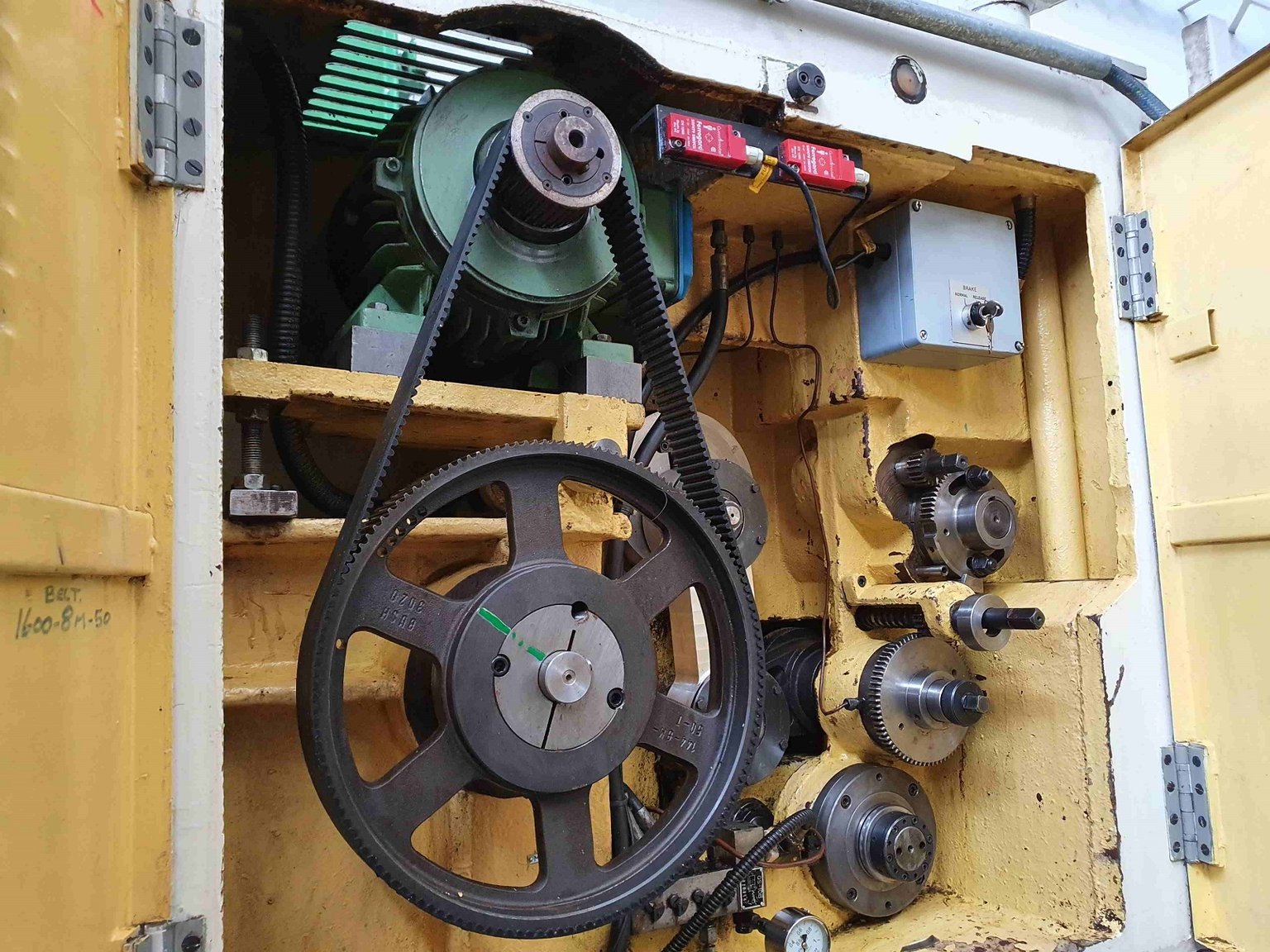

• Main motor power: 4 kW
• Total weight: 7,500 kg

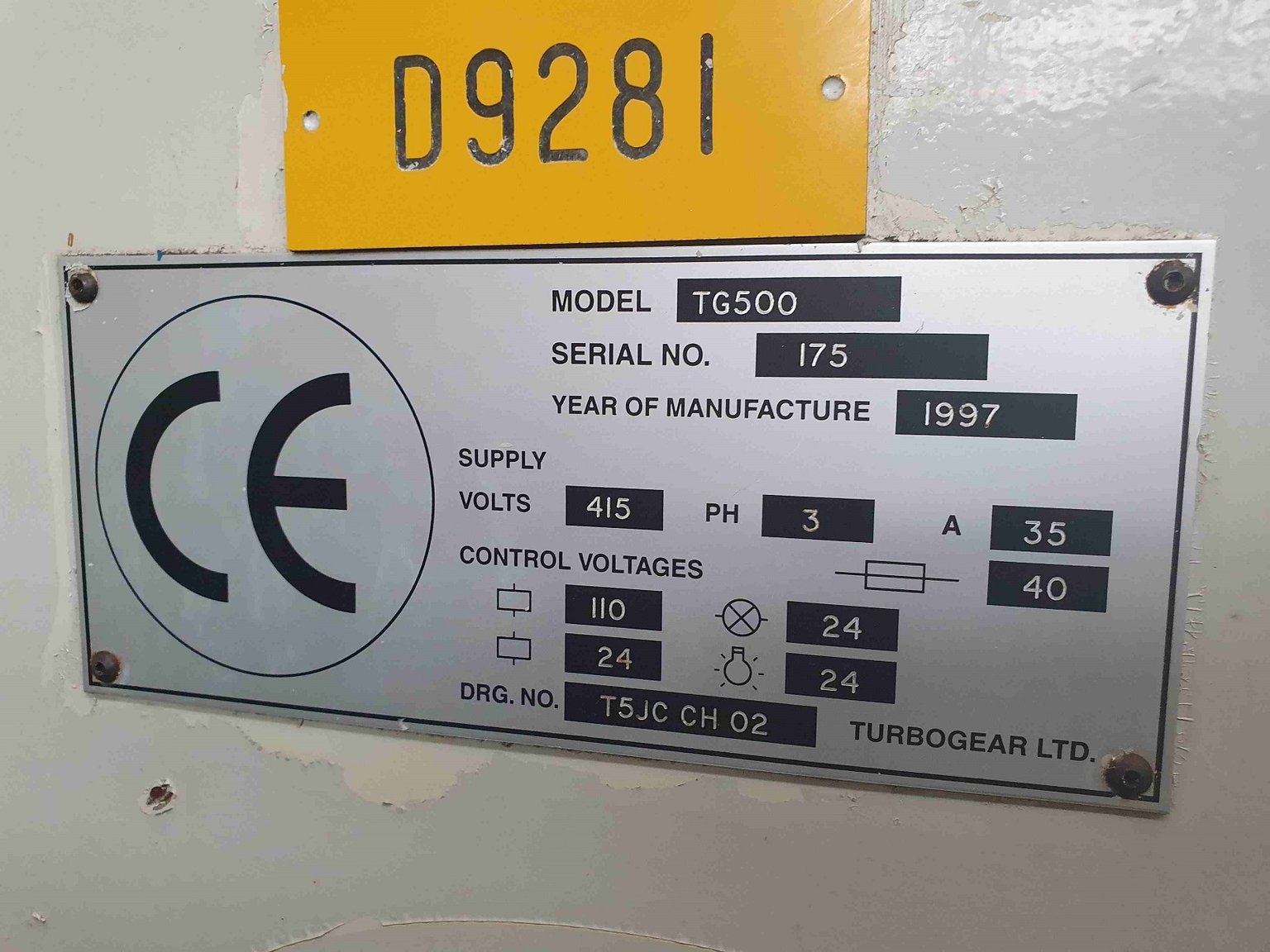

• Year of manufacture: 1997

Applications

• Cutting external spur gears
• Cutting internal gears
• Producing gears for gearboxes and transmissions
• Small-batch and workshop gear production

Commercial Details

• Make: Turbo Gear
• Model: TG 500
• Year: 1997
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts external gears up to 500 mm and internal gears up to 600 mm in diameter, up to module 8 mm and 70 mm width.
• What tooth counts does it cover? It handles gears from 10 to 200 teeth.
• What is the motor power and weight? The main motor is 4 kW and the machine weighs 7,500 kg.

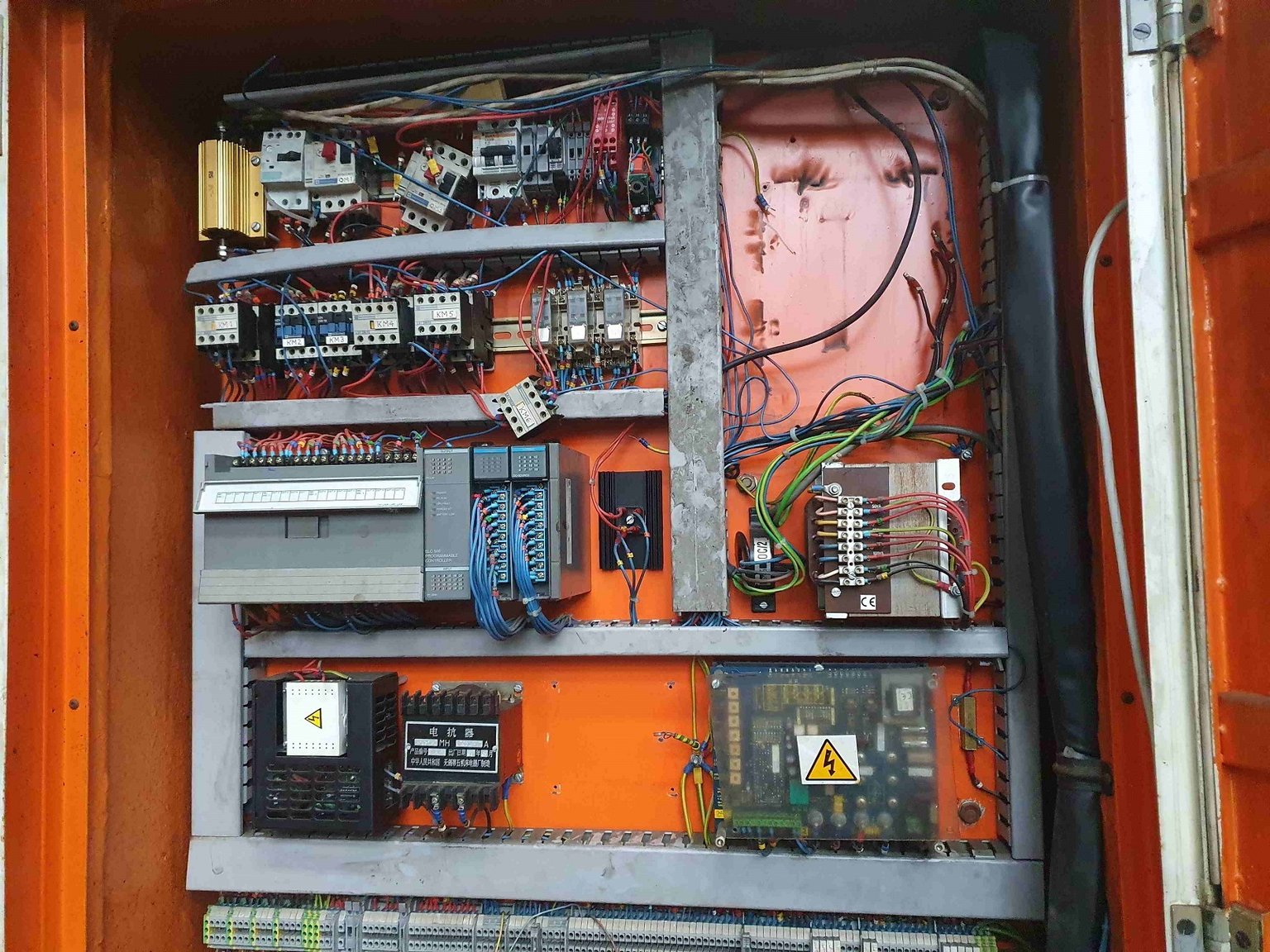

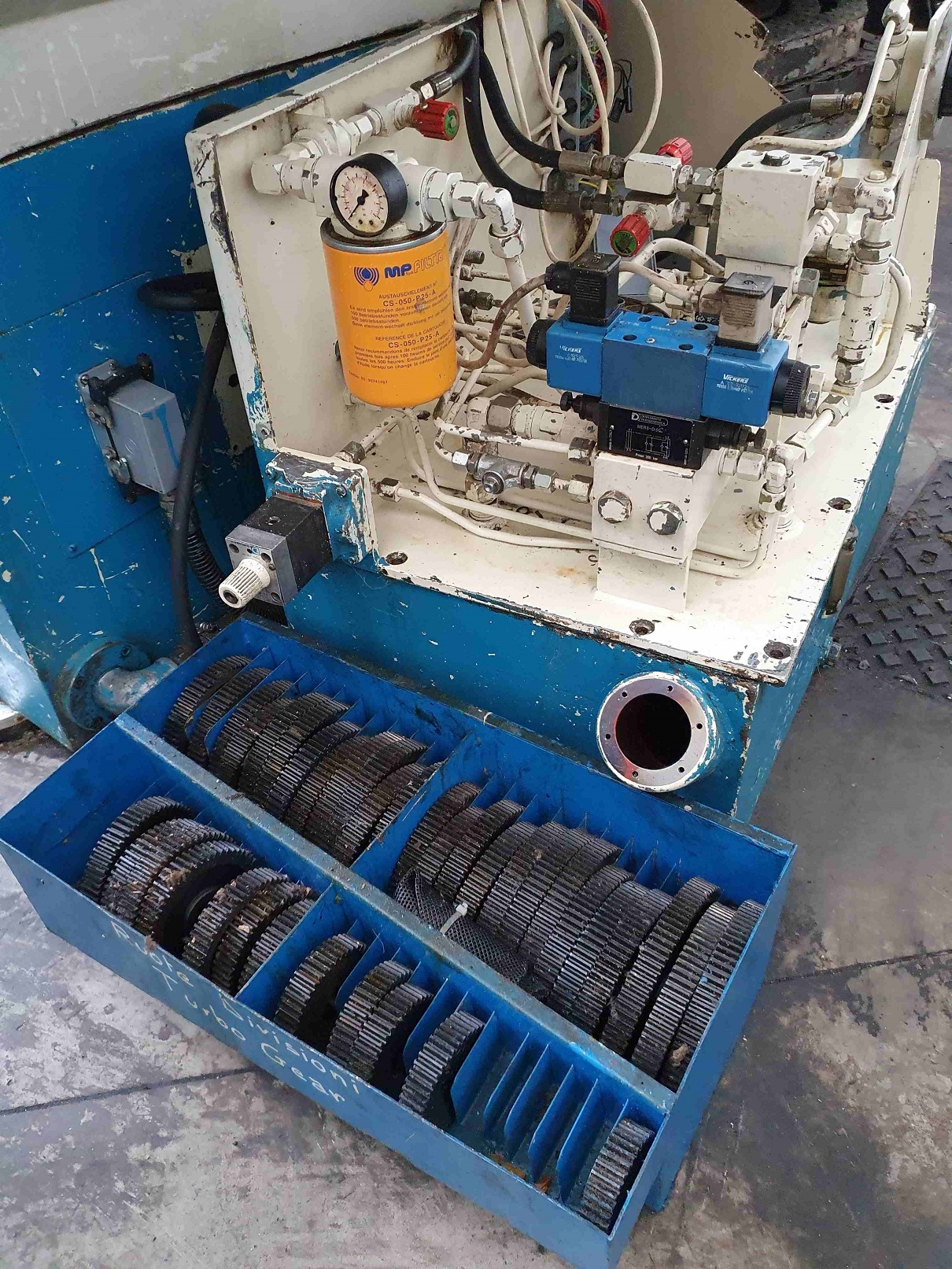

• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which cutters, fixtures and accessories are included, the condition of the electrics and controls, and loading and shipping arrangements.
