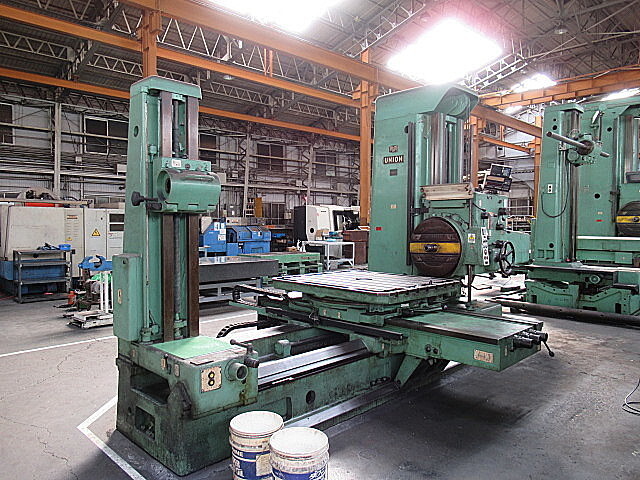

Used Union BFT 100/IV Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used Union BFT 100/IV horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring machine bores and machines large workpieces clamped on its table.

It has a 100 mm spindle with a MT 6 cone and a rotary table that turns through 360° and carries up to 4 t. Travels are 1,250 mm in X, 1,200 mm in Y and 1,600 mm in Z, with a 900 mm W-axis. It uses a conventional control unit.

Key Features

• Table rotates through 360°
• Conventional control unit
• Spindle with MT 6 cone

Technical Specifications

• Model: Union BFT 100/IV
• Spindle diameter: 100 mm
• Spindle cone: MT 6
• X-travel: 1,250 mm
• Y-travel: 1,200 mm
• Z-axis: 1,600 mm
• W-axis: 900 mm
• Table clamping surface (L x W): 1,120 x 1,250 mm
• Working table surface: 1,320 x 1,500 mm
• Table rotation: 360°
• Distance, face plate to end support column: 3,000 mm
• Table load: 4 t
• Total power requirement: 12.9 kW
• Control unit: Conventional
• Machine dimensions (approx.): 3,100 x 6,350 x 3,550 mm
• Machine weight (approx.): 17.2 t

Applications

• Boring large housings and casings
• Machining heavy fabricated and cast components
• Machining machine frames and structural parts
• General engineering and toolroom work on large workpieces

Commercial Details

• Make: Union
• Model: BFT 100/IV
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle size of the Union BFT 100/IV? It has a 100 mm spindle diameter with an MT 6 spindle cone.
• How heavy a workpiece can the table take? The rotary table is rated for a load of 4 t and rotates through 360°.
• What are the axis travels? Travels are 1,250 mm in X, 1,200 mm in Y, 1,600 mm in Z and 900 mm on the W-axis.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories, tooling and attachments are included, the condition of the control and electrics, and how loading and shipping of the 17.2 t machine will be handled.
