Used Union BFT 125/5 Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

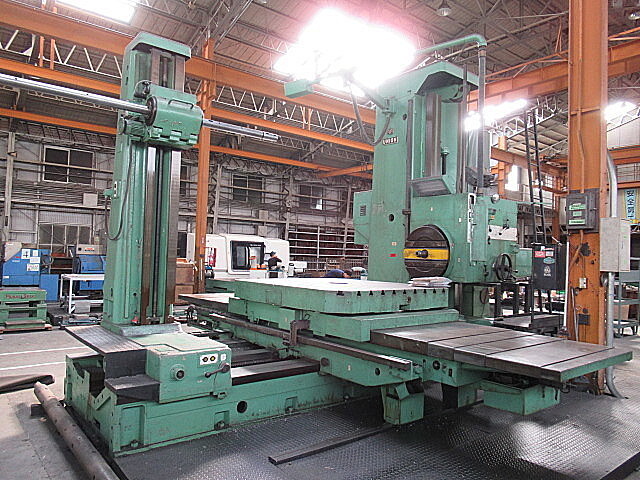

This used Union BFT 125/5 horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. It bores and machines large workpieces using a horizontal spindle and a rotary table.

It has a 125 mm spindle, travels of 2,800 mm in X, 1,800 mm in Y and 2,000 mm in Z, and a 2,000 mm x 1,800 mm table that carries up to 9,000 kg. An 18.5 kW motor drives the spindle.

Key Features

Rotary table fitted
3-axis digital read-out
Facing head of 785 mm diameter running at 3.55–140 rpm
Spindle traverse of 800 mm

Technical Specifications

Model: BFT 125/5
Spindle diameter: 125 mm
X axis travel: 2,800 mm
Y axis travel: 1,800 mm
Z axis travel: 2,000 mm
Spindle traverse: 800 mm
Spindle speeds: 112–720 rpm
Table size: 2,000 mm x 1,800 mm
Rotary table: Yes
Maximum weight on table: 9,000 kg
Digital read-out: Yes, 3 axis
Facing head diameter: 785 mm
Facing head speed: 3.55–140 rpm
Motor: 18.5 kW
Length: 7,620 mm
Width: 5,842 mm
Height: 4,395 mm
Weight: 34 t

Applications

Machining large housings and gearbox casings
Boring and facing heavy fabrications
Machining large castings and frames
General heavy engineering and toolroom work

Commercial Details

Make: Union
Model: BFT 125/5
Condition: Used
Location: Navi Mumbai, Maharashtra, India
Seller: A.K. Machine Traders

Frequently Asked Questions

What is the spindle diameter and speed range? The spindle is 125 mm in diameter and runs at 112–720 rpm.
How heavy a workpiece can the table take? The 2,000 mm x 1,800 mm rotary table carries up to 9,000 kg.
How big is the machine for transport? It measures 7,620 mm long, 5,842 mm wide and 4,395 mm high, and weighs 34 t.
What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which accessories and tooling are included, the condition of the digital read-out and electrics, and how loading and shipping of a 34 t machine will be handled.
