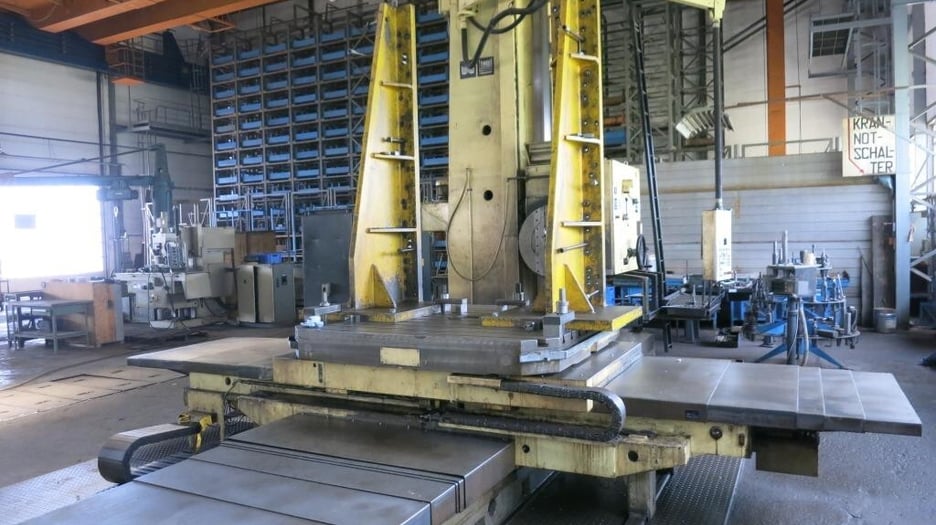

Used Union BFT 130/6 Table Type Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used Union BFT 130/6 table type boring machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a boring machine for large workpieces, with a 130 mm spindle and a 1,800 × 2,000 mm table.

Travels are 3,000 mm in X, 2,500 mm in Y and 3,000 mm in Z, with a 1,100 mm W-axis. The table carries workpieces up to 8,000 kg, and the machine has a radial face slide and a conventional control.

Key Features

• Radial face slide with Ø750 mm and 240 mm travel
• Threading capability
• Two clamping angles supplied, 2,500 × 370 mm
• Conventional control

Technical Specifications

• Model: BFT 130/6
• Spindle diameter: Ø130 mm
• X-travel: 3,000 mm
• Y-travel: 2,500 mm
• Z-travel: 3,000 mm
• W-axis: 1,100 mm
• Radial face slide diameter: 750 mm
• Radial face slide travel: 240 mm
• Table surface area: 1,800 × 2,000 mm
• Clamping angles: 2 × 2,500 × 370 mm
• Maximum workpiece weight: 8,000 kg
• Spindle speeds: 4.8–900 rpm
• Faceplate speeds: 4.5–180 rpm
• Feed: 5–2,000 mm/min
• Total power requirement: 40 kW
• Control: Conventional
• Machine weight: Approx. 34.5 t

Applications

• Boring large housings and casings
• Machining heavy fabricated and cast components
• Face machining and turning with the radial face slide
• General heavy engineering and toolroom work

Commercial Details

• Make: Union
• Model: BFT 130/6
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size and load capacity? The table surface is 1,800 × 2,000 mm and takes workpieces up to 8,000 kg.
• What are the axis travels? X is 3,000 mm, Y is 2,500 mm, Z is 3,000 mm and the W-axis is 1,100 mm.
• What type of control does it have? It has a conventional control.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, whether the clamping angles and any tooling or accessories are included, the condition of the electrics and control, and loading and shipping arrangements for a machine of about 34.5 t.
