Used VEB Mikromat 3G Thread Grinder | A.K. Machine Traders, Navi Mumbai, India

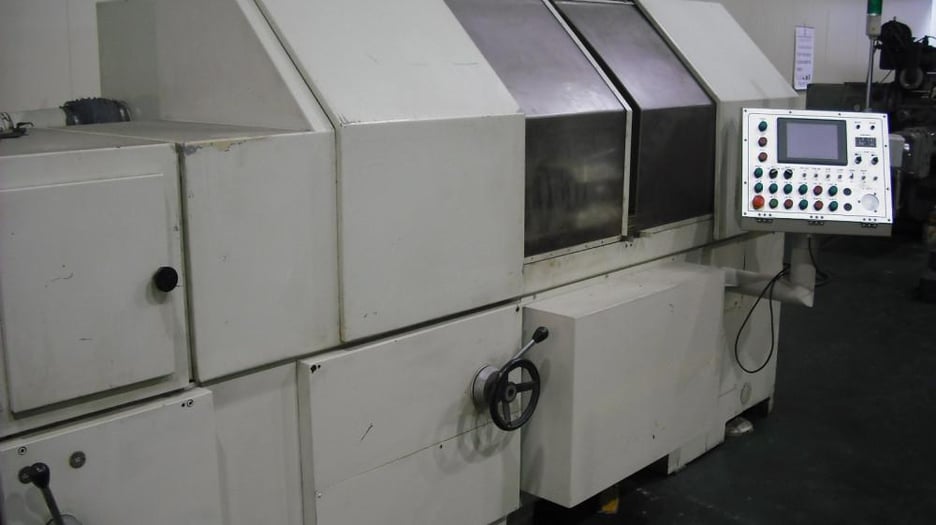

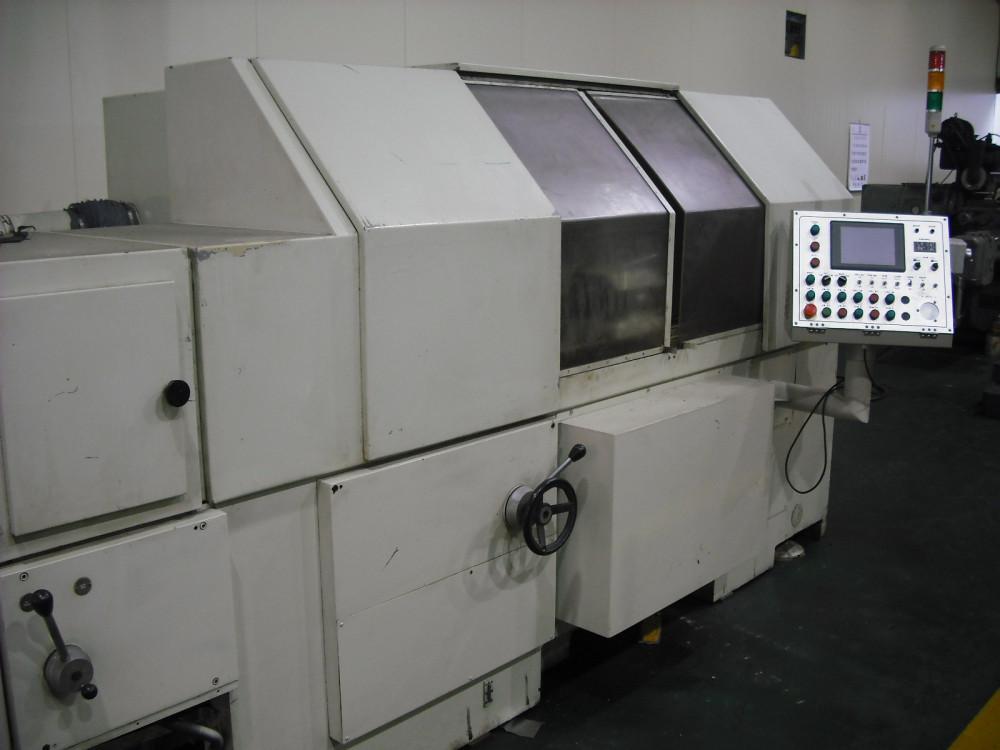

This used VEB Mikromat 3G thread grinder is available from A.K. Machine Traders in Navi Mumbai, India. A thread grinder finishes threads on workpieces by grinding them.

It grinds workpieces from 2–320 mm in diameter, up to 510 mm in grinding length, and takes workpieces up to 170 kg between centres set up to 1,000 mm apart. The machine weighs 7 t.

Technical Specifications

• Model: VEB Mikromat 3G
• Grinding diameter: 2–320 mm
• Max. grinding length: 510 mm
• Max. workpiece weight: 170 kg
• Max. distance between centres: 1,000 mm
• Max. pitch: M20
• Max. helix angle: ±140 deg
• Grinding wheel feed: 0.004–0.4 mm
• Machine weight: 7 t

Applications

• Ground threads on screws and spindles
• Threaded measuring and gauge parts
• Precision threaded shafts
• Thread-ground tooling components

Commercial Details

• Make: VEB Mikromat
• Model: 3G
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece can it grind? It grinds diameters of 2–320 mm, with a maximum grinding length of 510 mm and a maximum workpiece weight of 170 kg.
• What is the maximum distance between centres? The maximum distance between centres is 1,000 mm.
• How heavy is the machine? The machine weighs 7 t, which is worth allowing for in transport and installation.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and how loading and shipping would be handled.
