Used VEB SU 315 x 1500 Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

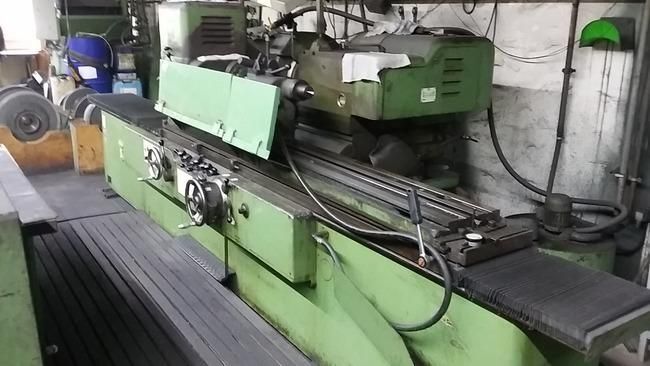

This used VEB SU 315 x 1500 cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds the outside diameters of round workpieces held between centres.

It swings workpieces up to 315 mm in diameter (125 mm with the steady rest) over a grinding length of 1,500 mm, and takes workpieces up to 300 kg between centres. Total connected power is 11 kW, with a 7.5 kW wheelhead motor.

Key Features

• Swivelling grinding spindle, 45-0-45°
• Swivelling workpiece spindle, 15/105°
• Table swivel of 6°
• Steady rest for slender workpieces
• Morse 4 centre taper

Technical Specifications

• Make: VEB
• Model: SU 315 x 1500
• Year of construction: 1969
• Control: Conventional
• Grinding diameter without steady rest: 315 mm
• Grinding diameter with steady rest: 125 mm
• Maximum grinding length: 1,500 mm
• Minimum grinding length: 15 mm
• Plunge grinding length: 125 mm
• Centre height: 165 mm
• Centre taper: Morse 4
• Workpiece spindle bore: 30 mm
• Workpiece spindle swivel: 15/105°
• Grinding spindle swivel: 45-0-45°
• Longitudinal travel: 4–1,680 mm
• Table swivel: 6°
• Grinding wheel diameter: 500 mm
• Grinding wheel width: 125 mm
• Maximum workpiece weight between centres: 300 kg
• Total power requirement: 11 kW
• Wheelhead motor: 7.5 kW
• Hydraulic motor: 1.5 kW
• Workpiece spindle motor: 1.1 kW
• Weight: 5,200 kg
• Floor space (W x D x H): 5,000 x 2,000 x 1,500 mm

Applications

• Shafts and spindles
• Rollers and long cylindrical parts
• Tapered workpieces ground with the swivelling spindle
• General toolroom and engineering production grinding

Commercial Details

• Make: VEB
• Model: SU 315 x 1500
• Year: 1969
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum workpiece size? It grinds up to 315 mm in diameter over 1,500 mm in length, with a maximum workpiece weight of 300 kg between centres.
• What is the total power requirement? The total requirement is 11 kW, including a 7.5 kW wheelhead motor, 1.5 kW hydraulics and a 1.1 kW workpiece spindle.
• What floor space does it need? It needs 5,000 mm x 2,000 mm x 1,500 mm and weighs 5,200 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running, its inspection status, which accessories (steady rest, wheels, centres) are included, the condition of the electrics and hydraulics, and loading and shipping arrangements.
