Used Wickman CNC OPG Optical Profile Grinder | A.K. Machine Traders, Navi Mumbai, India

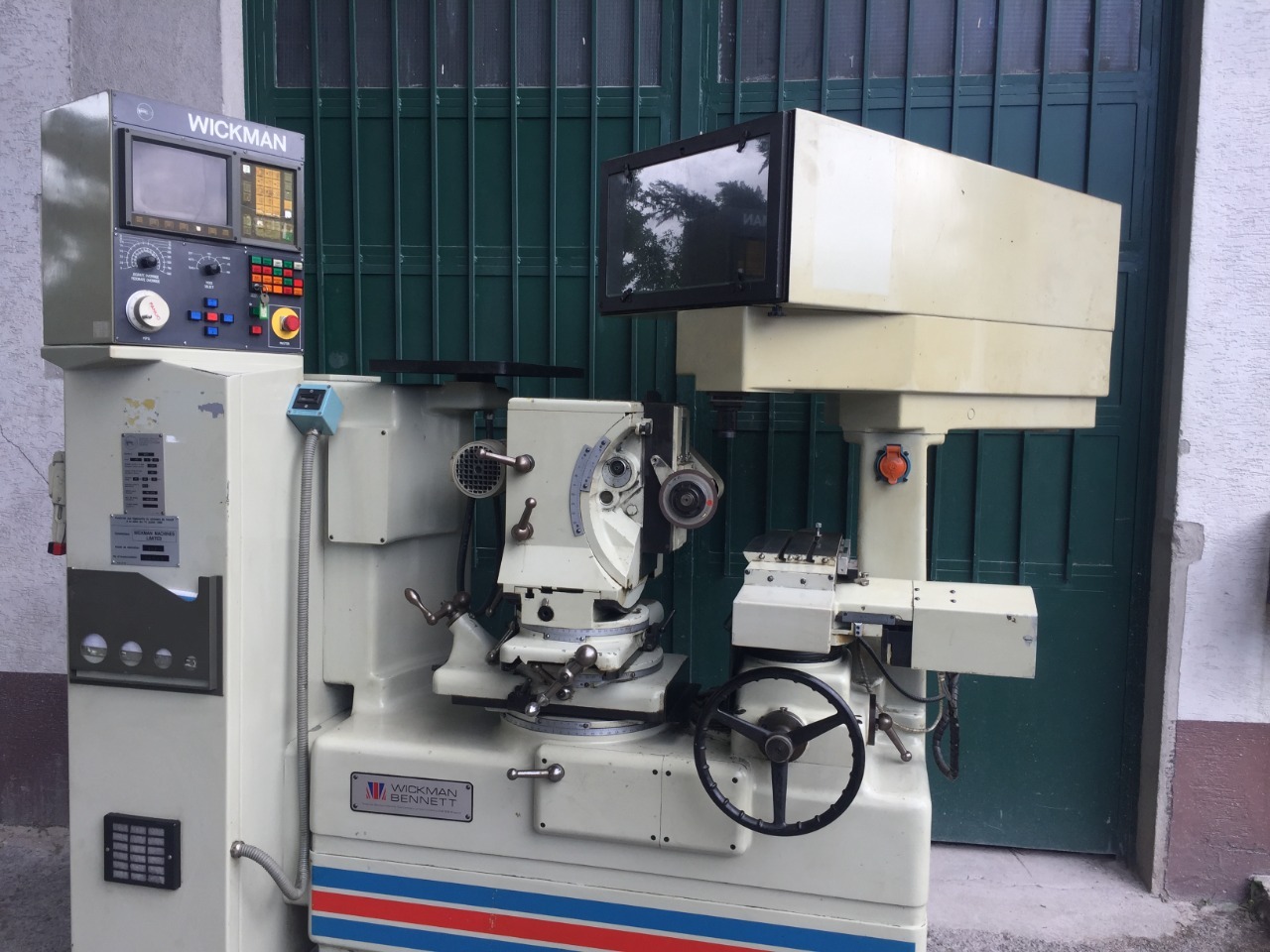

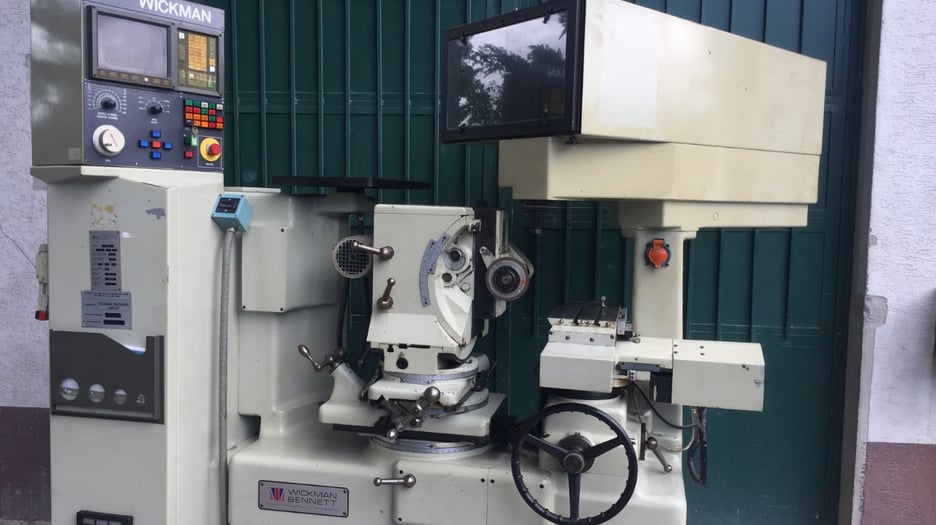

This used Wickman CNC OPG optical profile grinder is available from A.K. Machine Traders in Navi Mumbai, India. An optical profile grinder grinds the outline of small parts and form tools while the operator follows the profile on a magnified screen.

It has Fanuc 2-axis control, a large square screen with 25x magnification and a standard pantograph with a 50/1 reduction ratio. The part-holder table travels 150 x 64 mm and takes work up to 76 mm thick.

Key Features

• Fanuc 2-axis control
• Large square screen with 25x magnification
• Standard and special pantograph options
• Adjustable frontal and side clearance angles
• Orientation of the grinding wheel head, upper slide and lower slide

Technical Specifications

• Model: Wickman CNC OPG
• Control: Fanuc 2 axis
• Screen magnification: x25
• Screen diameter: 178 mm
• Standard microscope magnification: x50
• Standard pantograph: 50, 1/10 x 10 mm
• Special pantograph: 20, 1/25 x 25 mm
• Pantograph reduction ratio: 50/1
• Max drawing size: 500 x 500 mm
• Part-holder table slides: 150 x 64 mm
• Max. thickness: 76 mm
• Column vertical stroke: 114 mm
• Transversal slide stroke: 64 mm
• Longitudinal slide stroke: 150 mm
• Grinding wheel motor: 0.5 CV
• Spindle speed: 3,800 rpm
• Standard grinding wheel: Ø127 mm x bore Ø31.7 mm x 4.7 mm thick
• Frontal clearance angle: 0–35°
• Side clearance angle: –10° to +10°
• Grinding wheel slide strokes per minute: 55 and 109
• Grinding wheel slide stroke: 0–79 mm
• Grinding wheel head orientation: –90° to +90°
• Upper slide orientation: –45° to +45°
• Lower slide orientation: –45° to +90°
• Upper slide stroke: 140 mm
• Lower slide stroke: 108 mm
• Weight: About 1,200 kg

Applications

• Grinding form tools and profile cutters
• Producing punches and dies
• Grinding small precision profiled parts
• Tool room profile work

Commercial Details

• Make: Wickman
• Model: CNC OPG
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does it have? It has a Fanuc 2-axis control.
• What is the maximum work thickness? It takes work up to 76 mm thick.
• How heavy is the machine? It weighs about 1,200 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether pantographs, wheels and work-holding accessories are included, the condition of the Fanuc control and screen optics, and arrangements for loading and shipping.
