Used Wickman Optical Profile Grinder | A.K. Machine Traders, Navi Mumbai, India

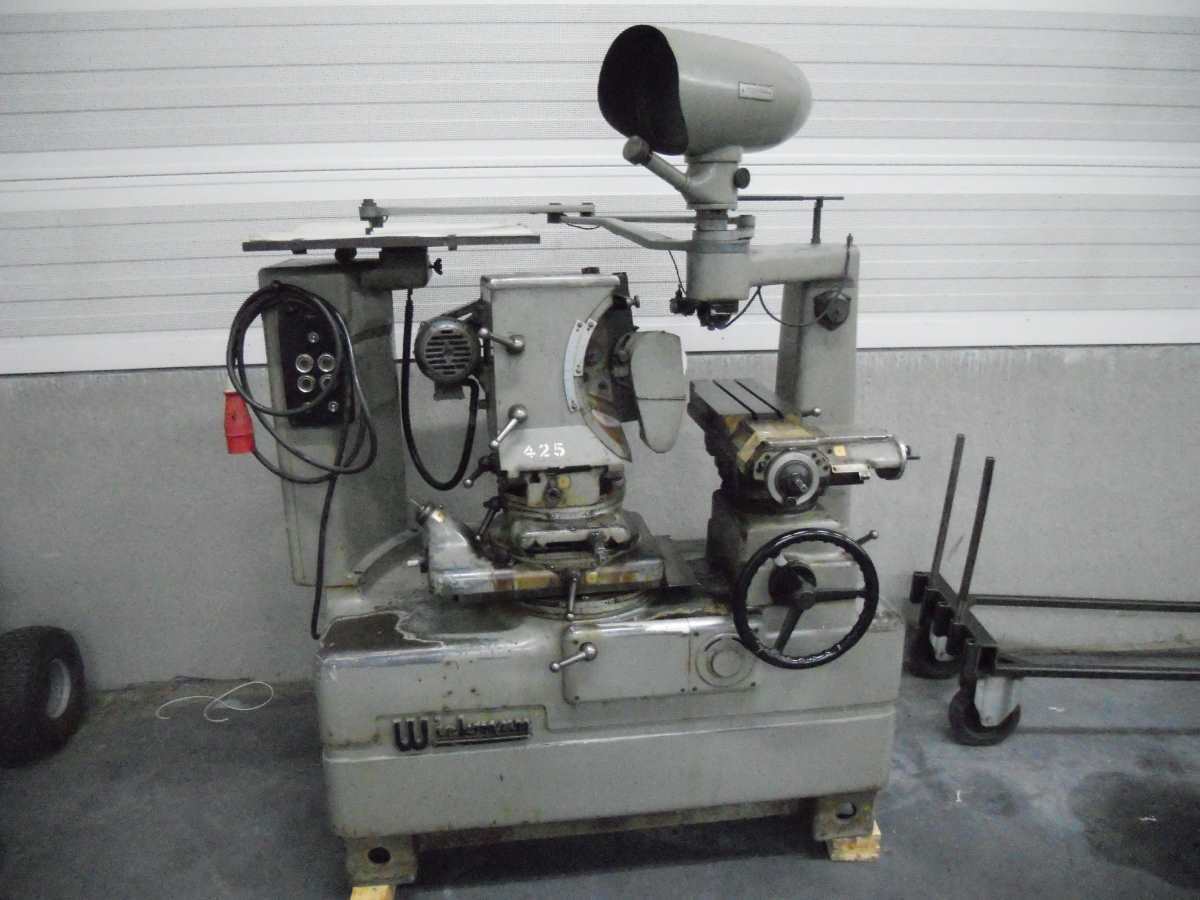

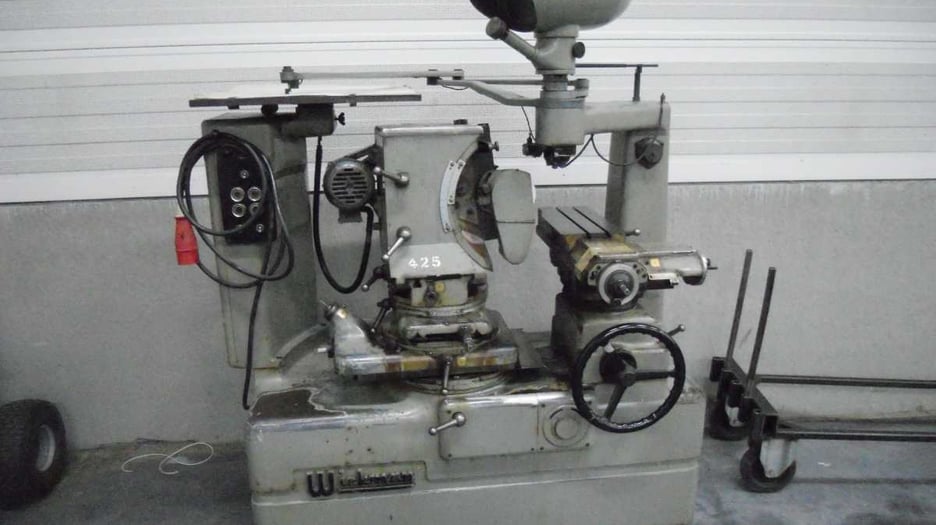

This used Wickman optical profile grinder is available from A.K. Machine Traders in Navi Mumbai, India. It is a profile grinder for shaping small parts and tools to an accurate outline.

It has a 150 x 64 mm table and travels of 150 mm (X), 64 mm (Y) and 114 mm (Z). It takes a 127 mm diameter grinding wheel and workpieces up to 150 mm long and 76 mm high.

Key Features

• Grinding head can be set up to 90°
• Upper and lower slides each set up to 45°
• Stroke height of 140 mm on the upper slide and 108 mm on the lower slide

Technical Specifications

• Make: Wickman
• Table length: 150 mm
• Table width: 64 mm
• Longitudinal travel (X-axis): 150 mm
• Transverse travel (Y-axis): 64 mm
• Vertical travel (Z-axis): 114 mm
• Grinding wheel diameter: 127 mm
• Grinding wheel width: 31.0 mm
• Grinding wheel bore: 4.0 mm
• Max. workpiece length: 150 mm
• Max. workpiece height: 76 mm
• Grinding head angle set-up: 90°
• Upper slide angle set-up: 45°
• Lower slide angle set-up: 45°
• Upper slide stroke height: 140 mm
• Lower slide stroke height: 108 mm
• Grinding motor: 0.5 HP
• Weight: About 1,500 kg

Applications

• Grinding profiles on small tools and cutters
• Producing form tools and templates
• Precision grinding of small components up to 150 mm long
• Toolroom work requiring angled profiles

Commercial Details

• Make: Wickman
• Model: Optical Profile Grinder
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpieces can it grind? It handles workpieces up to 150 mm long and 76 mm high.
• What grinding wheel does it use? The wheel is 127 mm in diameter, 31.0 mm wide, with a 4.0 mm bore.
• How heavy is the machine? It weighs about 1,500 kg, which is useful for planning transport and installation.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether the optical projection screen, wheels and any fixtures are included, the condition of the slides and electrics, and loading and shipping arrangements.
