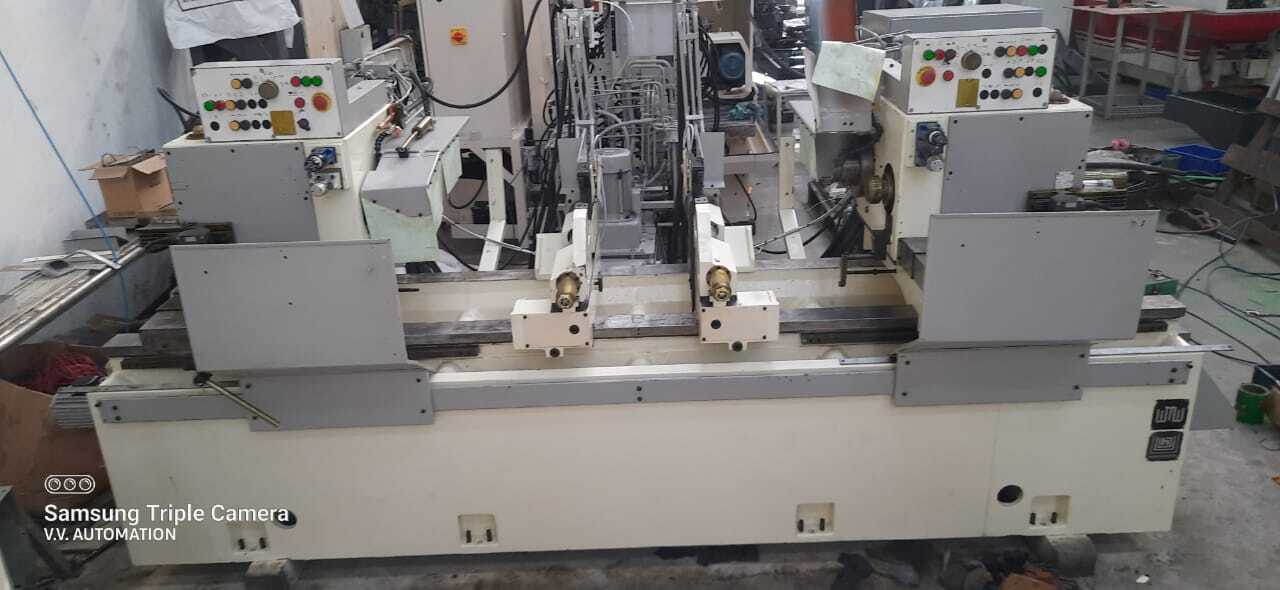

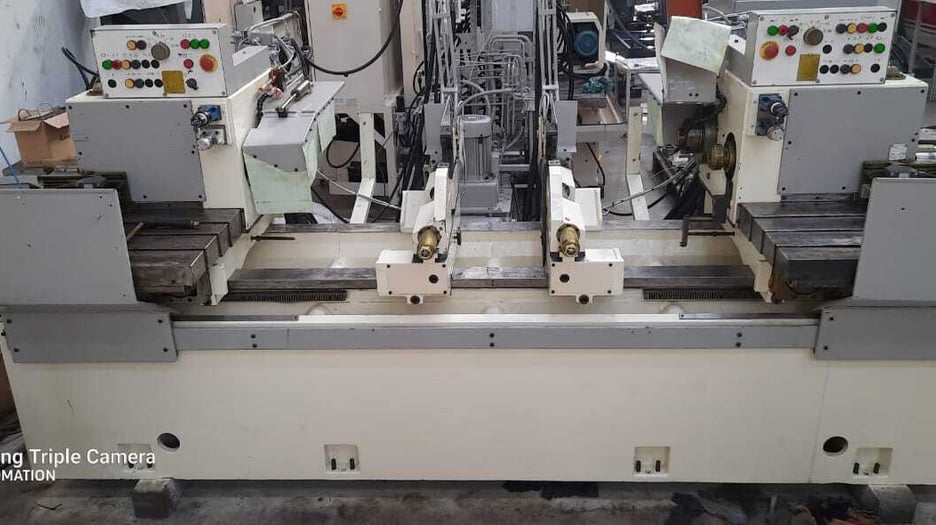

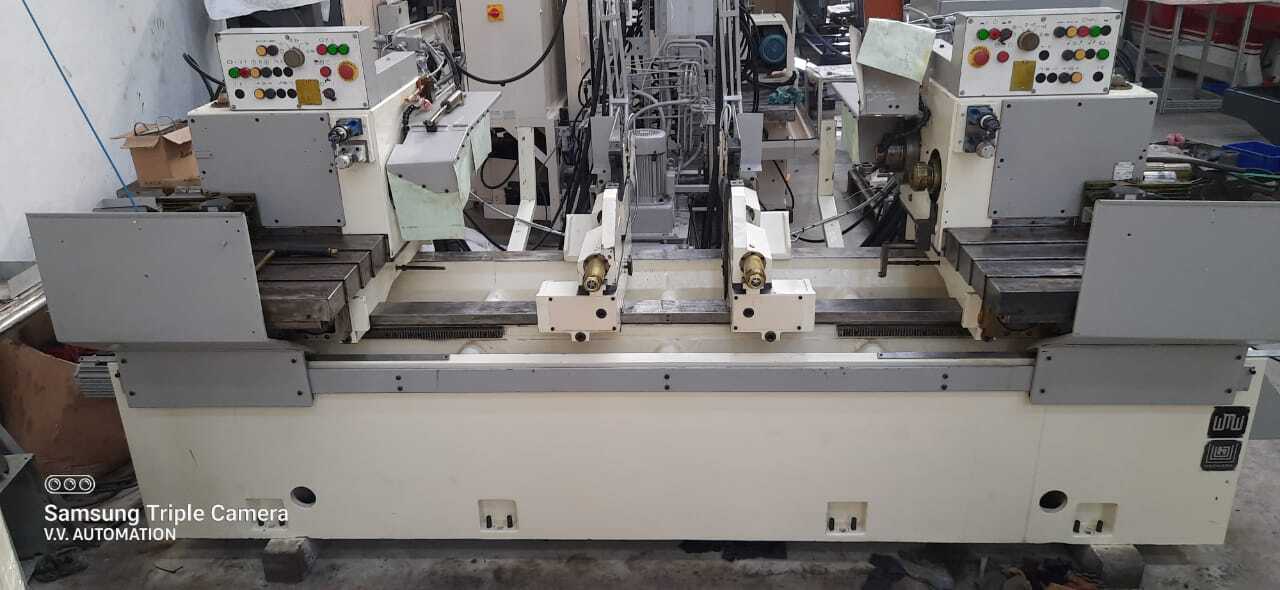

Used WMW FZWD 160 x 1600 Centre Facing Machine | A.K. Machine Traders, Navi Mumbai, India

This used WMW FZWD 160 x 1600 centre facing machine is available from A.K. Machine Traders in Navi Mumbai, India. It faces the ends of shafts and similar round workpieces and prepares them for centre drilling.

It takes workpieces from 12 mm to 160 mm in diameter and from 140 mm to 1,600 mm in length. It has two 7.5 kW milling and drilling units and a total connected load of 20 kW.

Key Features

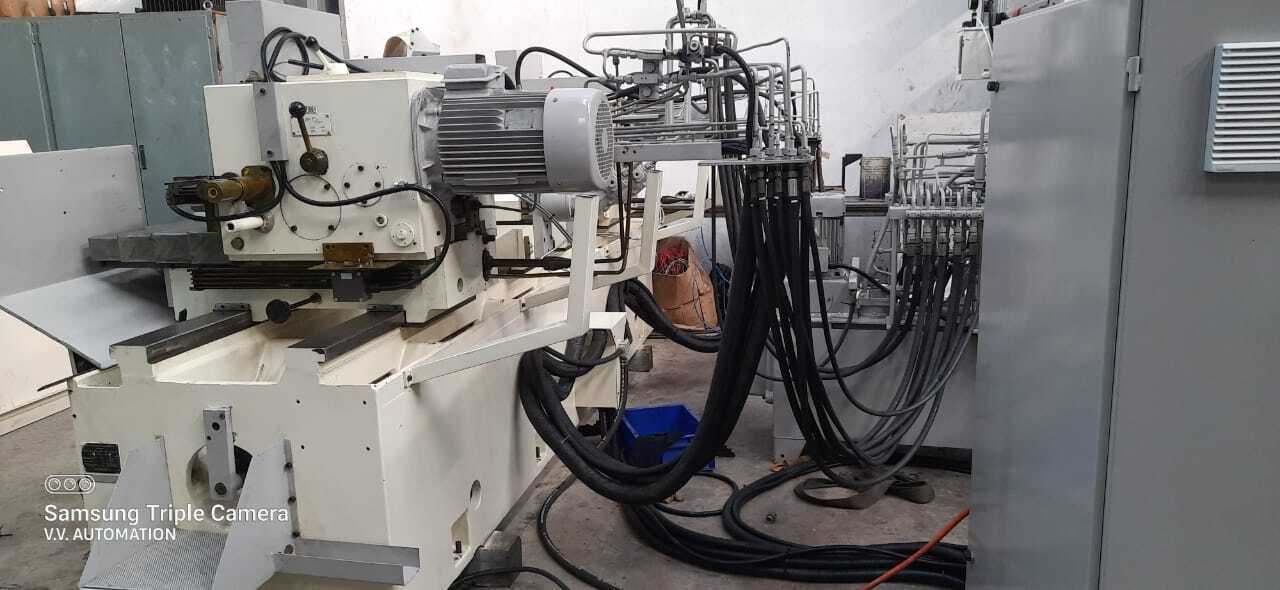

• Milling and drilling unit, 2 x 7.5 kW
• Infinitely variable feed
• Rapid feed for faster positioning

Technical Specifications

• Model: WMW FZWD 160 x 1600
• Minimum workpiece diameter: 12 mm
• Maximum workpiece diameter: 160 mm
• Minimum workpiece length: 140 mm
• Maximum workpiece length: 1,600 mm
• Machine guidance: 2,200 mm
• Head diameter: 200 mm
• Speeds: 112/180/280
• Feed: 15–800 mm/min, infinitely variable
• Rapid feed: 4,000 mm/min
• Milling and drilling unit: 2 x 7.5 kW
• Total connected load: 20 kW
• Net mass: 5,100 kg

Applications

• Facing the ends of shafts before turning
• Preparing axles and spindles for centre drilling
• Production of round bar and shaft components
• General engineering and machine-building workshops

Commercial Details

• Make: WMW
• Model: FZWD 160 x 1600
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What workpiece sizes can it take? It handles diameters of 12–160 mm and lengths of 140–1,600 mm.
• What is the feed range? Feed is infinitely variable from 15 to 800 mm/min, with a rapid feed of 4,000 mm/min.
• How heavy is the machine and what power does it need? Net mass is 5,100 kg and the total connected load is 20 kW.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling and accessories are included, the condition of the electrics, and loading and shipping arrangements.
