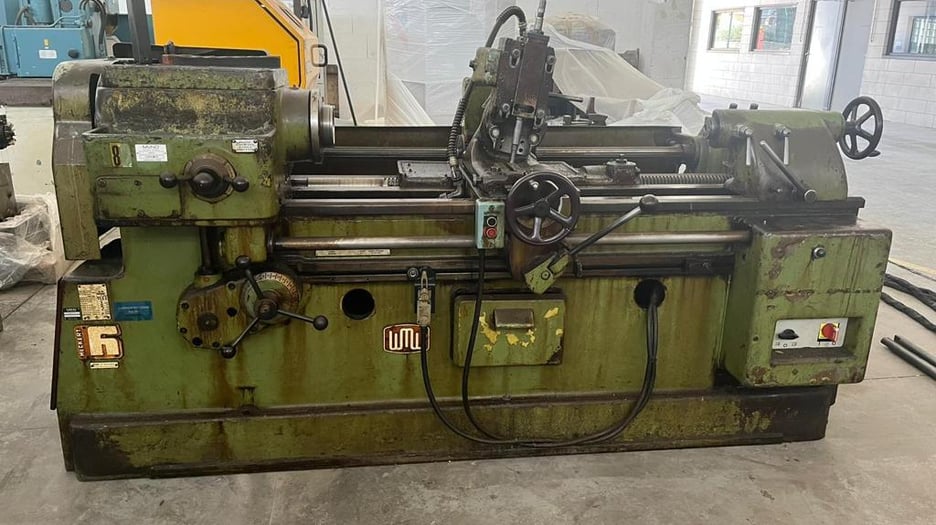

Used WMW Heckert GFL 1000 Thread and Worm Milling Machine | A.K. Machine Traders, Navi Mumbai, India

This used WMW Heckert GFL 1000 thread and worm milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is built for milling threads and worms on shaft-type workpieces.

It takes work up to 400 mm in diameter and 1,000 mm in length, with a centre height of 200 mm and an 80 mm main spindle bore. The machine weighs 3,500 kg.

Technical Specifications

• Model: GFL 1000
• Max. diameter: 400 mm
• Height of centres: 200 mm
• Max. length: 1,000 mm
• Main spindle bore: 80 mm
• Net weight: 3,500 kg

Applications

• Milling threads on shafts and long round parts
• Cutting worms for worm gear drives
• Producing lead screws and similar threaded components

Commercial Details

• Make: WMW Heckert
• Model: GFL 1000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of workpiece does it take? It handles work up to 400 mm in diameter and 1,000 mm in length, with a centre height of 200 mm.
• What is the spindle bore? The main spindle bore is 80 mm.
• How heavy is the machine? The net weight is 3,500 kg, which is relevant for transport and foundation planning.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, change gears and accessories are included, the condition of the control and electrics, and how loading and shipping will be handled.
