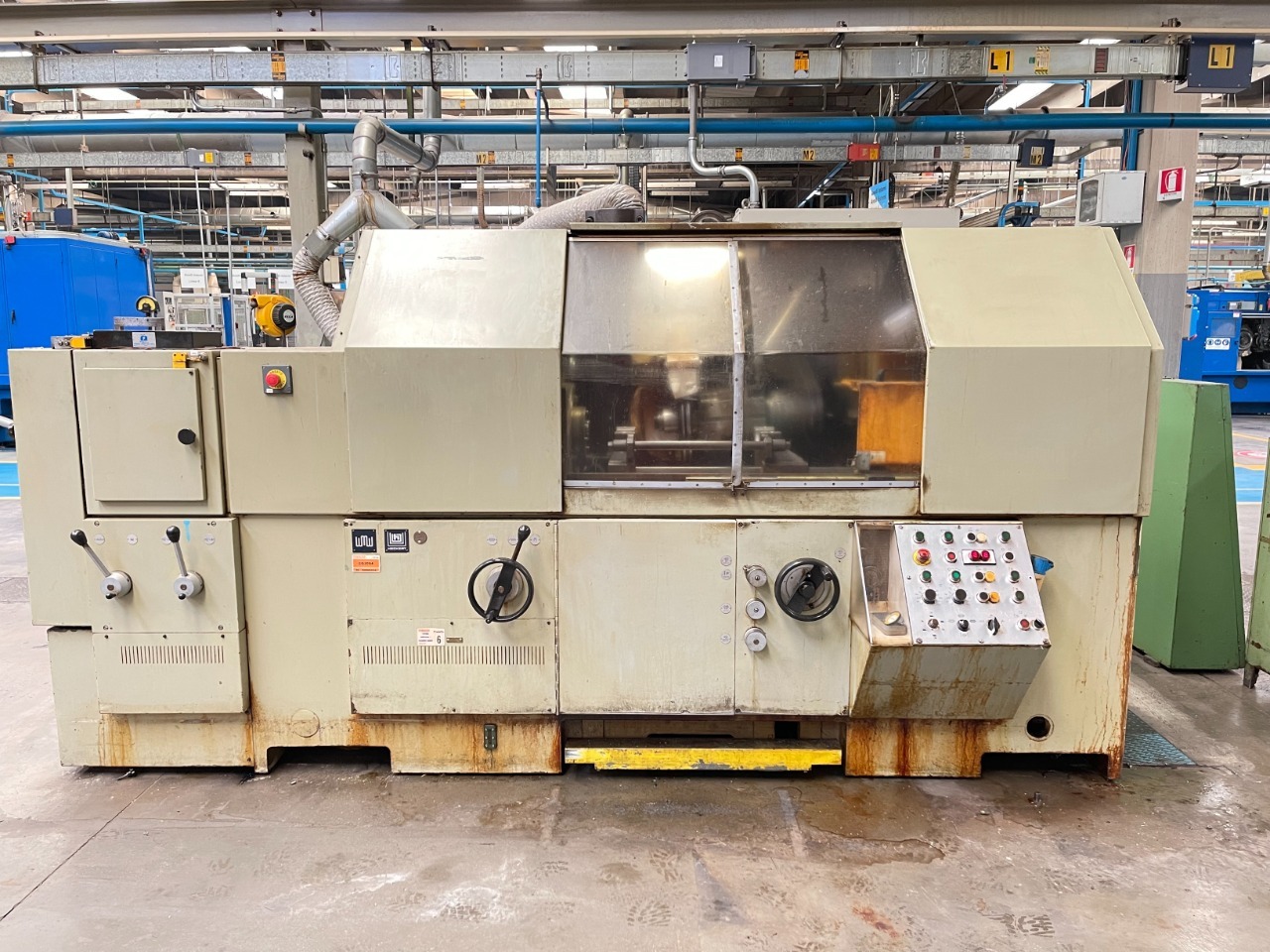

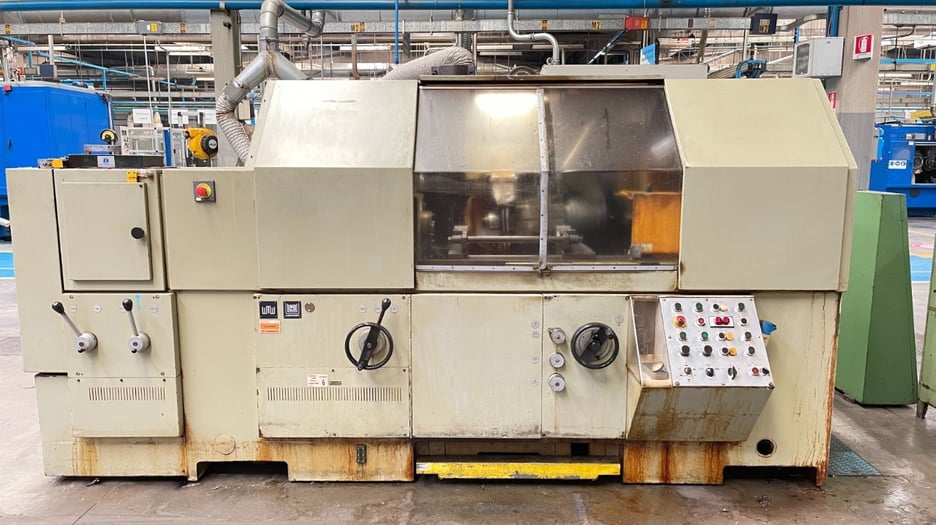

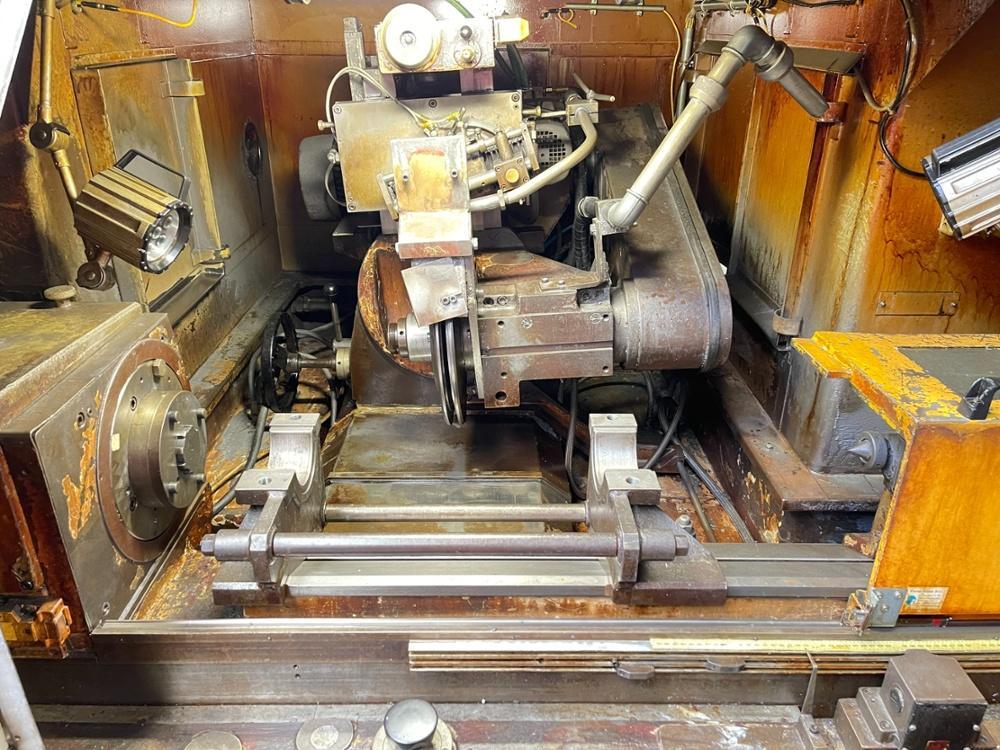

This used WMW Heckert GSXT 315/1 thread grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a German-built machine for grinding threads on round workpieces.

It grinds diameters of 2–315 mm over a maximum grinding length of 1,000 mm and takes workpieces up to 160 kg. The lifting angle is up to ±40 degrees, and it accepts grinding wheels from 360 mm to 500 mm in diameter.

Technical Specifications

• Model: GSXT 315/1
• Country of origin: Germany
• Grinding diameter range: 2–315 mm
• Max. grinding length: 1,000 mm
• Max. workpiece weight: 160 kg
• Max. component length in workpiece spindle: 760 mm
• Spindle bore: 40 mm
• Spindle taper (metric): 80 mm
• Max. lifting angle: ±40 degrees
• Grinding wheel diameter: 360–500 mm
• Grinding wheel width: 8–50 mm
• Grinding wheel central hole: 203 mm
• Machine weight: 6,000 kg

Applications

• Threaded shafts and spindles
• Lead screws and worm-type components
• Thread gauges and measuring tools
• Precision threaded parts for machine tools

Commercial Details

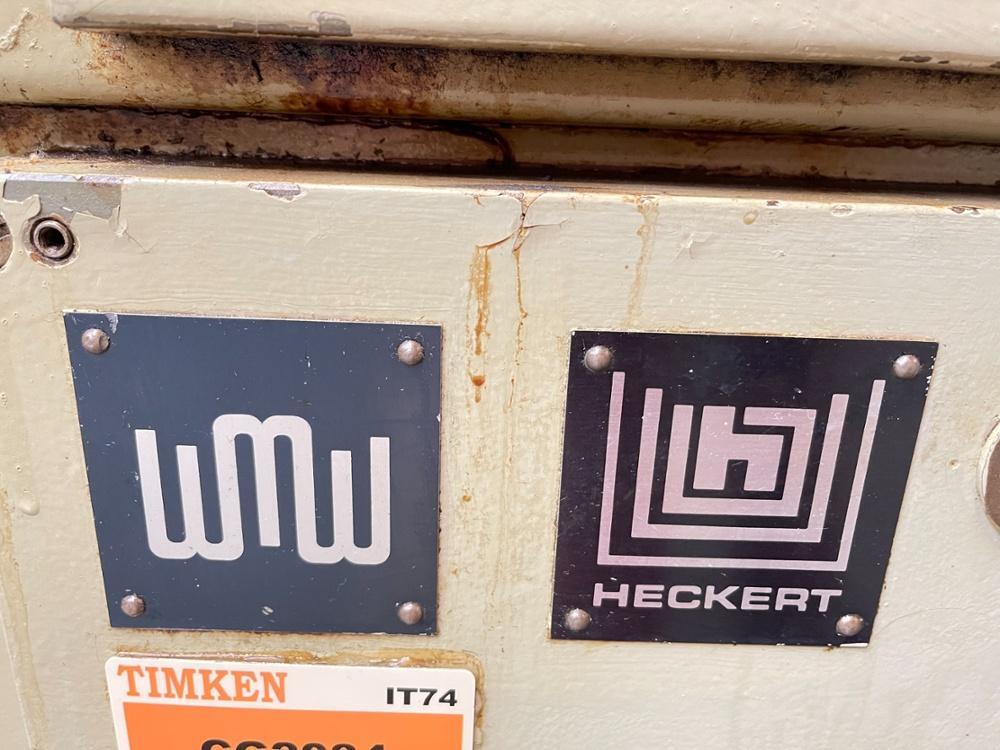

• Make: WMW Heckert
• Model: GSXT 315/1
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpieces can it grind? It grinds diameters of 2–315 mm with a maximum grinding length of 1,000 mm and a maximum workpiece weight of 160 kg.
• What grinding wheels does it take? Wheels from 360 to 500 mm in diameter and 8 to 50 mm wide, with a 203 mm central hole.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which tooling, wheels and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements for its 6,000 kg weight.
