Used WMW Modul ZFTK 250×5 Straight Bevel Gear Machine | A.K. Machine Traders, Navi Mumbai, India

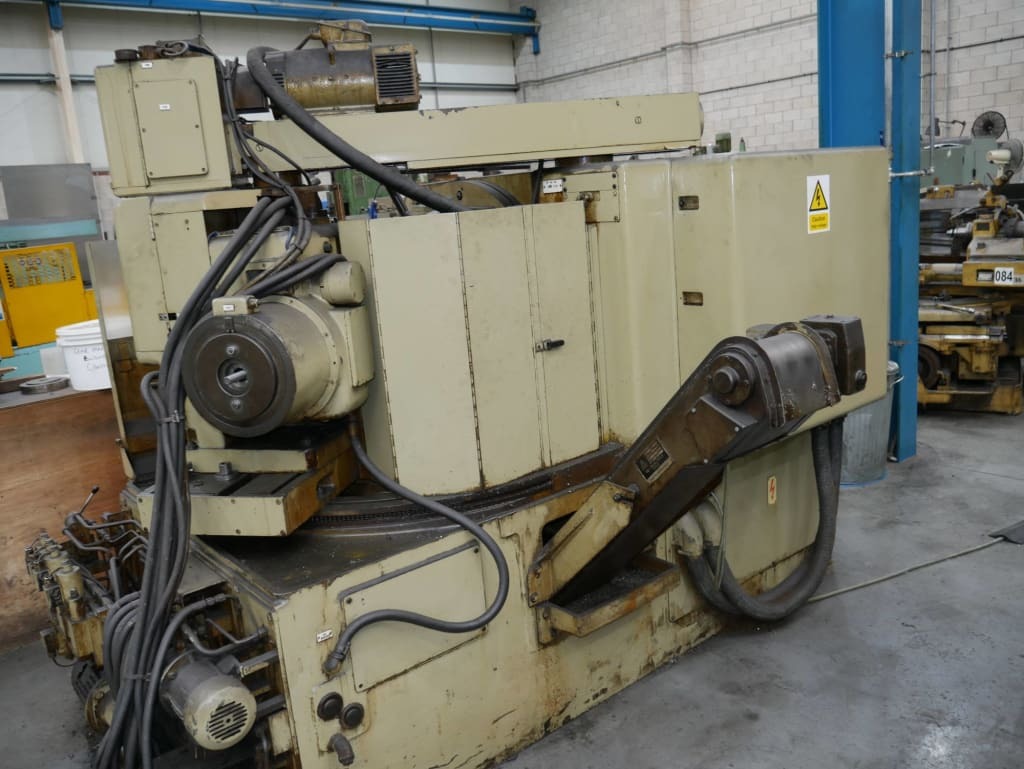

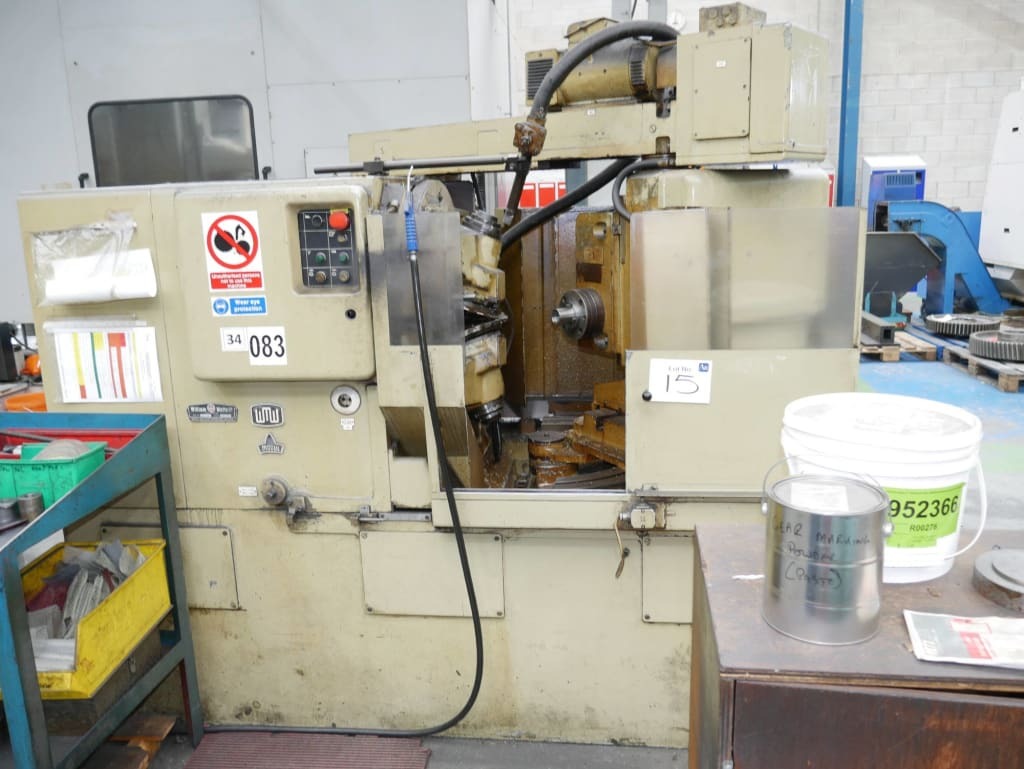

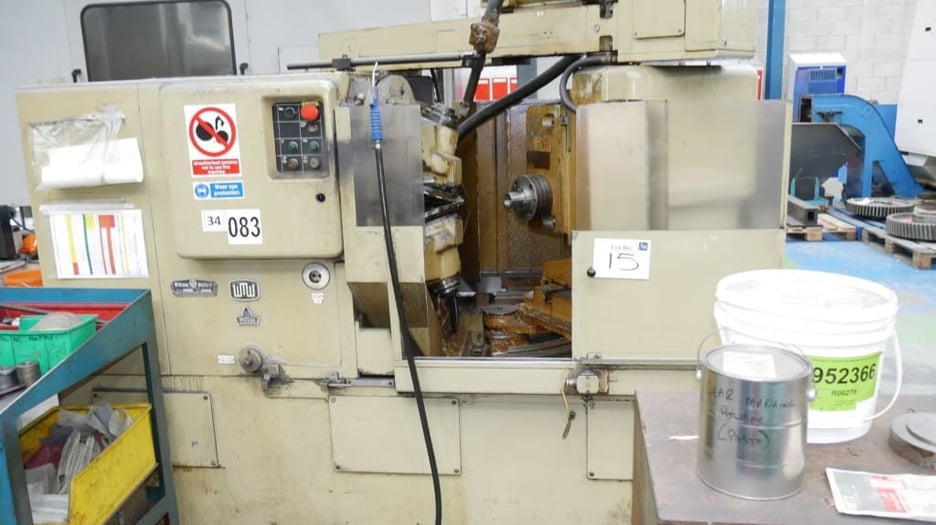

This used WMW Modul ZFTK 250×5 straight bevel gear machine is available from A.K. Machine Traders in Navi Mumbai, India. It cuts straight bevel gears.

It handles gear wheels up to 250 mm in diameter and 40 mm in width, with a maximum module of 7 mm and 6 to 100 teeth. The maximum gear ratio is 1:6.

Technical Specifications

• Model: ZFTK 250×5
• Maximum gear wheel diameter: 250 mm
• Maximum gear wheel width: 40 mm
• Maximum module: 7 mm
• Number of teeth: 6–100
• Maximum gear ratio: 1:6
• Milling speed: 35.5–71 rpm
• Milling head radial adjustment: 0–110 mm

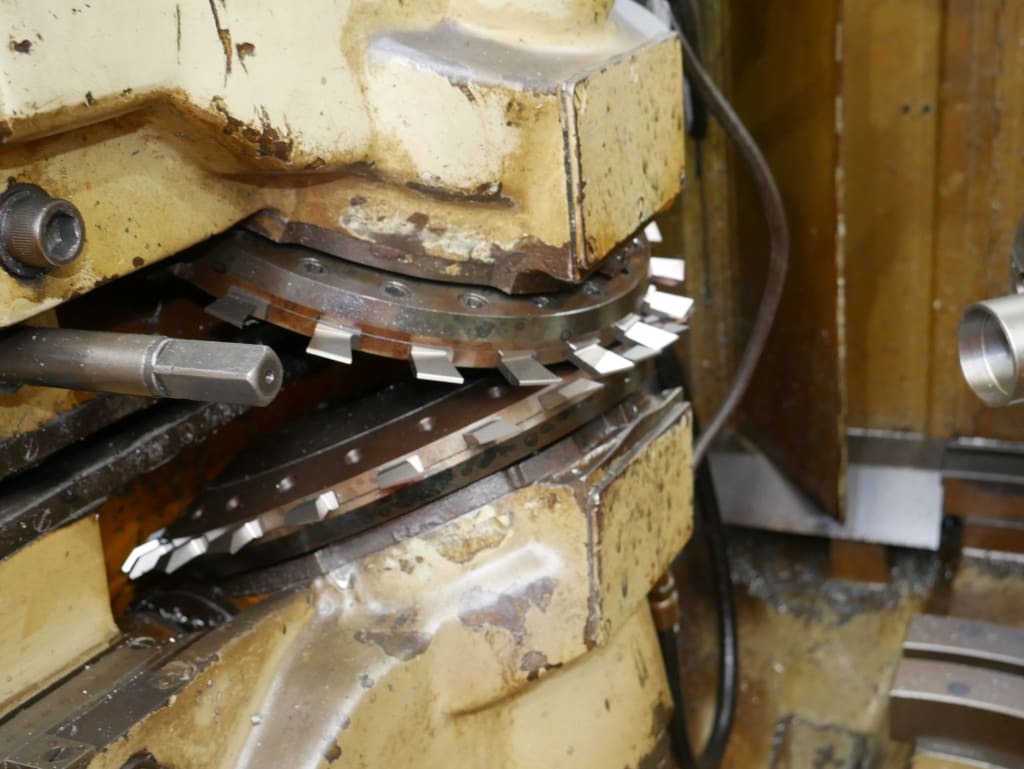

• Milling head diameter: 355 mm
• Operating voltage: 380 V
• Machine dimensions (L x W x H): 3,000 x 2,000 x 2,100 mm
• Total weight: 6,500 kg

Applications

• Straight bevel gears for power transmission
• Gears that transmit drive between shafts at an angle
• Gearbox and differential components
• Gear production for general engineering and workshops

Commercial Details

• Make: WMW Modul
• Model: ZFTK 250×5
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of gear can it cut? It cuts straight bevel gears up to 250 mm in diameter and 40 mm in width, with a maximum module of 7 mm.
• How many teeth can it cut? It cuts gears with 6 to 100 teeth, at a maximum gear ratio of 1:6.
• What are its size and weight? It measures 3,000 x 2,000 x 2,100 mm (L x W x H) and weighs 6,500 kg.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which tooling, milling heads and change gears are included, the condition of the electrics for 380 V operation, and loading and shipping arrangements.
