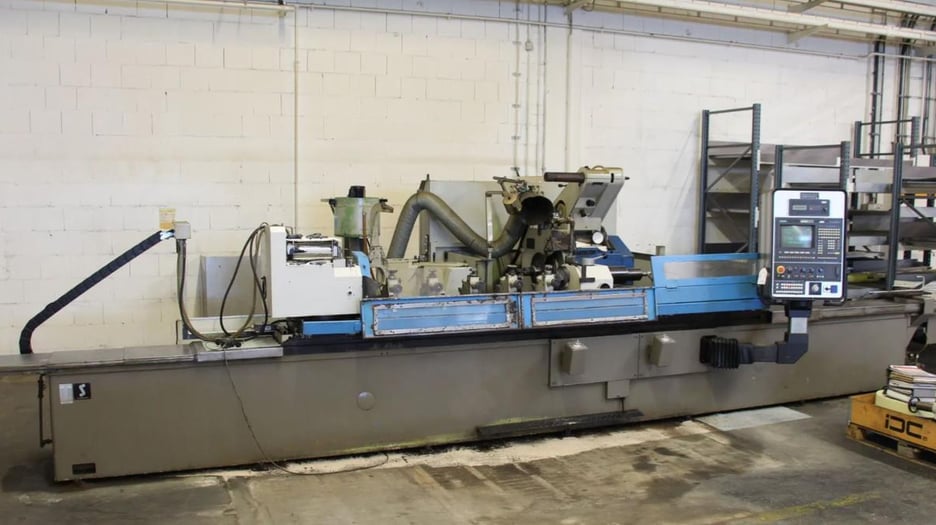

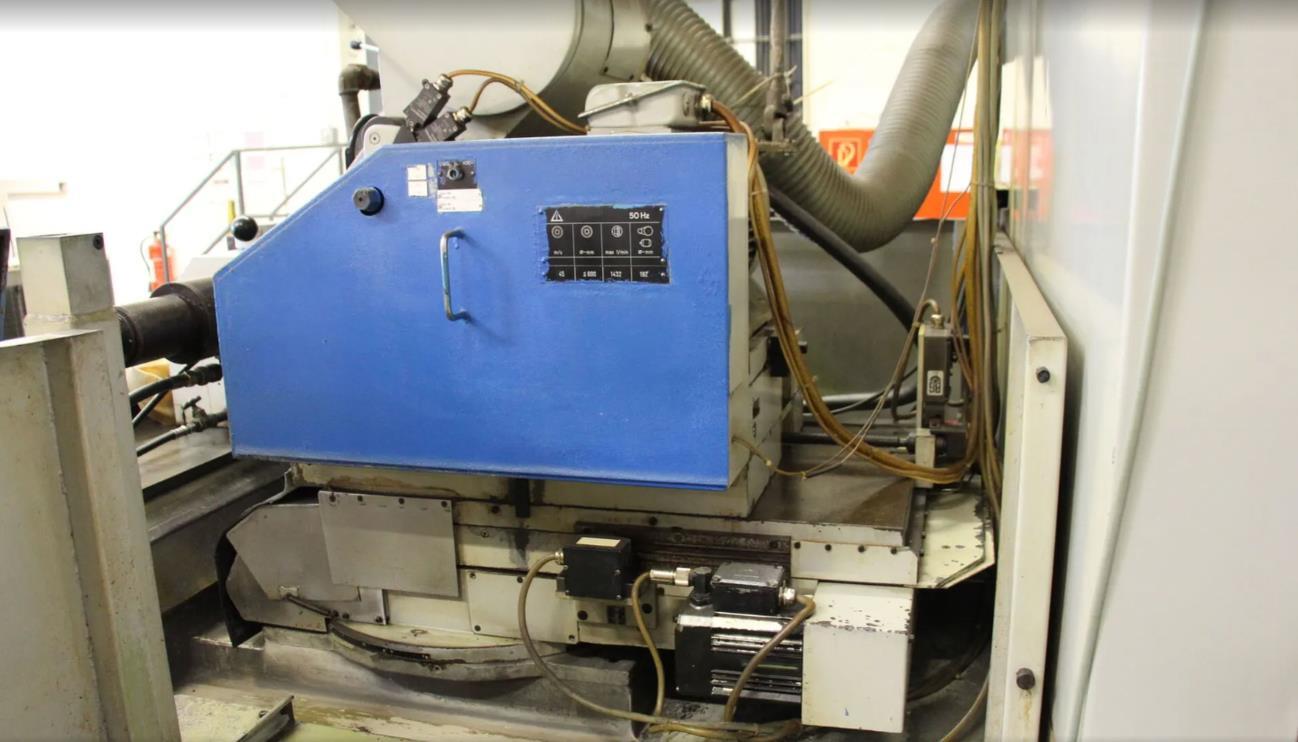

Used WMW SA 6/2U-CNC x 3000 CNC Cylindrical Grinder | A.K. Machine Traders, Navi Mumbai, India

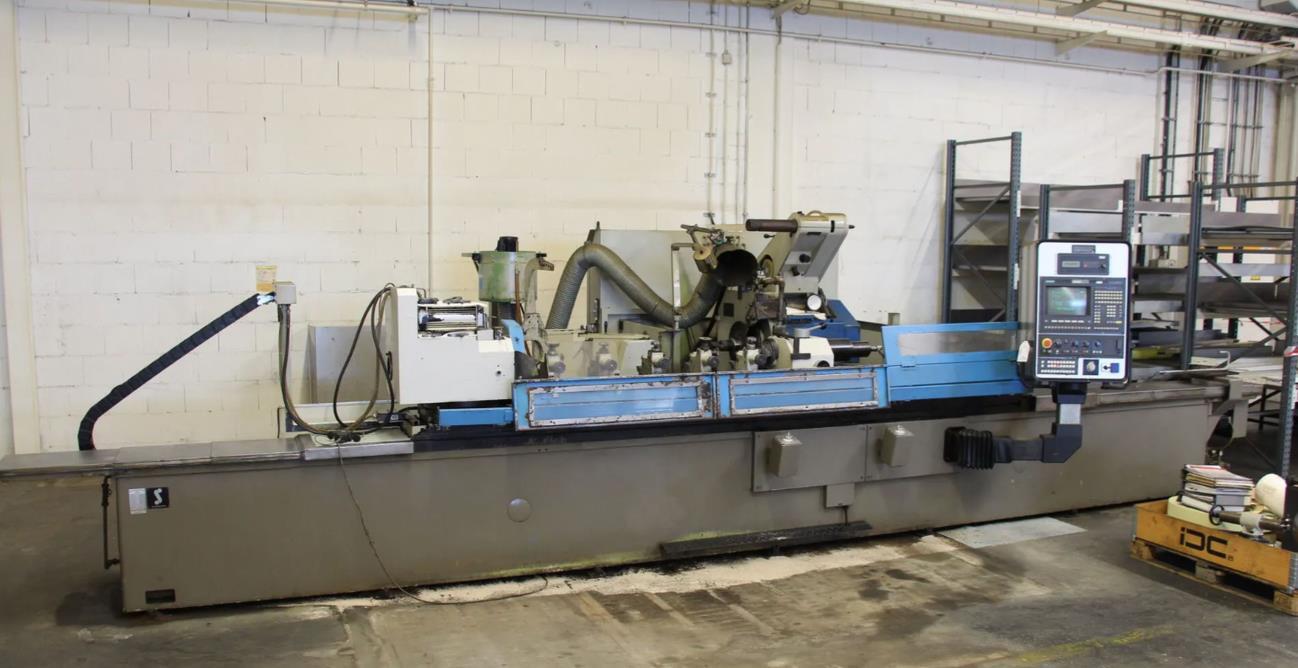

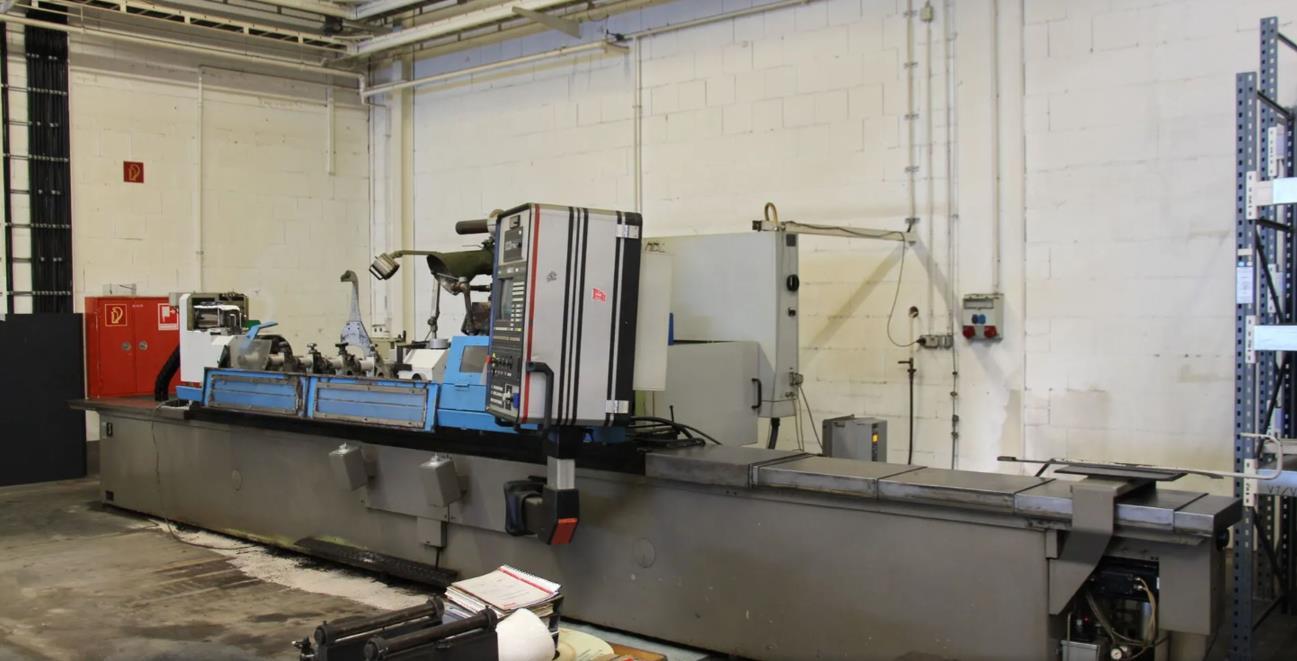

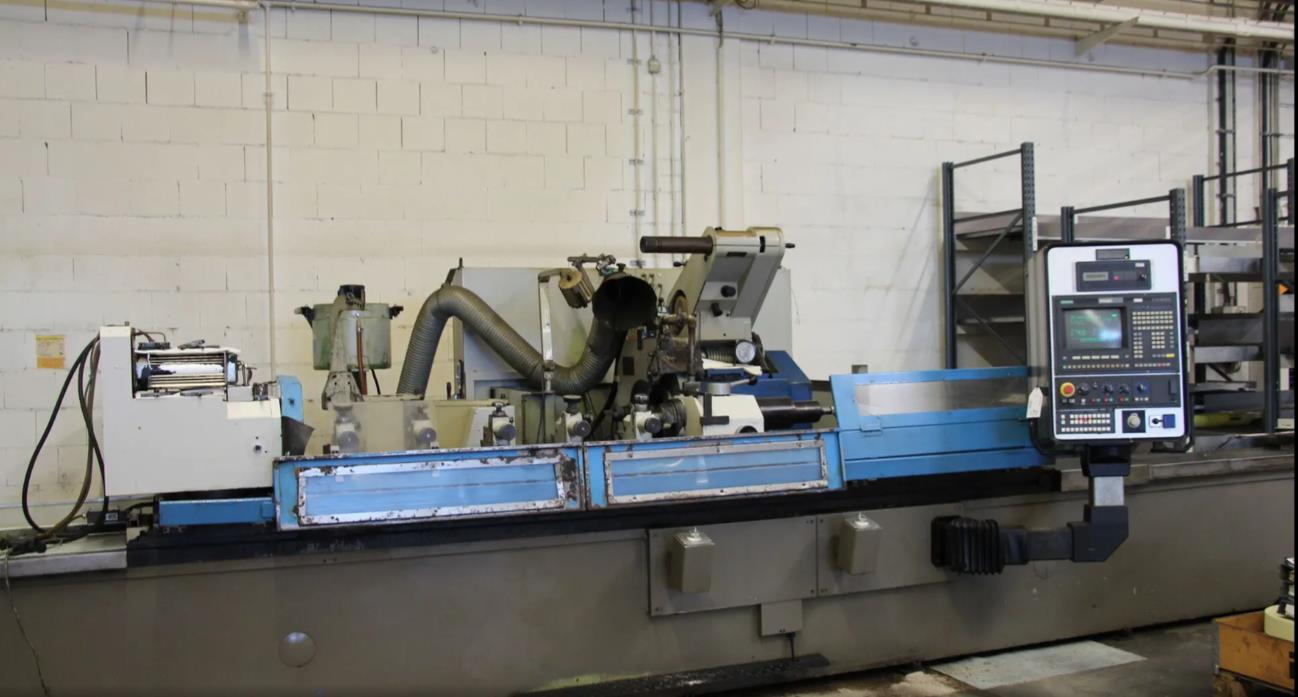

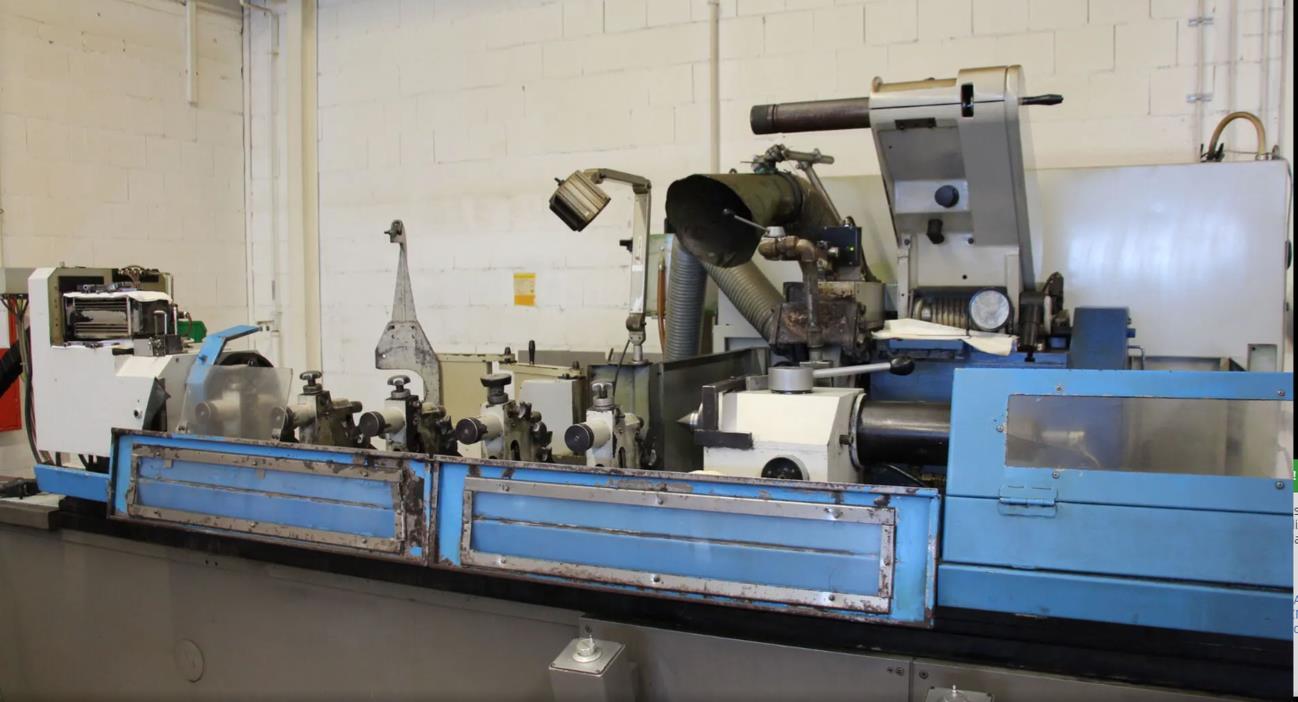

This used WMW SA 6/2U-CNC x 3000 CNC cylindrical grinder is available from A.K. Machine Traders in Navi Mumbai, India. It grinds round workpieces held between centres under CNC control.

It takes work up to 515 mm in diameter over a distance of 2,875 mm between centres, with a 260 mm centre height. The wheel head can be turned through 30°, and the drive is rated at 20 kW.

Key Features

• CNC-controlled cylindrical grinding
• Grinding wheel head turnable by 30°
• MK6 tailstock taper
• Bore grinding capability up to 230 mm

Technical Specifications

• Model: SA 6/2U-CNC x 3000
• Max. grinding diameter: 515 mm
• Centre to centre: 2,875 mm
• Centre height: 260 mm
• Max. grinding depth: 350 mm
• Max. grindable bore: 230 mm
• X-axis travel: 202 mm
• Z-axis travel: 3,152 mm
• Grinding wheel swivel: 30°
• Workpiece spindle speed: 2–250 rpm
• Max. grinding wheel size: 635 × 125 × 304 mm
• Tailstock taper: MK6
• Drive capacity: 20 kW
• Weight: approx. 10,000 kg

Applications

• Long shafts and spindles
• Rolls and roller journals
• Large cylindrical and tapered components
• Bored or internal-diameter work up to 230 mm
• Precision finishing of hardened turned parts

Commercial Details

• Make: WMW
• Model: SA 6/2U-CNC x 3000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum grinding diameter? It grinds up to 515 mm in diameter, with 2,875 mm between centres.
• What is the workpiece spindle speed? The workpiece spindle head runs from 2 to 250 rpm.
• How large a grinding wheel does it take? The maximum wheel size is 635 × 125 × 304 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm the CNC control and electrics, which wheels, tooling and accessories are included, and the loading and shipping arrangements for a machine of about 10,000 kg.
