Used WMW SASL 125/1E Centerless Grinder | A.K. Machine Traders, Navi Mumbai, India

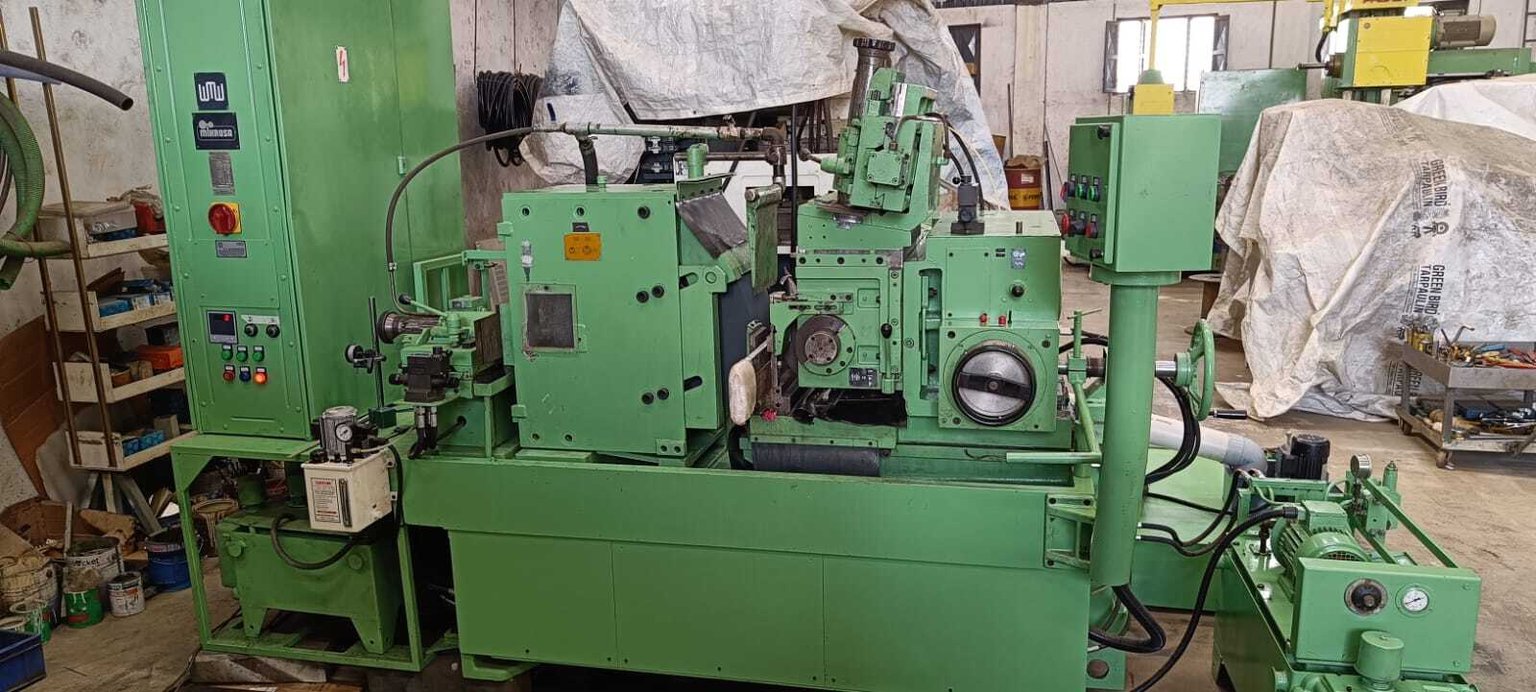

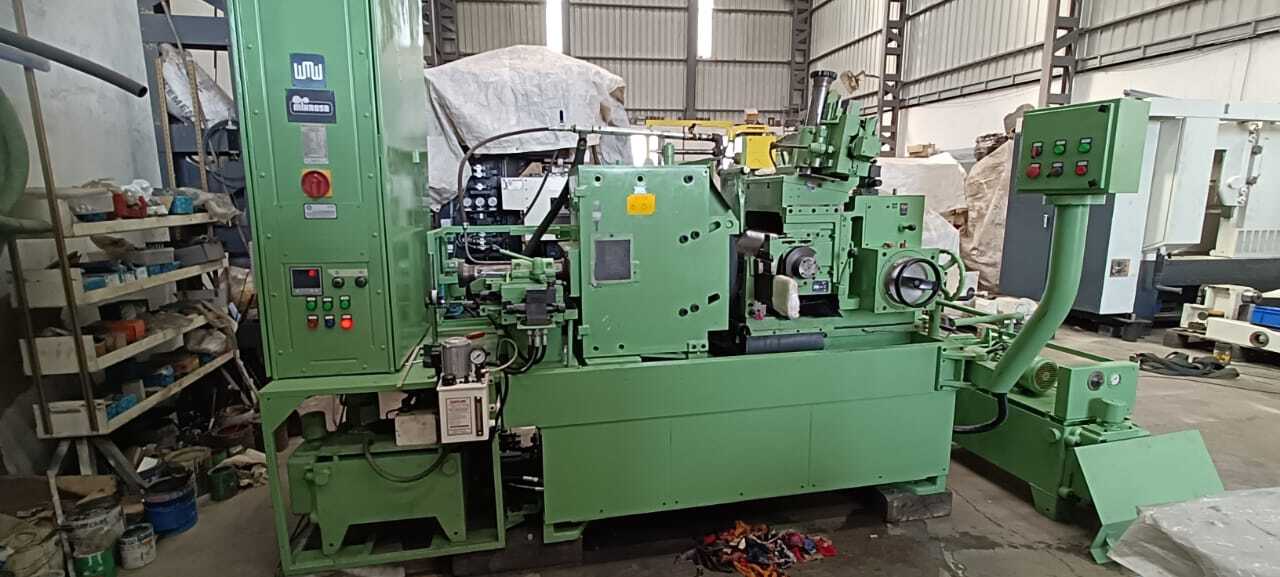

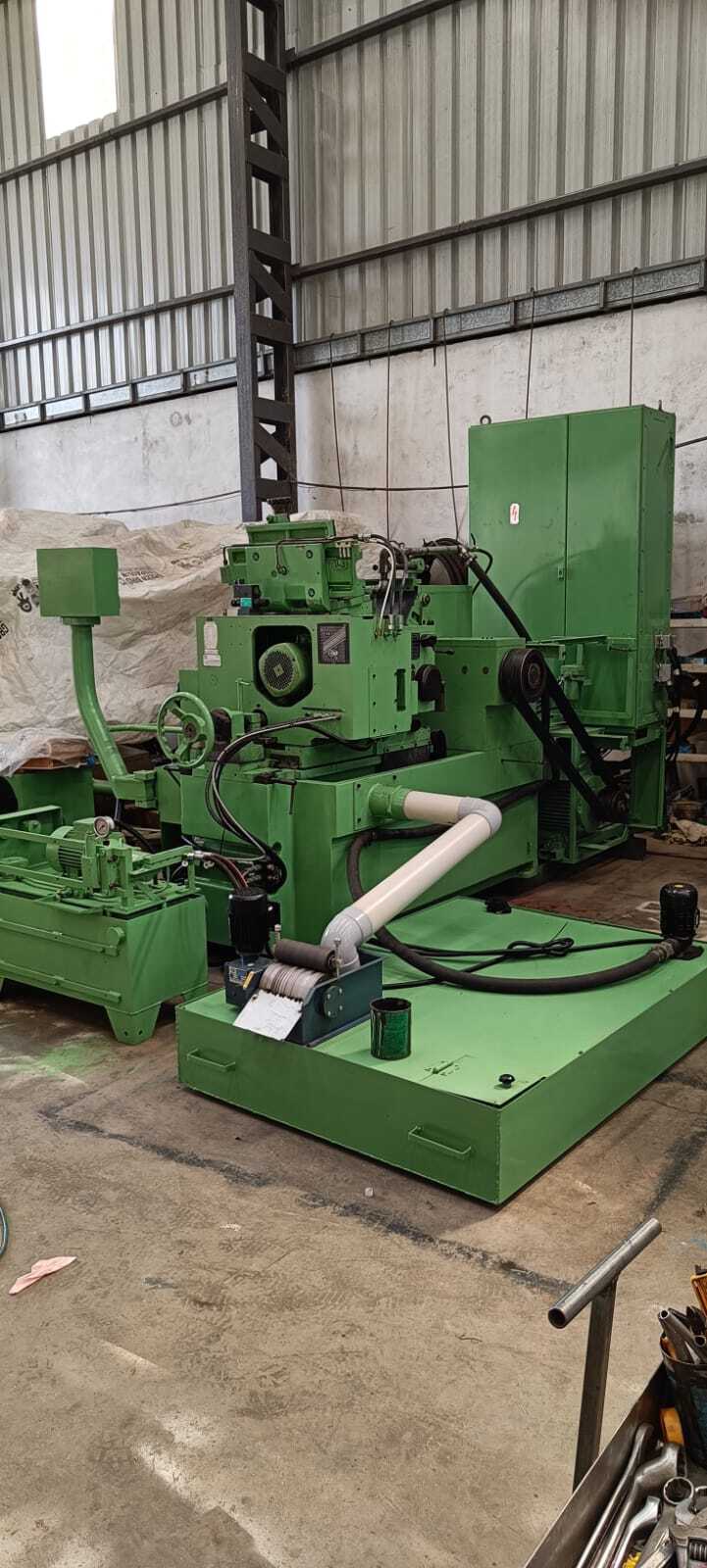

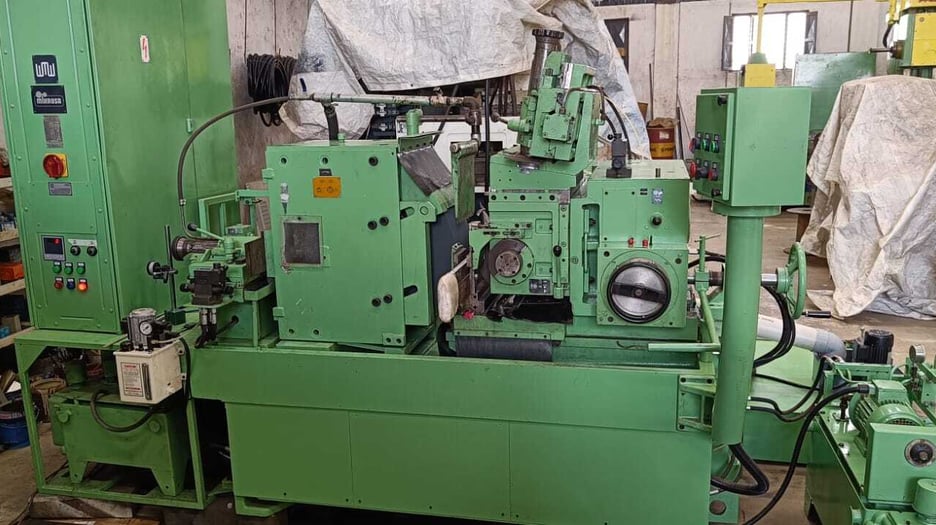

This used WMW SASL 125/1E centerless grinder is available from A.K. Machine Traders in Navi Mumbai, India. A centerless grinder grinds round workpieces without holding them between centres.

It grinds diameters from 1.5 mm up to 125 mm over a grinding length of 245 mm. The spindle is rated at 22/30 kW, with a total connected power of 34 kW on a 380 V supply.

Technical Specifications

• Model: SASL 125/1E
• Grinding diameter: 1.5–125 mm
• Grinding length: 245 mm
• Grinding wheel width: 250 mm
• Grinding wheel diameter: 630 mm
• Regulating wheel diameter: 315 mm
• Speed: 45 m/sec
• Wheel speed: 11–140 rpm
• Voltage: 380 V
• Spindle power: 22/30 kW
• Total power: 34 kW
• Dimensions: 3,180 x 1,620 x 2,300 mm
• Weight: 8 t

Applications

• Grinding round bars and shafts to size
• Finishing pins, rollers and bushes
• Producing cylindrical parts in batch production
• Grinding small-diameter precision components

Commercial Details

• Make: WMW
• Model: SASL 125/1E
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What diameter range can it grind? It grinds workpieces from 1.5 mm to 125 mm in diameter.
• What is the grinding length? The grinding length is 245 mm.
• What power supply does it need? It runs on 380 V, with a 22/30 kW spindle and 34 kW total power.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, and whether an inspection is possible. Confirm which wheels, work rests and accessories are included, the condition of the control and electrics, and loading and shipping arrangements for the 8 t machine.
