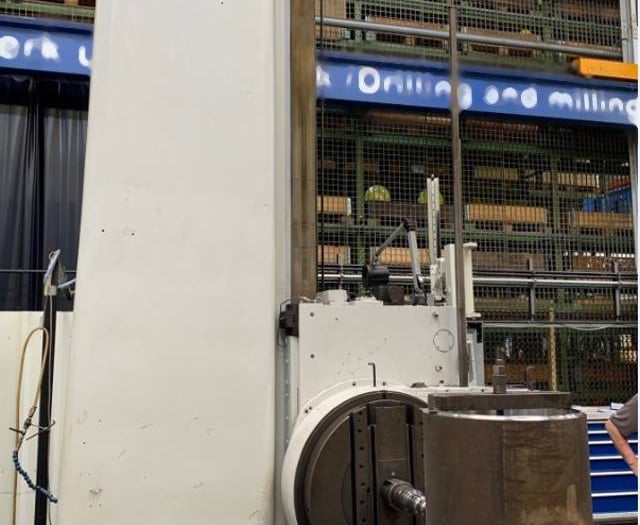

Used WMW Union BFT 125/III Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used WMW Union BFT 125/III boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A boring machine enlarges and finishes holes in large workpieces and can also face their surfaces.

It has a 125 mm working spindle with an 80 mm taper and a 930 mm spindle stroke. A 785 mm faceplate allows facing work up to 1,400 mm in diameter, and the clamping table takes loads up to 3,000 kg.

Key Features

• Faceplate for facing and flange facing work
• Clamping table with a 1,400 x 1,600 mm surface
• Work rest positioned up to 3,700 mm from the faceplate

Technical Specifications

• Model: WMW Union BFT 125/III
• Working spindle diameter: 125 mm
• Spindle taper: 80 mm
• Spindle stroke (W): 930 mm
• Max. diameter at facing work: 1,400 mm
• Max. boring diameter without faceplate: 750 mm
• Max. flange facing diameter without faceplate: 1,400 mm
• Faceplate diameter: 785 mm
• Max. distance, spindle centre to chucking area (Y): 2,000 mm
• Max. distance, faceplate to work rest: 3,700 mm
• Clamping table height: 970 mm
• Longitudinal travel to spindle (Z): 2,000 mm
• Cross motion (X): 1,600 mm
• Table surface: 1,400 x 1,600 mm
• Table loading: 3,000 kg
• Total installed power: 17.5 kW
• Overall dimensions: 7,325 x 3,500 x 4,780 mm
• Machine weight: 30,800 kg

Applications

• Boring large holes in heavy castings and fabrications
• Facing and flange facing of large components
• Machining housings and large machine frames
• General heavy engineering and toolroom work

Commercial Details

• Make: WMW Union
• Model: BFT 125/III
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size workpiece can it take? The table surface is 1,400 x 1,600 mm and carries up to 3,000 kg.
• What is the spindle size and stroke? The working spindle is 125 mm in diameter with an 80 mm taper and a 930 mm stroke.
• How much space and power does it need? It measures 7,325 x 3,500 x 4,780 mm, weighs 30,800 kg and has 17.5 kW total installed power.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, which accessories and tooling are included, the condition of the control and electrics, and loading and shipping arrangements for a machine of this weight.
