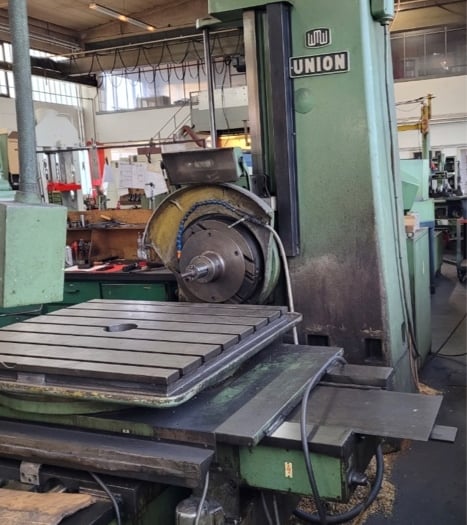

Used WMW Union BFT 80/2 Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used WMW Union BFT 80/2 horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring machine machines holes and surfaces on large workpieces using a horizontal spindle.

It has an 80 mm spindle with a CM5 taper and a speed range of 8–1,250 rpm. Table travel is 2,000 mm longitudinally and 1,000 mm across, with 1,000 mm of vertical spindle carriage travel. The turntable takes workpieces up to 2,500 kg.

Key Features

• Automatic table advance of 700 mm/min
• Rotary table with 360° rotation

Technical Specifications

• Model: WMW Union BFT 80/2
• Spindle diameter: 80 mm
• Spindle taper: CM5
• Spindle speed: 8–1,250 rpm
• Table cross travel (X): 1,000 mm
• Spindle carriage vertical travel (Y): 1,000 mm
• Table longitudinal travel (W): 2,000 mm
• Table area: 1,120 x 1,000 mm
• Maximum load on turntable: 2,500 kg
• Automatic table advance: 700 mm/min
• Rotary table: 360°
• Weight: 11,000 kg
• Dimensions: 5,900 x 2,600 x 2,700 mm

Applications

• Boring and machining large housings and gearbox casings
• Machining machine frames and heavy fabrications
• General toolroom and heavy engineering work
• Drilling and facing of large workpieces

Commercial Details

• Make: WMW Union
• Model: BFT 80/2
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle size and taper? The spindle diameter is 80 mm with a CM5 taper.
• What is the maximum workpiece weight? The turntable accepts workpieces up to 2,500 kg.
• How much does the machine weigh? It weighs 11,000 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and loading and shipping arrangements.
