Used WMW ZFWVG 250 x 800 Thread Milling Machine | A.K. Machine Traders, Navi Mumbai, India

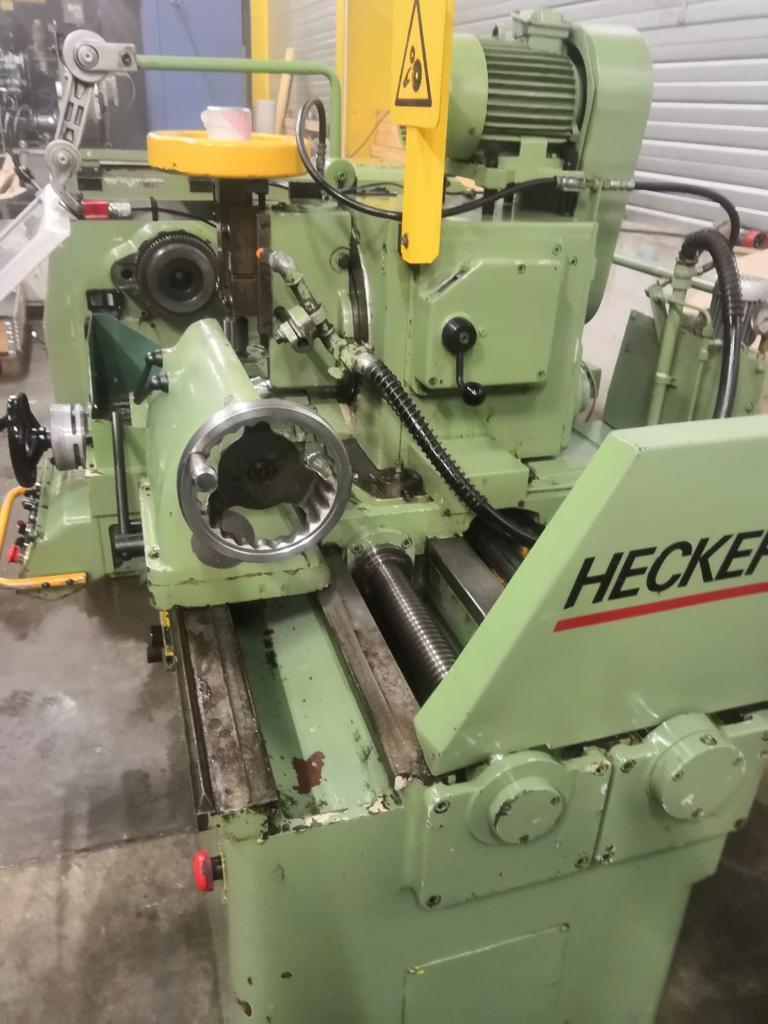

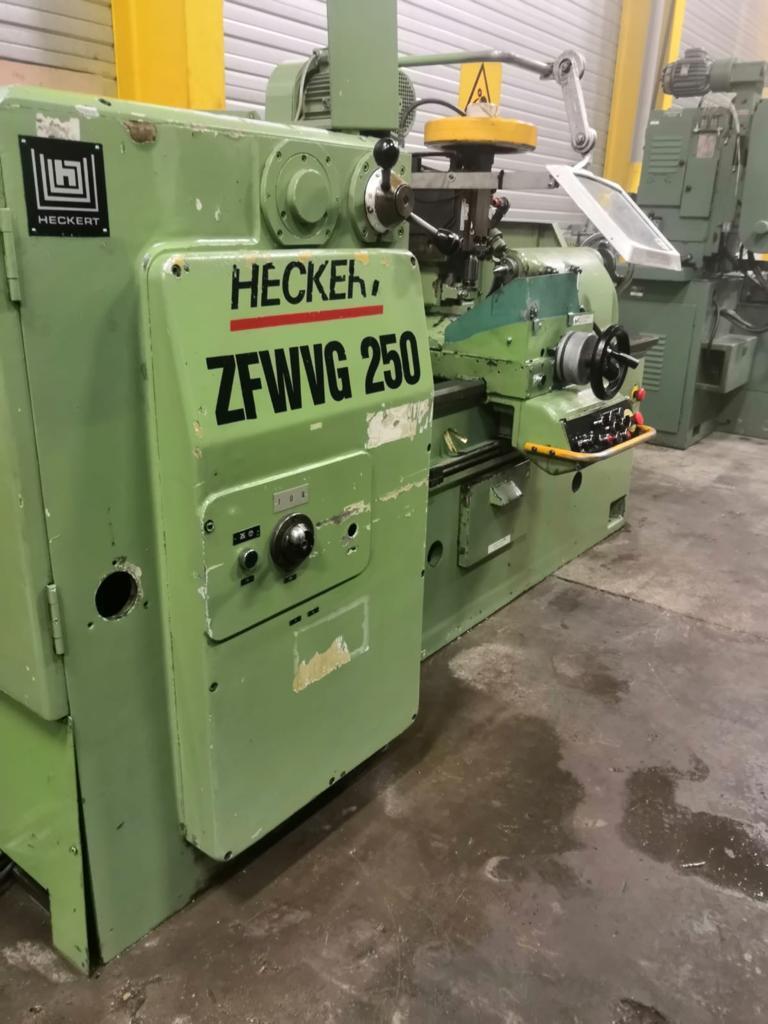

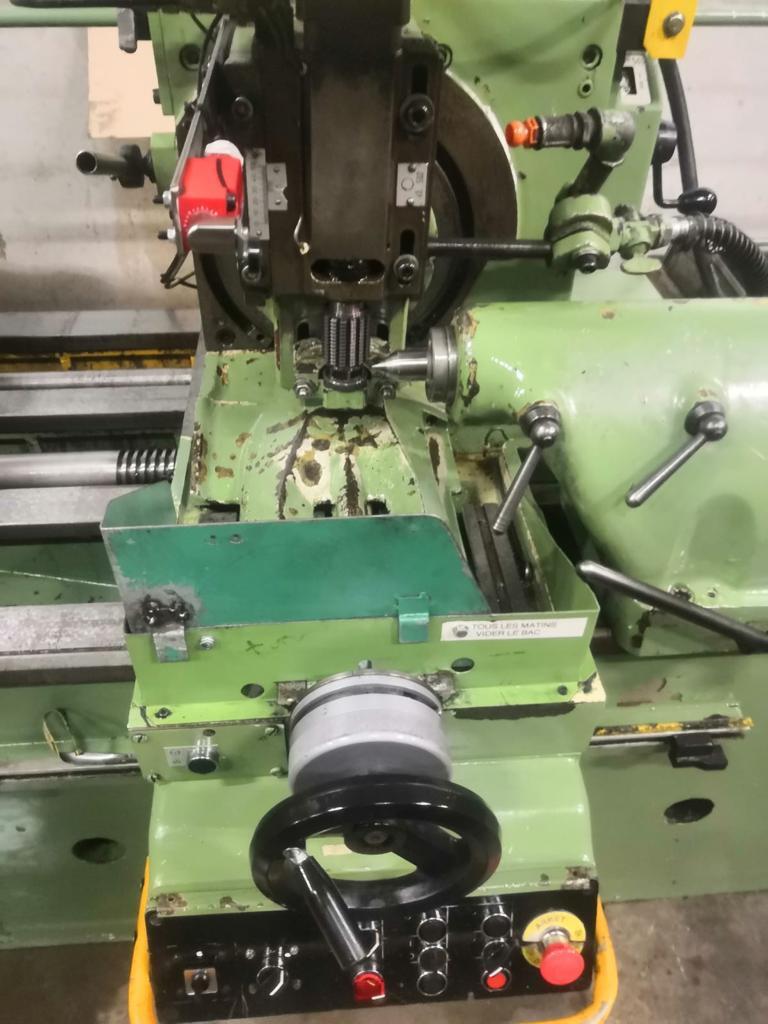

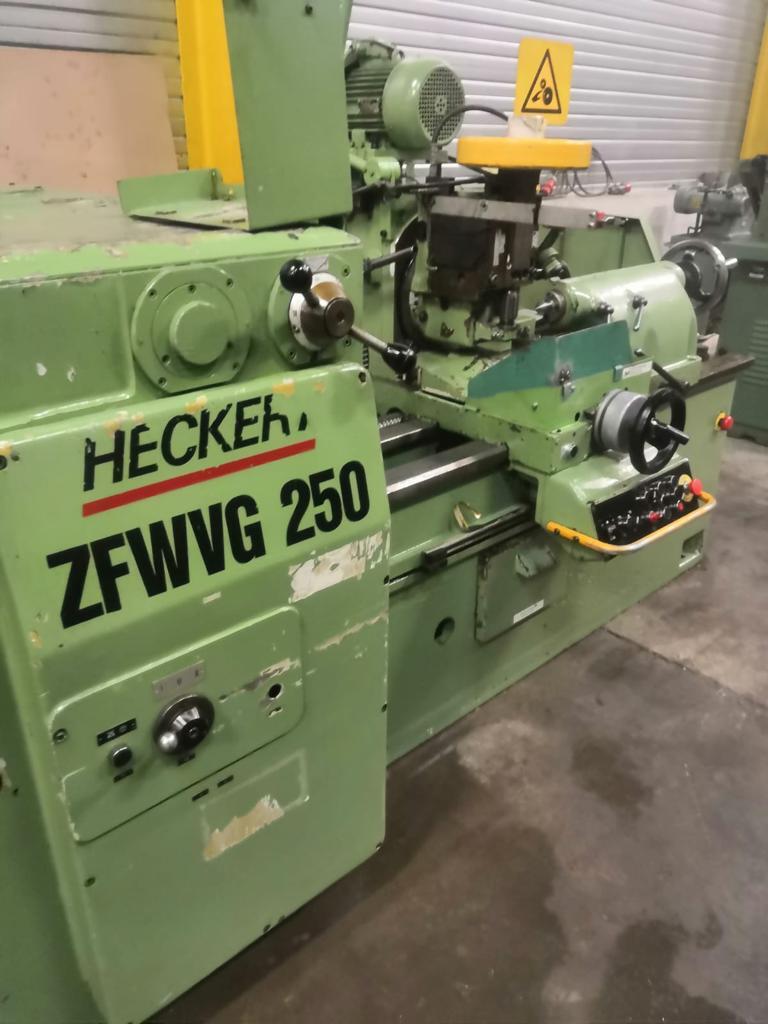

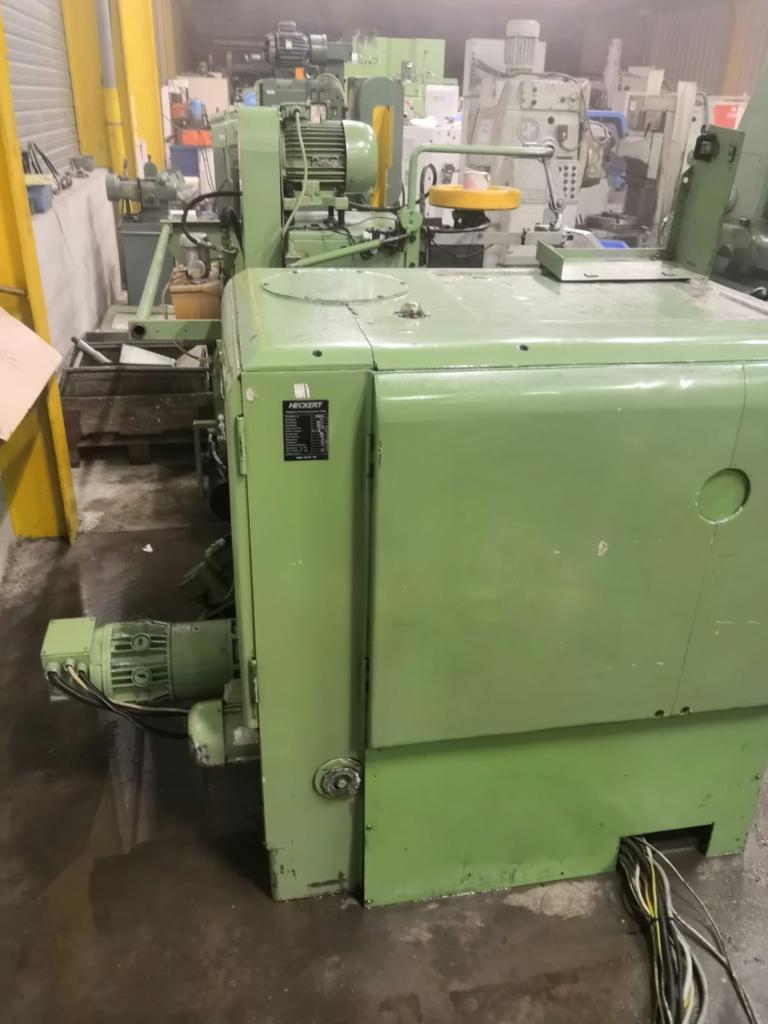

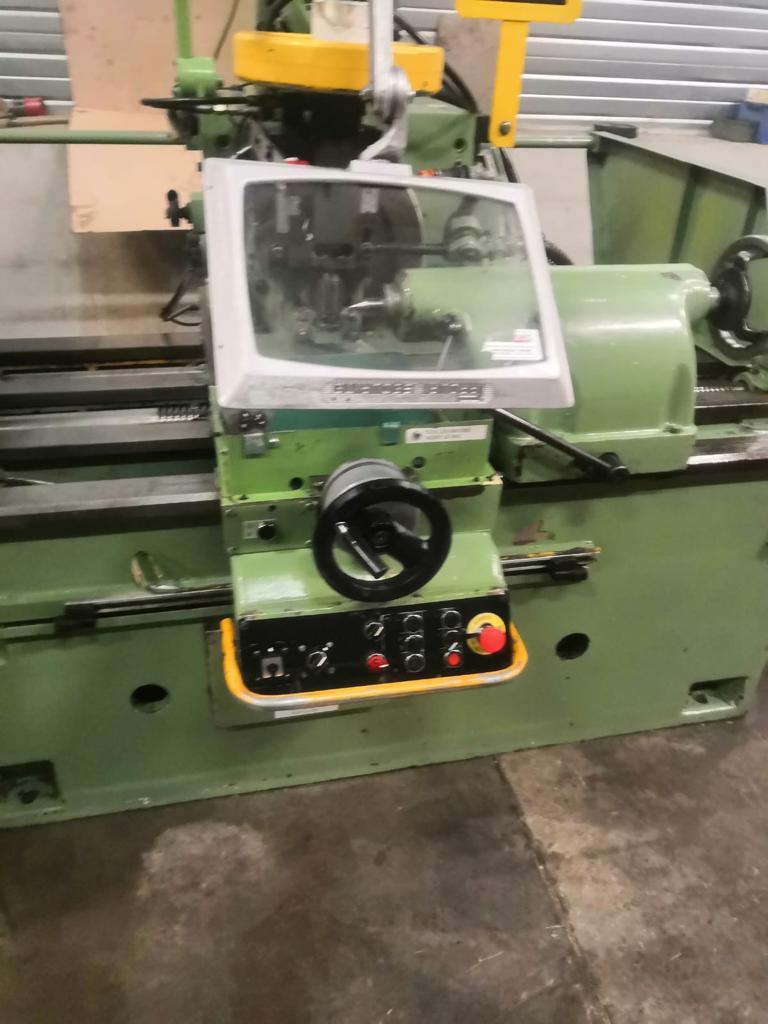

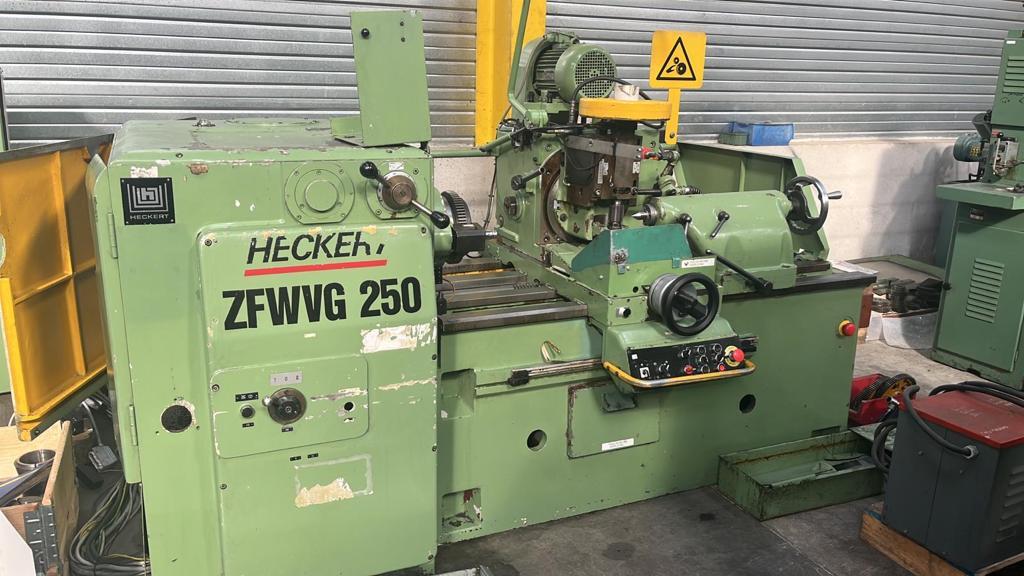

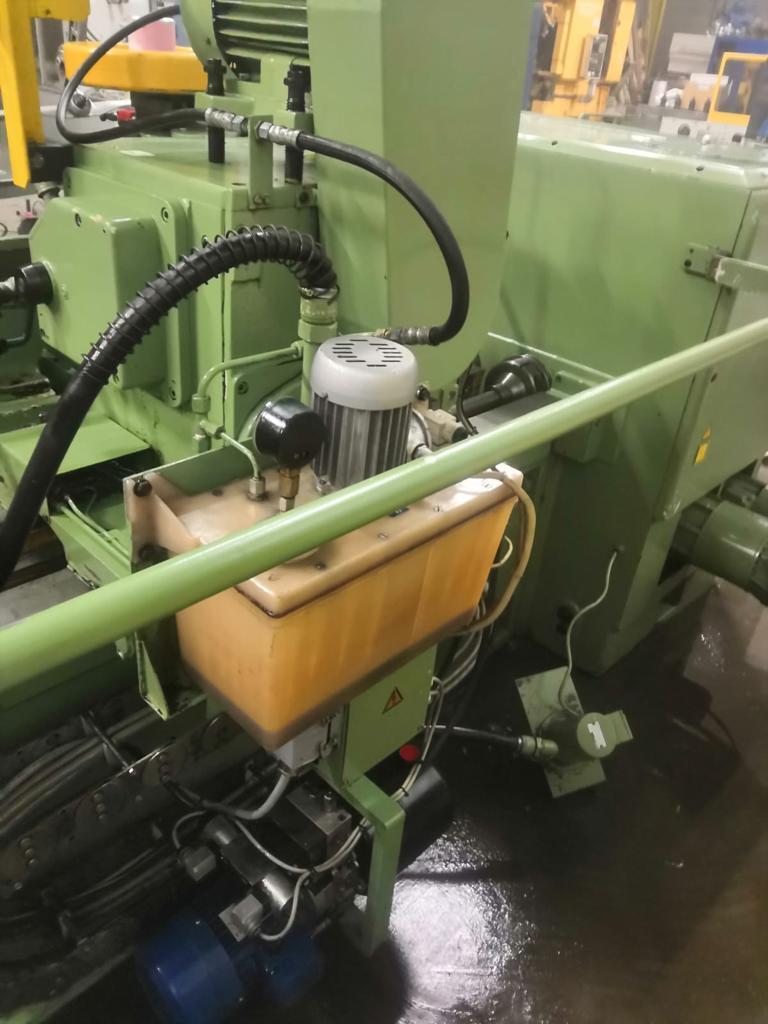

This used WMW ZFWVG 250 x 800 thread milling machine is available from A.K. Machine Traders in Navi Mumbai, India. It is a thread milling machine, used to cut threads and worm profiles on round workpieces.

It takes workpieces up to 500 mm in diameter over the bed and 250 mm over the saddle, with a milling length of 800 mm and a maximum module of 7. The main drive is 4.0 kW.

Key Features

• Infinitely variable longitudinal feed
• Wide range of workpiece turning speeds and feed-roll settings

Technical Specifications

• Model: ZFWVG 250 x 800
• Workpiece diameter over bed: 500 mm
• Workpiece diameter over saddle: 250 mm
• Milling length: 800 mm
• Max. module: 7
• Centre height over bed: 260 mm
• Workpiece spindle bore: 102 mm
• Workpiece turning speeds: 0.0034–2.65 rpm
• Feed rolls: 0.027–5.66 mm/rev
• Longitudinal feed, infinitely variable: 0.3–198 mm/min
• Main drive: 4.0 kW
• Voltage / frequency: 380 V / 50 Hz
• Total power requirement: 9.5 kW
• Dimensions: 2,800 x 2,500 x 1,600 mm
• Weight: 3,500 kg

Applications

• Worm shafts and worm gears
• Lead screws and threaded shafts
• Threaded components for general machinery

Commercial Details

• Make: WMW
• Model: ZFWVG 250 x 800
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the milling length? The machine has a milling length of 800 mm.
• What power does it need? The main drive is 4.0 kW and the total power requirement is 9.5 kW on 380 V, 50 Hz.
• How big and heavy is it? It measures 2,800 x 2,500 x 1,600 mm and weighs 3,500 kg.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and how loading and shipping will be handled.
