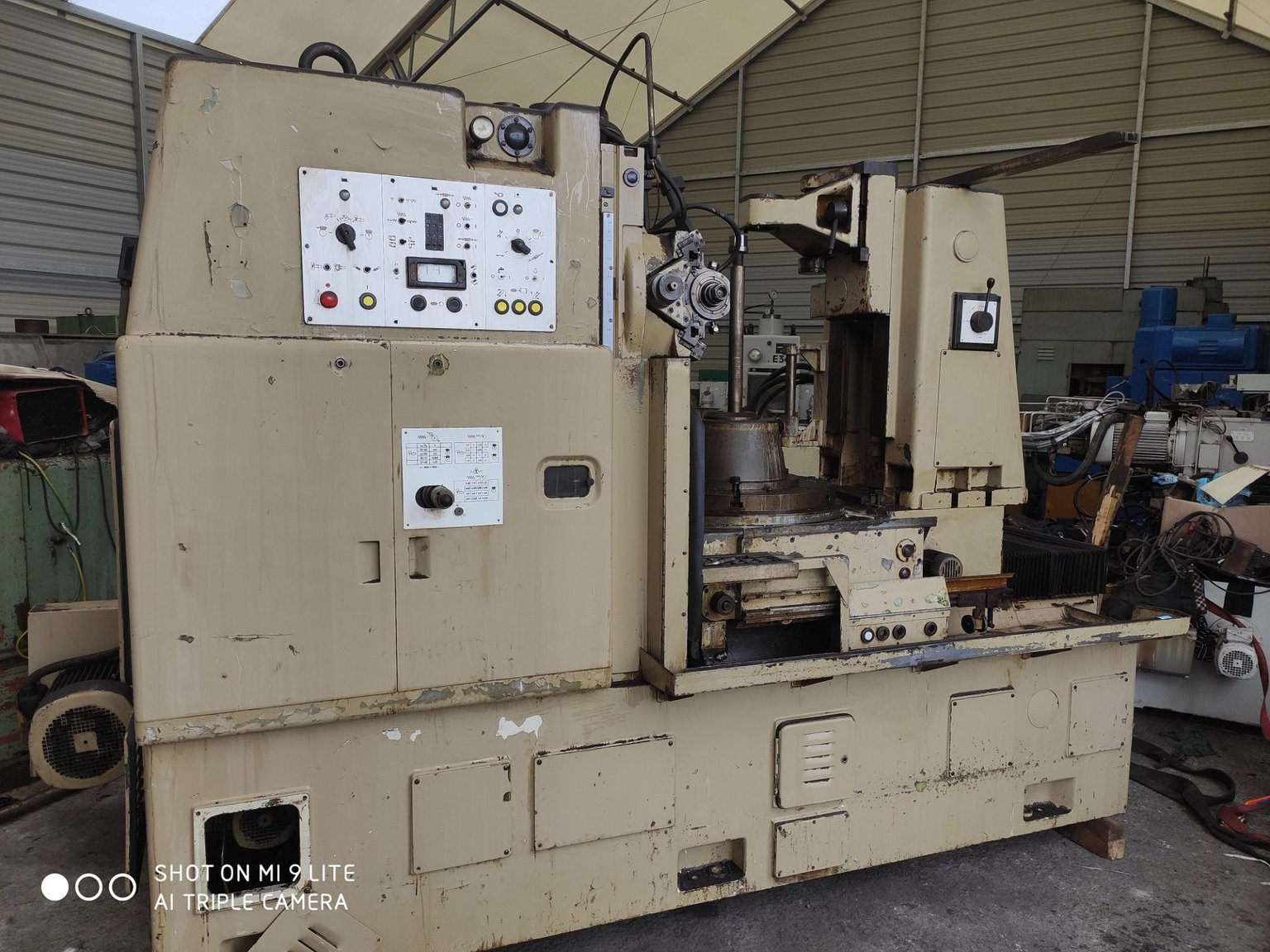

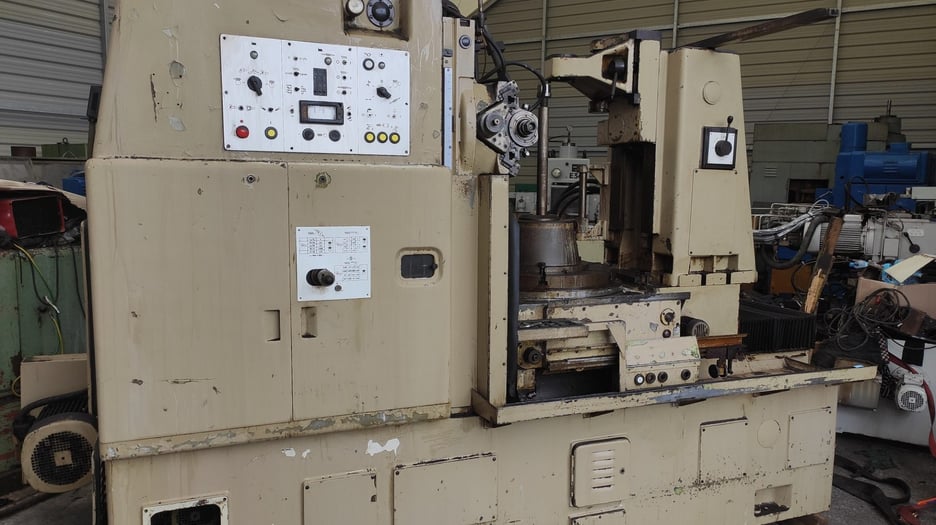

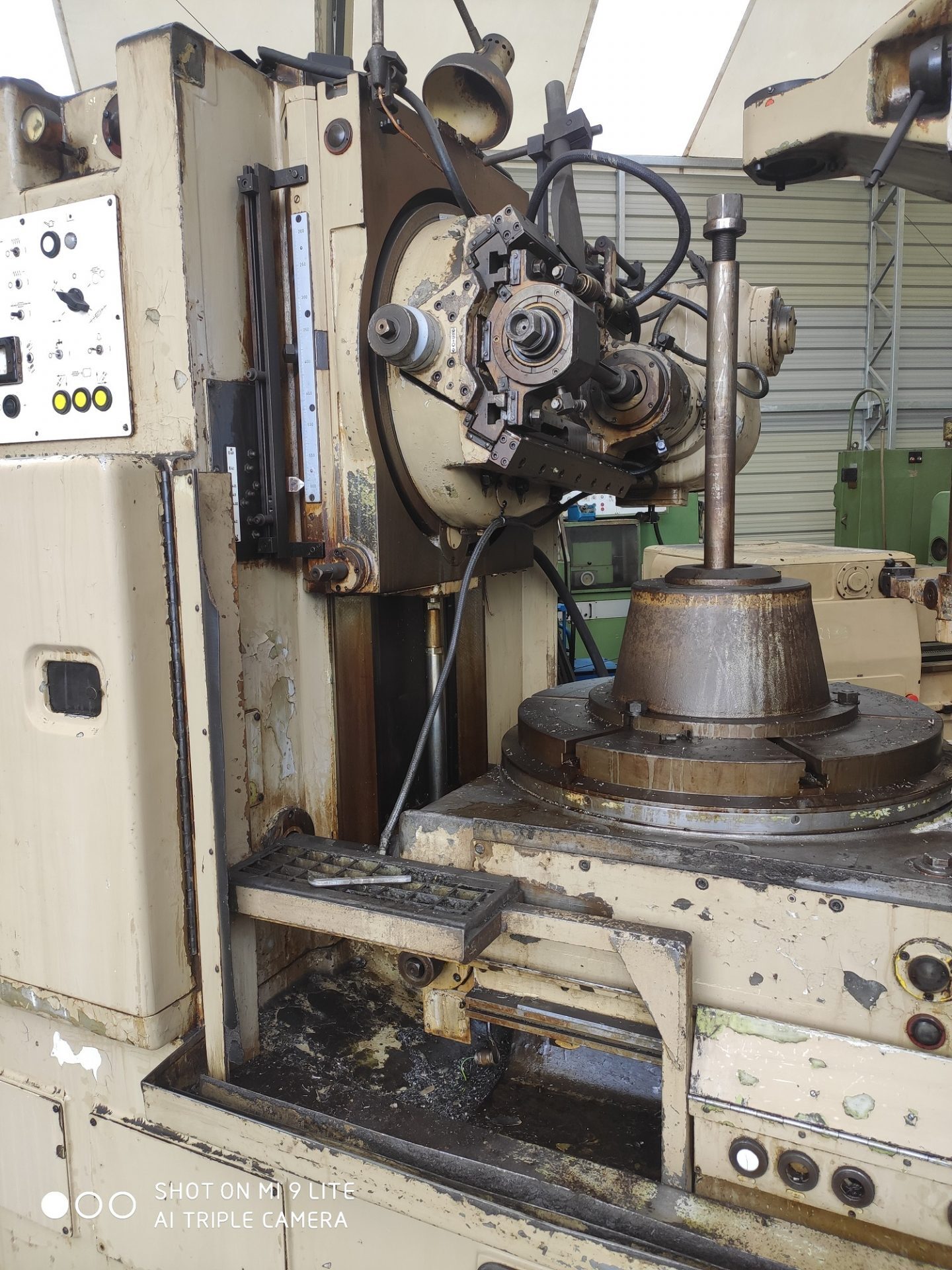

This used WMW ZFWZ 800 x 10 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. A gear hobbing machine cuts gear teeth using a rotating hob.

It takes gears up to 800 mm in outside diameter without a steady and up to 500 mm with one, at a maximum module of 10. The table is 700 mm across with a 200 mm bore, and the hob can travel 410 mm vertically.

Technical Specifications

• Model: WMW ZFWZ 800 x 10
• Table size: 700 mm
• Table bore: 200 mm
• Maximum gear O/D without steady: 800 mm
• Maximum gear O/D with steady: 500 mm
• Maximum module: 10
• Maximum hob O/D: 195 mm
• Maximum hob length: 220 mm
• Maximum vertical travel of hob: 410 mm
• Maximum tangential (hob shift): 150 mm

Applications

• Cutting spur and helical gears
• Gear production for gearboxes and drive systems
• Gear manufacture for general engineering and workshop use

Commercial Details

• Make: WMW
• Model: ZFWZ 800 x 10
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the largest gear this machine can cut? It handles gears up to 800 mm outside diameter without a steady and up to 500 mm with a steady, at a maximum module of 10.
• What hob size does it take? It accepts hobs up to 195 mm in outside diameter and 220 mm in length.
• How much hob travel does it have? Vertical hob travel is up to 410 mm and tangential hob shift is up to 150 mm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, which accessories, steady and change gears are included, the condition of the electrics and control, and loading and shipping arrangements.
