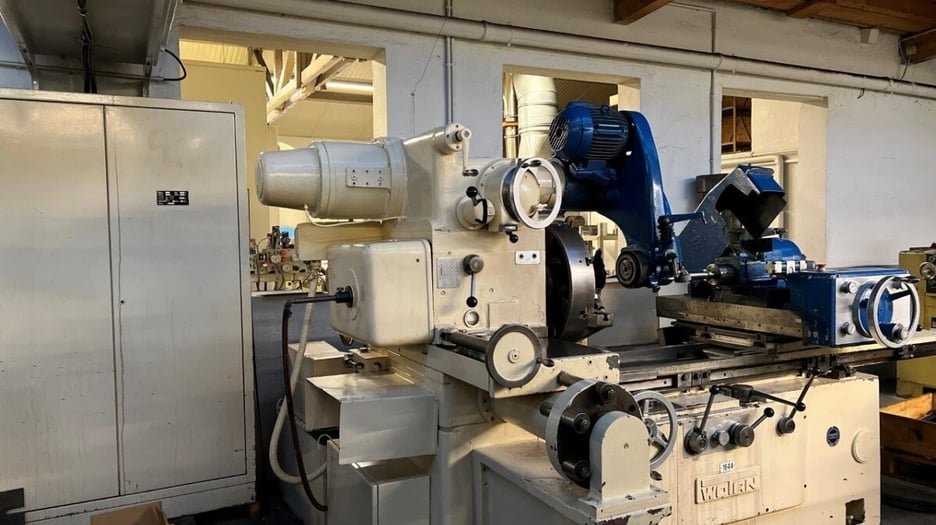

Used Wotan 8G Internal and Face Grinding Machine | A.K. Machine Traders, Navi Mumbai, India

This used Wotan 8G internal and face grinding machine is available from A.K. Machine Traders in Navi Mumbai, India. It grinds bores and faces on workpieces.

It handles an internal diameter of 500 mm and a grinding depth of 500 mm, with a swing diameter of 600 mm and a maximum clamping length of 1,350 mm. The grinding head swivels ±30°, and the machine weighs approximately 6.5 t.

Technical Specifications

• Model: Wotan 8G
• Internal diameter: 500 mm
• Grinding depth: 500 mm
• Swing diameter: 600 mm
• Maximum clamping length: 1,350 mm
• Swivel: ±30°
• Longitudinal feed: 5–800 mm
• Speed: 3000 U/min
• Weight: approx. 6.5 t
• Dimensions: approx. 3.5 x 1.9 x 2.1 m

Applications

• Grinding bores in large rings and housings
• Finishing faces of machined components
• Precision grinding of bearing seats and sleeves
• Tool room and general engineering work on larger workpieces

Commercial Details

• Make: Wotan
• Model: 8G
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What size of bore can it grind? It has an internal diameter capacity of 500 mm and a grinding depth of 500 mm.
• What is the maximum workpiece length? The maximum clamping length is 1,350 mm, with a swing diameter of 600 mm.
• How big and heavy is the machine? It measures approximately 3.5 x 1.9 x 2.1 m and weighs approximately 6.5 t.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, inspection arrangements, which accessories and tooling are included, the condition of the control and electrics, and loading and shipping options.
