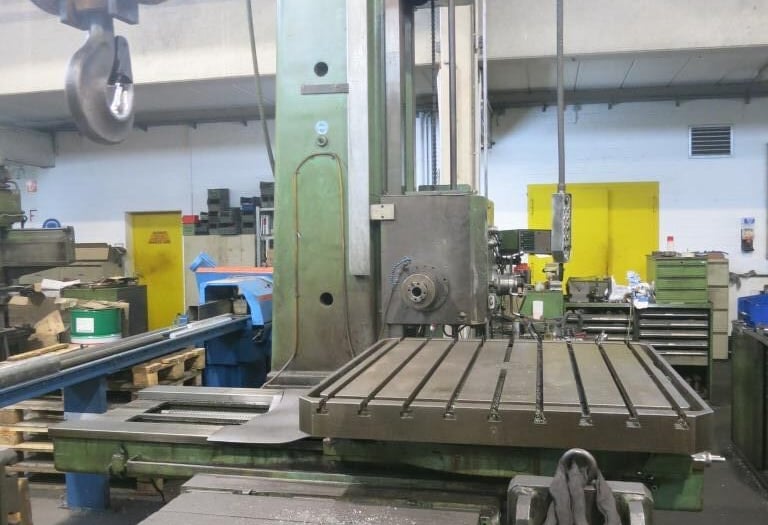

Used Wotan B 130 Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used Wotan B 130 boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A boring machine enlarges and finishes holes and machines large workpieces held on its table.

It has a 130 mm spindle with an MK 6 taper, travels of 1,400 mm in X, 1,650 mm in Y and 1,700 mm in Z, and a further 1,150 mm in W. The table measures 1,620 x 1,400 mm and the spindle speed runs from 3.5 to 1,000 rpm.

Key Features

• Digital readout (listed as Mitutoyo)
• Facing chuck included

Technical Specifications

• Model: Wotan B 130
• Spindle: 130 mm, MK 6
• X travel: 1,400 mm
• Y travel: 1,650 mm
• Z travel: 1,700 mm
• W travel: 1,150 mm
• Table size: 1,620 x 1,400 mm
• Spindle speed: 3.5–1,000 rpm
• Digital readout: Mitutoyo
• Facing chuck: Included

Applications

• Boring and finishing large holes in heavy components
• Machining housings and casings
• Machining large fabricated and cast parts
• General toolroom and heavy engineering work

Commercial Details

• Make: Wotan
• Model: B 130
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What spindle does the Wotan B 130 have? It has a 130 mm spindle with an MK 6 taper.
• What are the axis travels? X is 1,400 mm, Y is 1,650 mm, Z is 1,700 mm and W is 1,150 mm.
• What is the table size and speed range? The table is 1,620 x 1,400 mm and spindle speed is 3.5–1,000 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which tooling and accessories are included besides the facing chuck, the condition of the digital readout and electrics, and loading and shipping arrangements.
