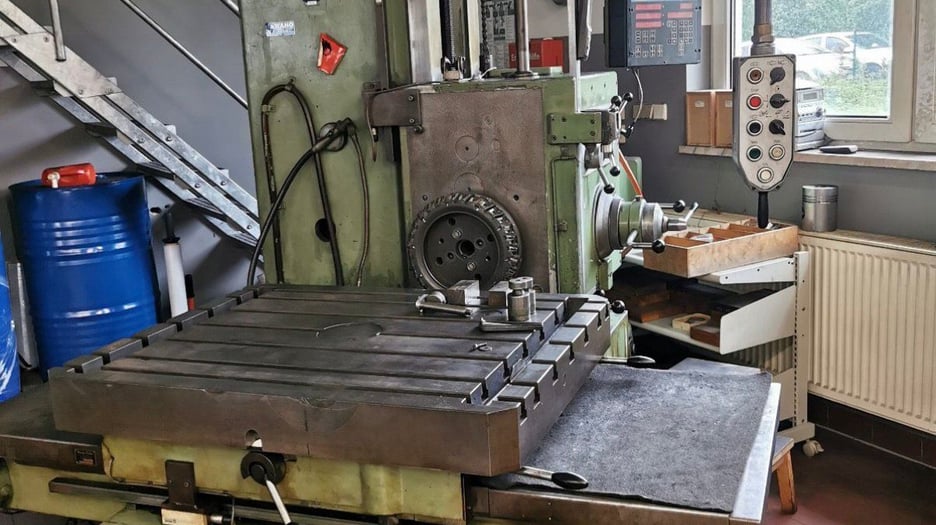

Used Wotan B 75 Horizontal Boring Mill | A.K. Machine Traders, Navi Mumbai, India

This used Wotan B 75 horizontal boring mill is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring mill machines and bores workpieces using a horizontal spindle.

It has a 76.2 mm (3") spindle with a #40 taper, a built-in rotary table and a table capacity of 1,814 kg. Twenty spindle speeds run from 15 to 1,200 RPM, and the machine is driven by a 10 HP motor.

Key Features

• Built-in rotary table
• Right angle head included
• Pendant control
• Threading capability of 3–48 TPI

Technical Specifications

• Model: B 75
• Spindle diameter: 76.2 mm (3")
• Spindle taper: #40
• Spindle quill travel: 596.9 mm (23.5")
• Spindle speeds: 15–1,200 RPM (20 speeds)
• Table size: 800.1 x 1,003.3 mm (31.5" x 39.5")
• Table travel: 1,219.2 mm (48")
• Longitudinal saddle travel: 800.1 mm (31.5")
• Vertical head travel: 863.6 mm (34")
• Threading capability: 3–48 TPI
• Capacity: 1,814 kg (4,000 lb)
• Motor: 10 HP
• Rotary table: Built in
• Right angle head: Yes
• Control: Pendant

Applications

• Boring and machining of medium-sized castings and fabrications
• Machining of housings and gearbox casings
• General toolroom and maintenance machining
• Jobs needing facing, drilling and boring from several sides using the rotary table

Commercial Details

• Make: Wotan
• Model: B 75
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle size and speed range? The spindle is 76.2 mm (3") in diameter with a #40 taper, and 20 speeds cover 15–1,200 RPM.
• How large is the table and what can it carry? The table measures 800.1 x 1,003.3 mm and the machine is rated for a capacity of 1,814 kg (4,000 lb).
• Does it include a rotary table and right angle head? Yes, it has a built-in rotary table and a right angle head.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included (such as the right angle head), the condition of the pendant control and electrics, and loading and shipping arrangements.
