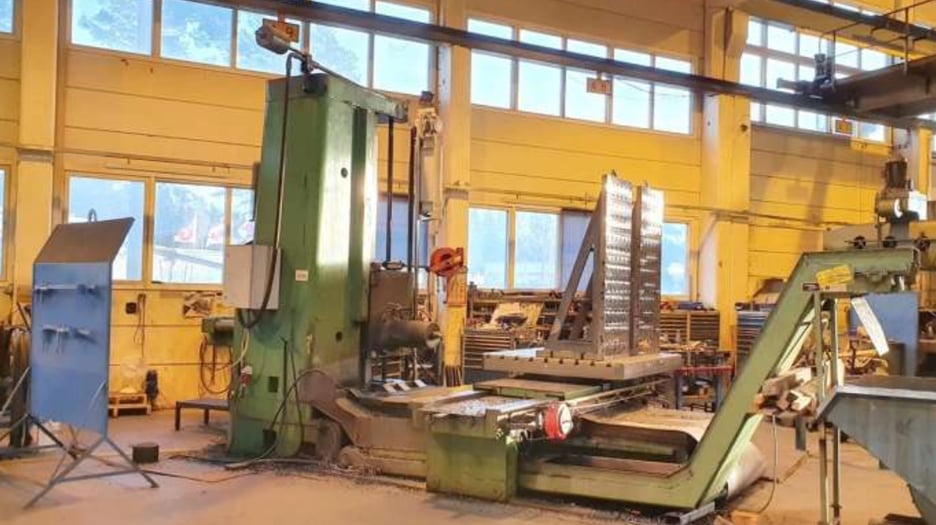

Used Wotan B130S Horizontal Boring Mill | A.K. Machine Traders, Navi Mumbai, India

This used Wotan B130S horizontal boring mill is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring mill machines large workpieces with a horizontally mounted spindle.

It has travels of 2,300 mm in X, 1,850 mm in Y and 850 mm in Z, plus 2,000 mm of W-axis travel. The table takes loads up to 5 t, and the spindle is 130 mm in diameter with an ISO 50 taper.

Technical Specifications

• Model: Wotan B130S
• X-travel: 2,300 mm
• Y-travel: 1,850 mm
• Z-travel: 850 mm
• W-axis travel: 2,000 mm
• Spindle diameter: 130 mm
• Spindle taper: ISO 50
• Maximum table load: 5 t
• Total power requirement: 18 kW
• Machine weight: 22,500 kg

Applications

• Machining large housings and casings
• Boring and drilling large workpieces
• Milling heavy fabrications and castings
• General heavy engineering and toolroom work

Commercial Details

• Make: Wotan
• Model: B130S
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? X is 2,300 mm, Y is 1,850 mm, Z is 850 mm and the W-axis is 2,000 mm.
• What is the maximum table load? The table carries up to 5 t.
• How much power does it need and how heavy is it? Total power requirement is 18 kW and the machine weighs 22,500 kg.
• What should I ask when enquiring? Ask for photos or video of the machine under power, inspection options, the control type and electrics, which accessories and tooling are included, and the loading and shipping arrangements for a machine of 22,500 kg.
