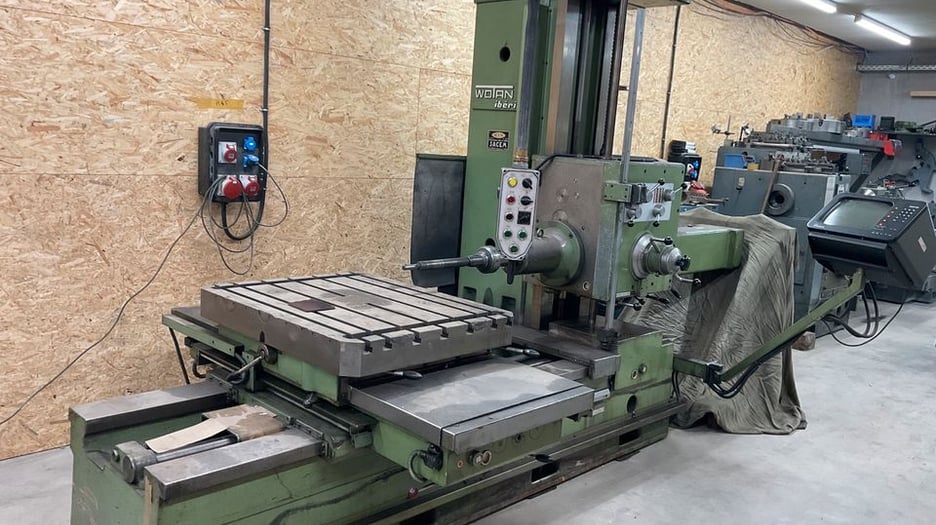

Used Wotan B75T Horizontal Boring Mill | A.K. Machine Traders, Navi Mumbai, India

This used Wotan B75T horizontal boring mill is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring mill machines workpieces with a horizontally mounted spindle.

It has a 75 mm spindle with an ISO 40 nose, running at 12.5–1,000 rpm on 6.7 kW of spindle power. Travels are 800 mm in X, 800 mm in Y and 1,000 mm in Z, with a further 550 mm in the W axis. The 1,000 x 800 mm table turns through 360° and carries up to 1,500 kg.

Key Features

• 360° turning table
• Four travel axes: X, Y, Z and W

Technical Specifications

• Model: Wotan B75T
• Spindle diameter: 75 mm
• Spindle nose: ISO 40
• Spindle speed: 12.5–1,000 rpm
• Spindle power: 6.7 kW
• X-axis travel: 800 mm
• Y-axis travel: 800 mm
• Z-axis travel: 1,000 mm
• W-axis travel: 550 mm
• Table size: 1,000 x 800 mm
• Table rotation: 360°
• Table load: 1,500 kg
• Feed on axis: 0.02–8 mm/rev
• Rapid feed on axis: 2,400 mm/min
• Machine dimensions (L x W x H): 400 x 190 x 240 cm
• Machine weight: 8,000 kg

Applications

• Boring and milling of machine housings and gearbox casings
• Machining of medium-sized fabricated and cast components
• Toolroom and general engineering work
• Precision hole boring and facing

Commercial Details

• Make: Wotan
• Model: B75T
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle size and speed range? The spindle is 75 mm in diameter with an ISO 40 nose and runs at 12.5–1,000 rpm.
• What is the working envelope? Travels are 800 mm in X, 800 mm in Y, 1,000 mm in Z and 550 mm in W, on a 1,000 x 800 mm table.
• How heavy a workpiece can it carry? The turning table is rated for a 1,500 kg load.
• What should I ask when enquiring? Ask for photos or video of the machine under power, the control and electrics condition, which tooling and accessories are included, inspection arrangements, and loading and shipping for its 8,000 kg weight.
