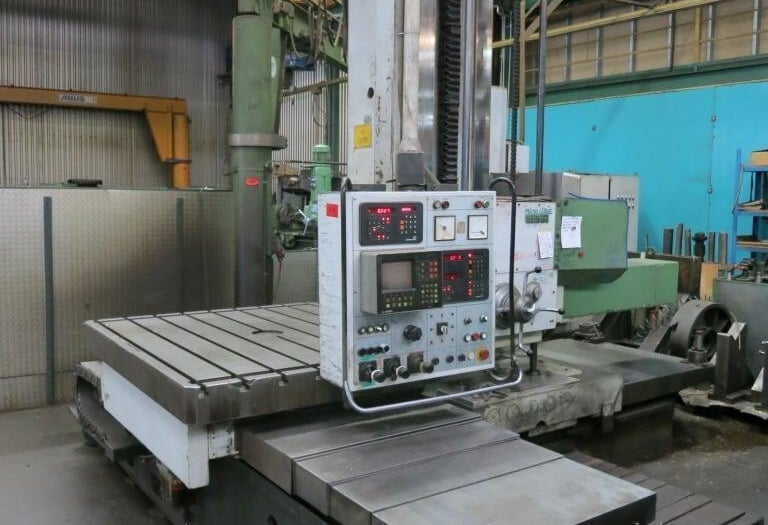

Used Wotan C 105D Horizontal Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used Wotan C 105D horizontal boring machine is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal boring machine bores and mills large workpieces clamped to a table, using a horizontally mounted spindle.

It has a 105 mm spindle with an ISO 50 taper and a 700 mm spindle stroke. Travels are 1,700 mm in X and 1,800 mm in Y and Z, and the table takes loads up to 6,000 kg.

Technical Specifications

• Model: Wotan C 105D
• Spindle diameter: 105 mm
• Spindle taper: ISO 50
• Spindle stroke: 700 mm
• Spindle speed range: 8–1,250 rpm
• X-travel: 1,700 mm
• Y-travel: 1,800 mm
• Z-travel: 1,800 mm
• Table surface: 1,600 × 1,400 mm
• Table load: 6,000 kg
• T-slots: 22H7
• T-slot spacing: 160 mm
• Feed per revolution: 0.025–10 mm/rev
• Feed rate: 4–1,600 mm/min
• Total power requirement: 22 kW
• Machine weight: approx. 19 t

Applications

• Boring and milling large housings and casings
• Machining heavy fabricated and cast components
• Machine-tool, gearbox and heavy engineering parts
• Drilling and facing on large workpieces

Commercial Details

• Make: Wotan
• Model: C 105D
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the spindle size and taper? The spindle is 105 mm in diameter with an ISO 50 taper and a 700 mm stroke.
• How heavy a workpiece can the table take? The table is 1,600 × 1,400 mm and carries up to 6,000 kg.
• What are the axis travels? X travel is 1,700 mm, and Y and Z travels are each 1,800 mm.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which accessories and tooling are included, the condition of the control and electrics, and the loading and shipping arrangements for a machine of about 19 t.
