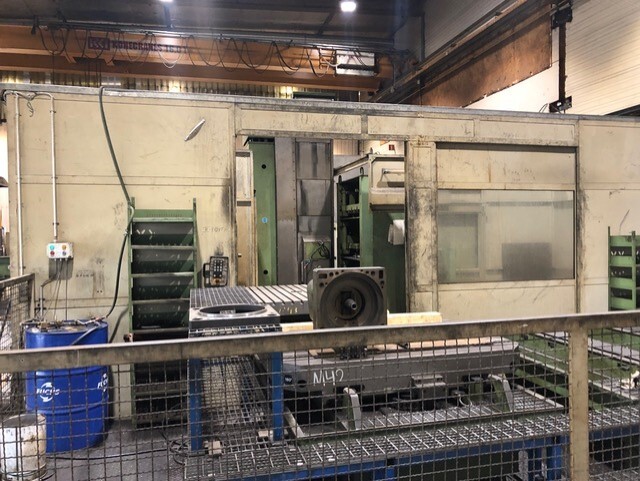

Used Wotan Rapid 2 CNC Boring Machine | A.K. Machine Traders, Navi Mumbai, India

This used Wotan Rapid 2 CNC boring machine is available from A.K. Machine Traders in Navi Mumbai, India. It has been retrofitted with a Heidenhain iTNC 530 control, and the original machine dates from 1982.

It has a 140/150 mm ISO 50 milling spindle and travels of 2,000 mm in X, 1,600 mm in Y and 800 mm in Z, plus 2,350 mm of W travel. The long W travel suits deep milling and boring work such as cylinders.

Key Features

• Retrofitted with a Heidenhain iTNC 530 CNC control
• 360-degree rotating table
• Long W travel for deep spindle milling work

Technical Specifications

• Model: Wotan Rapid 2
• Machine type: CNC boring machine
• Control: Heidenhain iTNC 530 (retrofit)
• Original year of manufacture: 1982
• Milling spindle: 140/150 mm, ISO 50
• X travel: 2,000 mm
• Y travel: 1,600 mm
• Z travel: 800 mm
• W travel: 2,350 mm
• Table size: 1,250 x 1,600 mm
• Table rotation: 360 degrees

Applications

• Milling and boring of long, deep bores such as cylinders
• Machining large components that need long spindle reach
• General heavy boring and milling work

Commercial Details

• Make: Wotan
• Model: Rapid 2
• Year: 1982
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does the Wotan Rapid 2 have? It has been retrofitted with a Heidenhain iTNC 530 control.
• How much travel does it have? The travels are 2,000 mm in X, 1,600 mm in Y, 800 mm in Z and 2,350 mm in W.
• What is the table size? The table measures 1,250 x 1,600 mm and rotates through 360 degrees.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, the condition of the spindle, table and axes, and the details of the control retrofit and electrics. Also confirm which accessories and tooling are included, and the arrangements for loading and shipping.
