Used Wotan Rapid 5 Axis Horizontal Table Borer | A.K. Machine Traders, Navi Mumbai, India

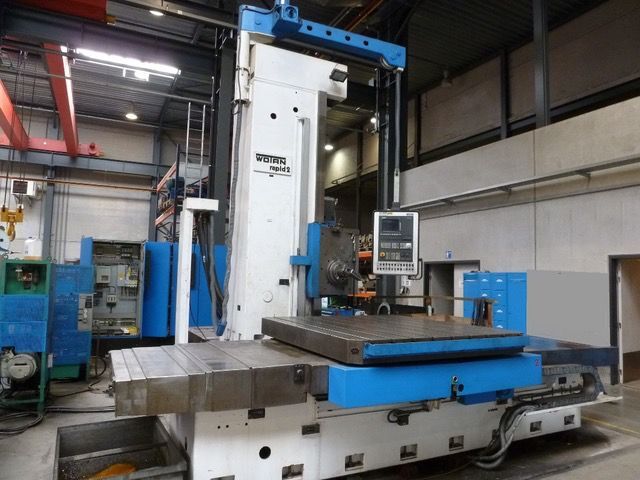

This used Wotan Rapid 5-axis horizontal table borer is available from A.K. Machine Traders in Navi Mumbai, India. A horizontal table borer machines large workpieces with a horizontal spindle, boring and milling them on a table.

It has a 130 mm spindle with a speed range of 2–1,250 rpm, driven by a 48 kW motor. The table measures 2,000 x 1,800 mm, and the machine is controlled by a Siemens 840C CNC.

Key Features

• Siemens 840C CNC control
• B axis rotation with 360,000 positions
• 5-axis machining capability

Technical Specifications

• Model: Wotan Rapid
• Machine type: 5-axis horizontal table borer
• CNC: Siemens 840C
• Spindle diameter: 130 mm
• Cross travel (table, X): 2,000 mm
• Longitudinal travel (column, Z): 1,150 mm
• Vertical travel (head, Y): 2,000 mm
• Spindle travel (W): 730 mm
• Table size: 2,000 x 1,800 mm
• B axis rotation: 360,000 positions
• Spindle speed: 2–1,250 rpm
• Spindle motor power: 48 kW
• Retrofit: 1998 / 2004

Applications

• Boring and milling large machine housings and frames
• Machining gearbox and pump casings
• Heavy fabricated and cast components for general engineering
• Large parts needing multi-face machining in one setup

Commercial Details

• Make: Wotan
• Model: Rapid
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the table size? The table measures 2,000 x 1,800 mm.
• What control does it use? It uses a Siemens 840C CNC.
• What spindle size and power does it have? It has a 130 mm diameter spindle with a 48 kW motor, running at 2–1,250 rpm.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, inspection arrangements, details of the retrofit work, and which tooling, accessories and manuals are included. Also confirm the condition of the control and electrics, and loading and shipping arrangements.
