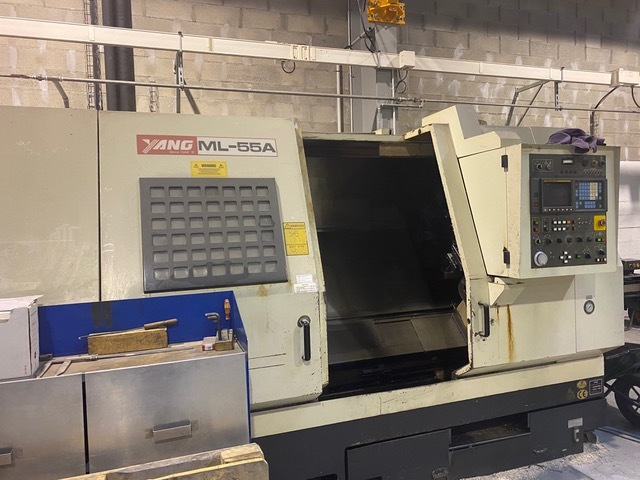

Used Yang ML-55A CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Yang ML-55A CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a CNC turning machine that cuts round parts from bar or workpieces held in a chuck.

It has a 400 mm chuck, a 720 mm swing and 1,200 mm between centres, with a maximum turning diameter of 550 mm. An 8-station turret and a FANUC 0T control complete the specification.

Technical Specifications

• Model: ML-55A

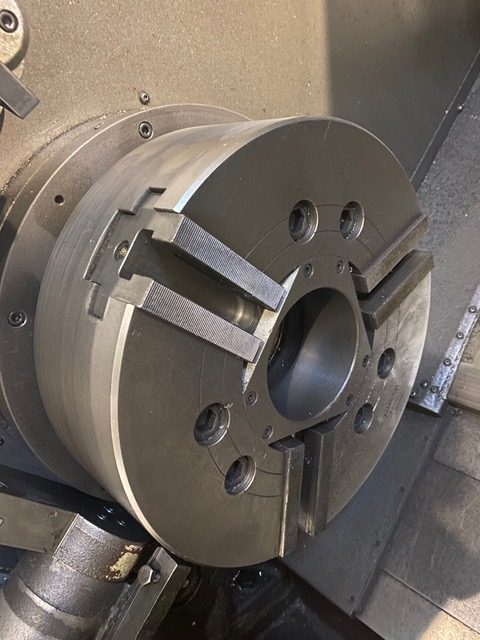

• Chuck size: 400 mm
• Swing: 720 mm
• Distance between centres: 1,200 mm
• Maximum turning diameter: 550 mm

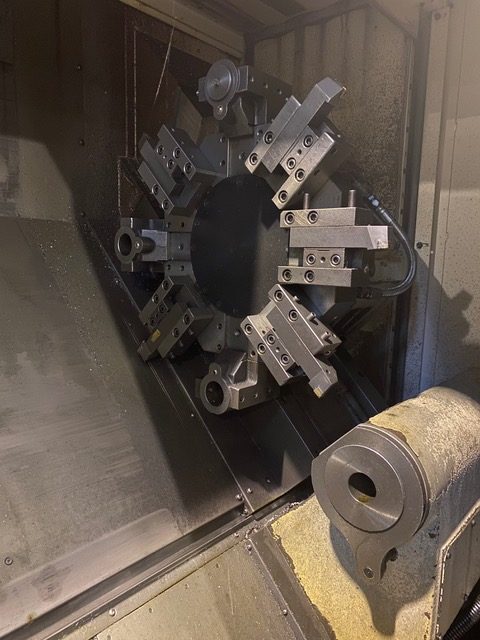

• Turret: 8 stations
• Bar capacity: 130 mm

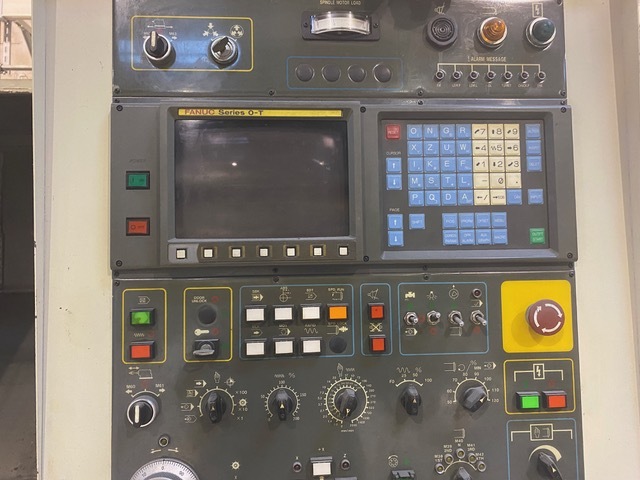

• Control: FANUC 0T

Applications

• Turned shafts and long round components
• Bar-fed turned parts up to 130 mm diameter
• General machining and turning workshop jobs
• Medium to large diameter round components up to 550 mm

Commercial Details

• Make: Yang
• Model: ML-55A
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What is the maximum turning diameter? The maximum turning diameter is 550 mm, with a 720 mm swing.
• What control does it have? It is fitted with a FANUC 0T control.
• What length of work can it take? It has 1,200 mm between centres.
• What should I ask when enquiring? Ask for photos or a video of the machine running under power, whether an inspection is possible, which chucks, tooling and accessories are included, the condition of the control and electrics, and the loading and shipping arrangements.
