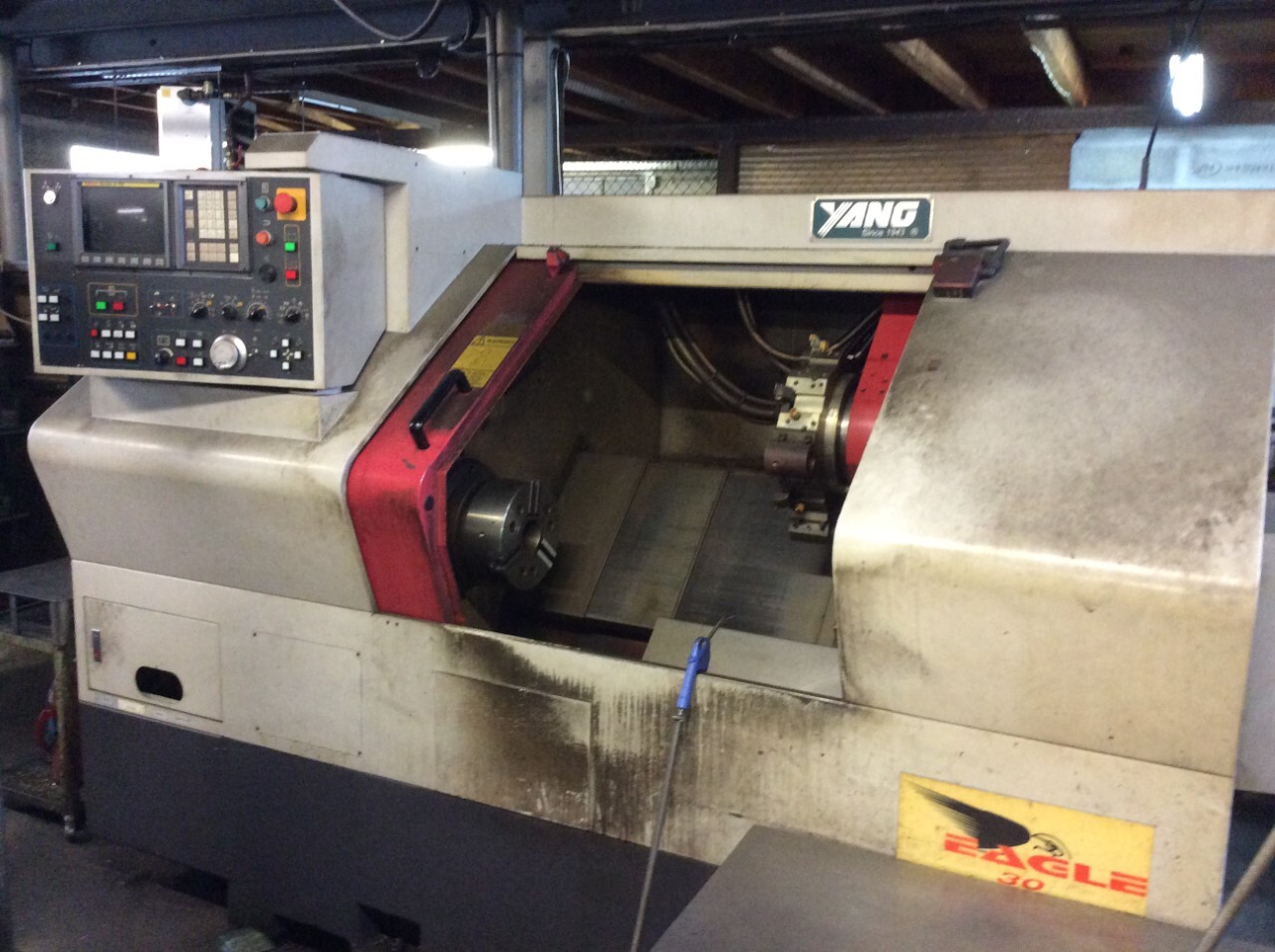

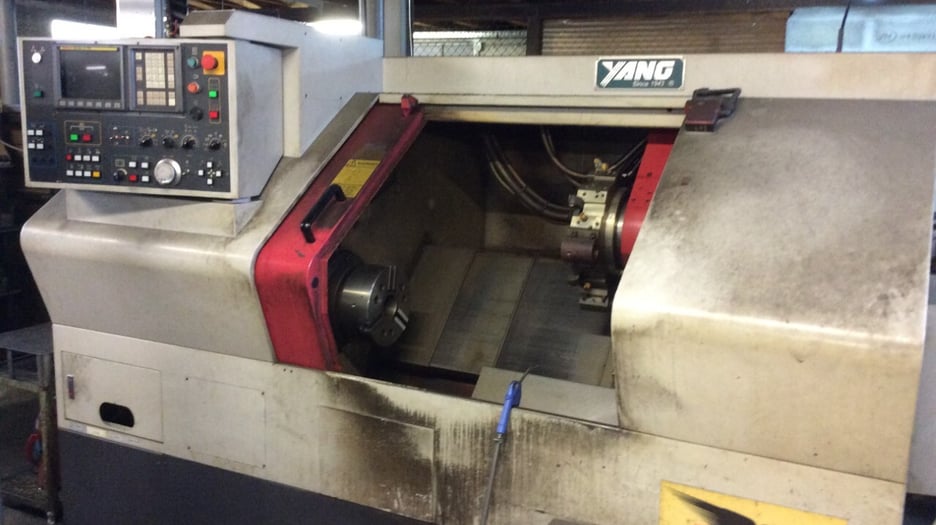

Used Yang SML30 CNC Lathe | A.K. Machine Traders, Navi Mumbai, India

This used Yang SML30 CNC lathe is available from A.K. Machine Traders in Navi Mumbai, India. It is a turning centre that machines round parts by rotating the workpiece against cutting tools.

It has a 350 mm maximum cutting diameter and a 720 mm maximum cutting length. A 3,000 rpm spindle driven by a 15/18.5 kW motor, a 10" chuck, an 8-position turret and a Fanuc 0TD control complete the specification.

Technical Specifications

• Make: Yang
• Model: SML30
• Year: 2000
• Maximum cutting diameter: 350 mm
• Maximum cutting length: 720 mm
• Swing: 330
• Swing over cross-slide: 136 mm
• Spindle speed: 3,000 rpm
• Spindle motor power: 15/18.5 kW
• Chuck size: 10"
• Bar capacity: 75 mm
• Turret positions: 8
• Control: Fanuc 0TD
• Machine dimensions (L x D x H): 1,990 x 1,190 x 1,100 mm

Applications

• Turned shafts and pins
• Round components machined from bar
• Chucked parts such as flanges and bushes
• General machining and engineering workshops

Commercial Details

• Make: Yang
• Model: SML30
• Year: 2000
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What control does the Yang SML30 use? It has a Fanuc 0TD control.
• What is the bar capacity and chuck size? Bar capacity is 75 mm and the chuck is 10".
• How many tools can the turret hold? The turret has 8 positions.
• What should I ask when enquiring? Ask for photos or video of the lathe running under power, and whether an inspection can be arranged. Confirm the condition of the chuck, turret and control, which accessories and tooling are included, the electrical supply required, and the loading and shipping arrangements.
