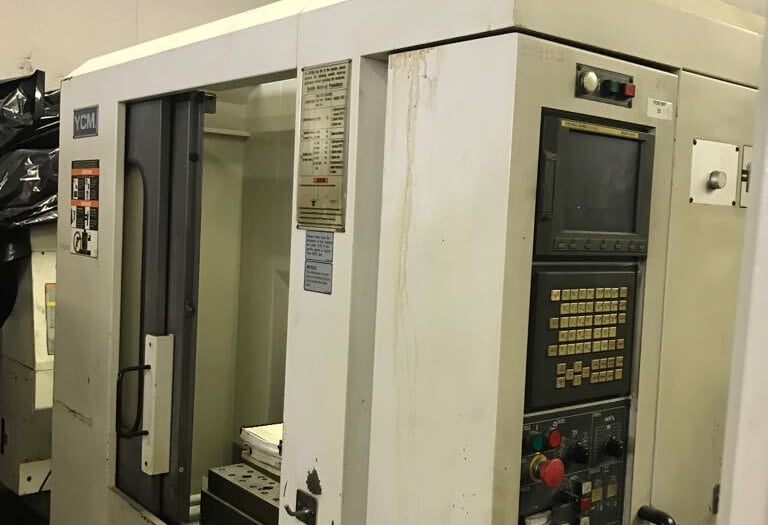

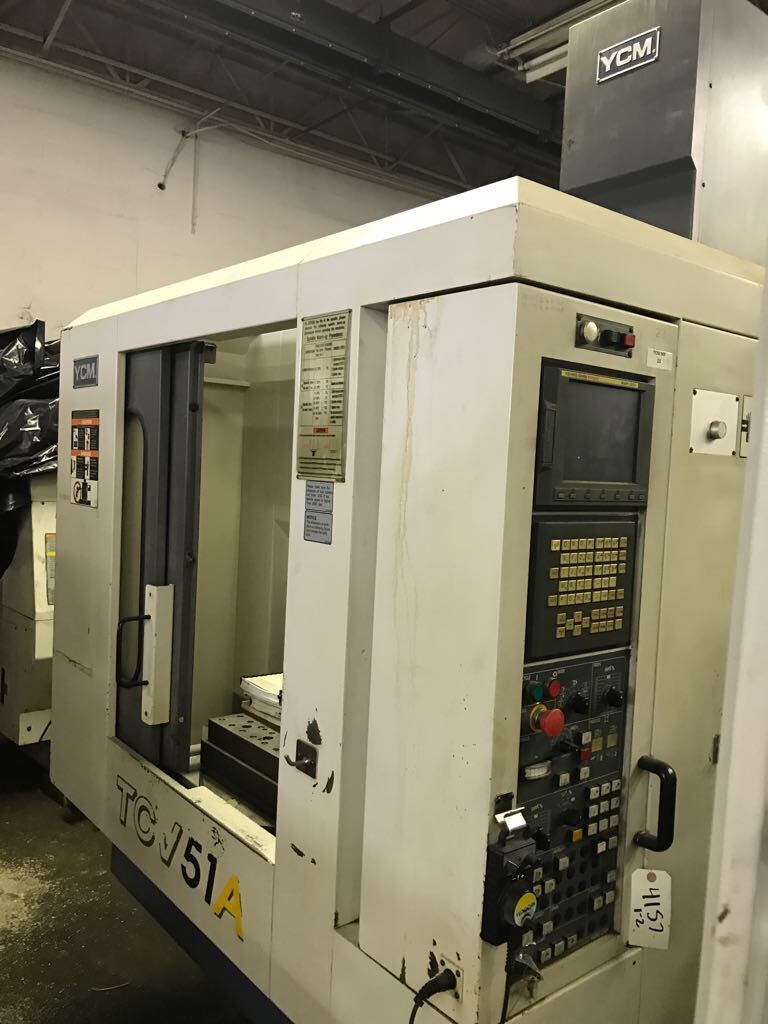

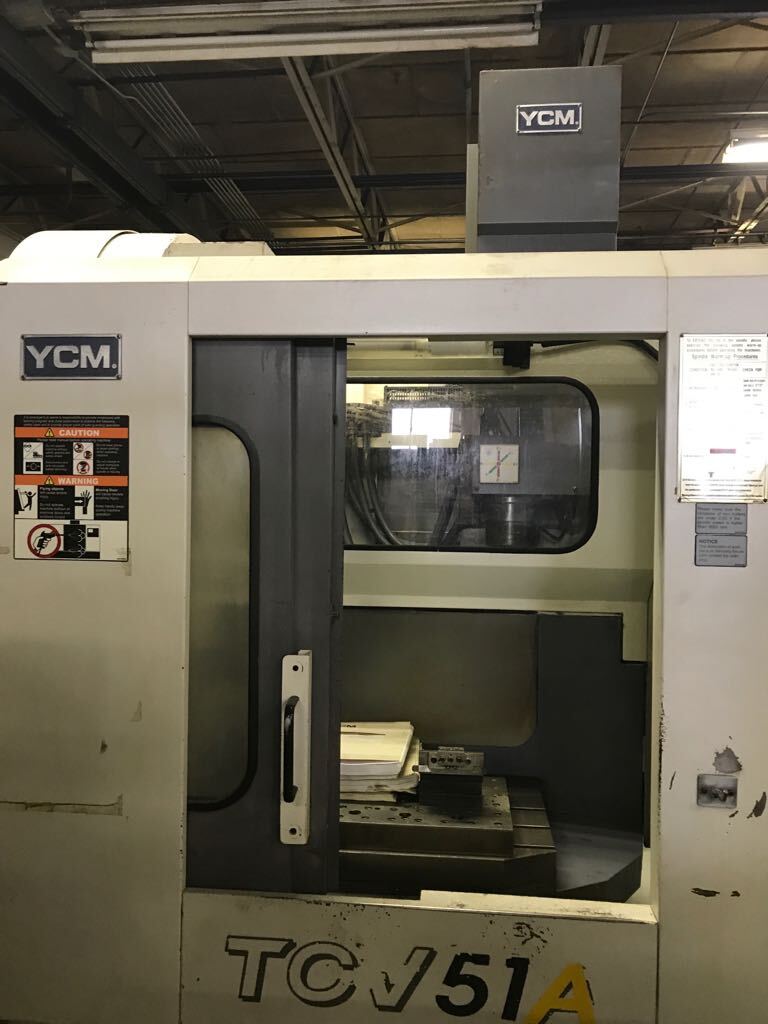

Used YCM TCV 51A Vertical Machining Center | A.K. Machine Traders, Navi Mumbai, India

This used YCM TCV 51A vertical machining centre is available from A.K. Machine Traders in Navi Mumbai, India. A vertical machining centre cuts metal parts with a rotating tool held in a vertical spindle.

It has axis travels of 508 mm in X, 317.5 mm in Y and 299.7 mm in Z, with a 10,000 rpm spindle on a CAT-40 taper. A 30-tool automatic tool changer and a FANUC MXP-100i CNC control complete the specification. The year of manufacture is 2004.

Key Features

• 30-tool automatic tool changer
• CAT-40 spindle taper
• FANUC MXP-100i CNC control

Technical Specifications

• Model: YCM TCV 51A
• Year: 2004
• X-axis travel: 508 mm
• Y-axis travel: 317.5 mm
• Z-axis travel: 299.7 mm
• Table length: 603.2 mm
• Table width: 398.8 mm
• Spindle speed: 10,000 rpm
• Power: 11.2 kW
• Spindle taper: CAT-40
• Tool changer capacity: 30 tools

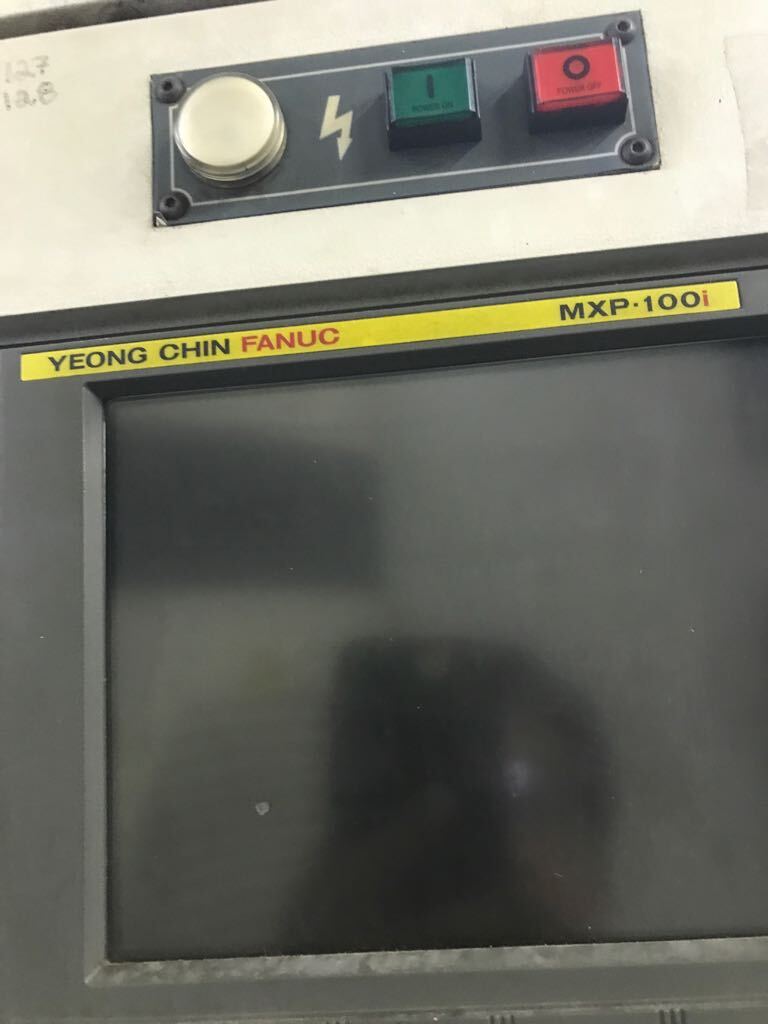

• Control: CNC (FANUC MXP-100i)
• Dimensions: 83″ x 132″ x 101″
• Weight: 12,320 lbs

Applications

• Machining small and medium metal components
• Milling, drilling and tapping of prismatic parts
• Tool room and job shop work
• Short-run and batch production of precision parts

Commercial Details

• Make: YCM
• Model: TCV 51A
• Year: 2004
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What are the axis travels? The travels are 508 mm in X, 317.5 mm in Y and 299.7 mm in Z.
• What control and tool changer does it have? It has a FANUC MXP-100i CNC control and a 30-tool automatic tool changer with a CAT-40 spindle taper.
• What spindle speed and power does it offer? The spindle runs up to 10,000 rpm and the power is 11.2 kW.
• What should I ask when enquiring? Ask for photos or video of the machine running under power, whether an inspection is possible, and which accessories, tooling and manuals are included. Also confirm the condition of the control and electrics, and the loading and shipping arrangements.
