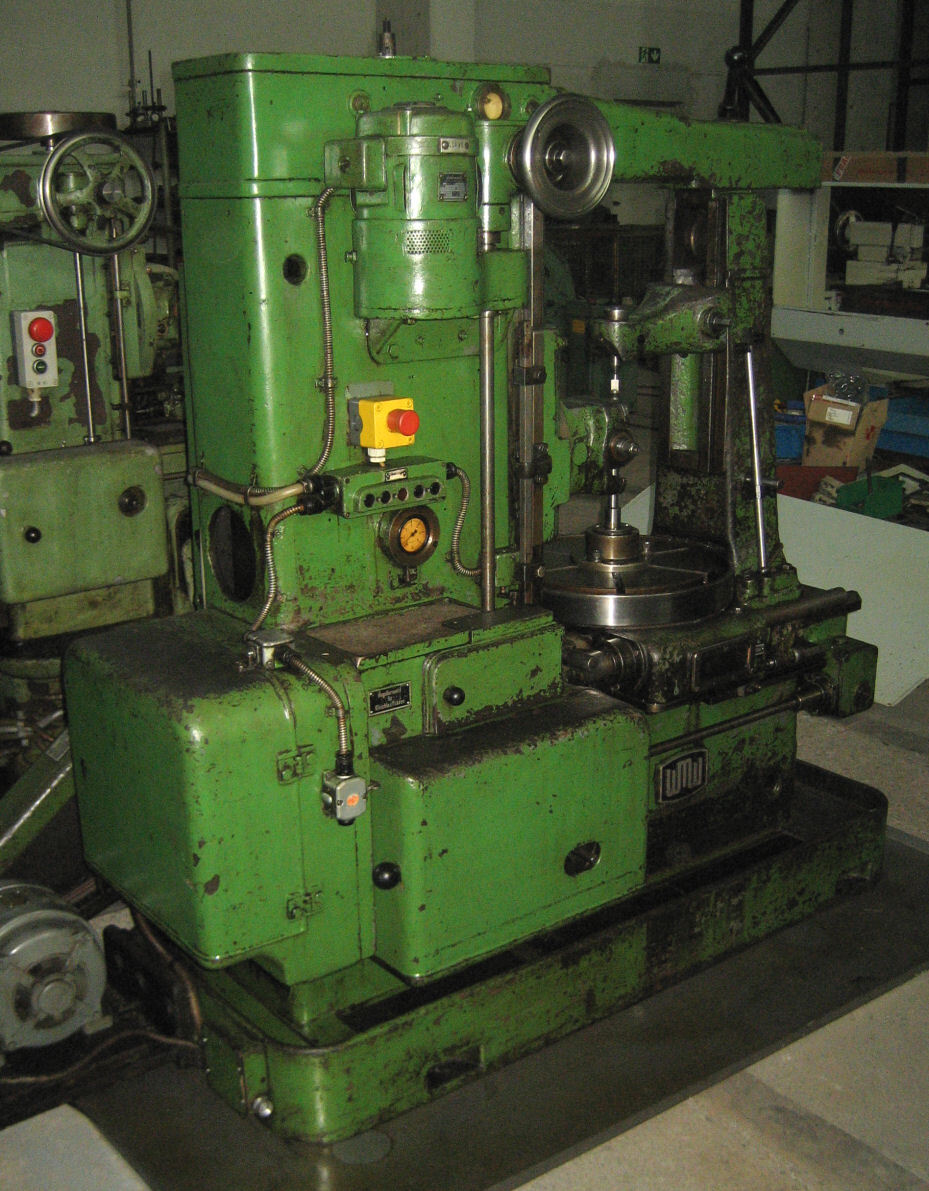

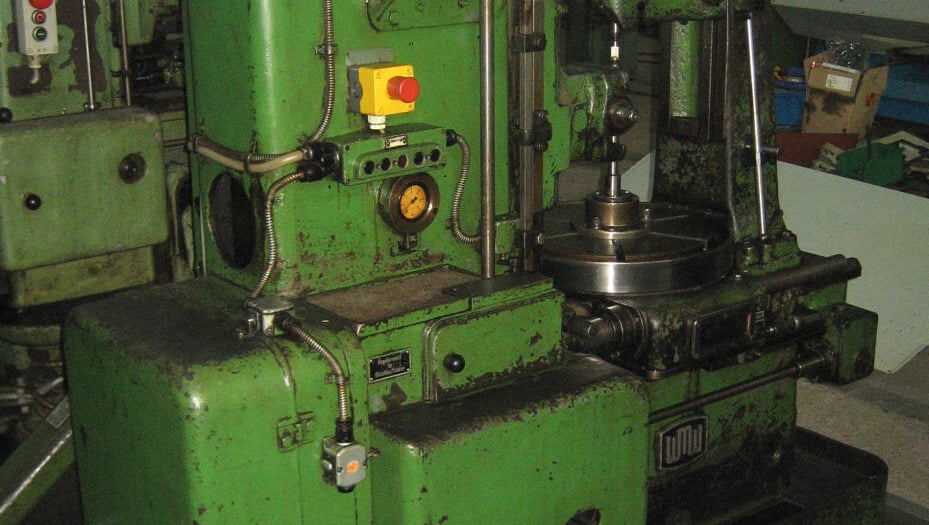

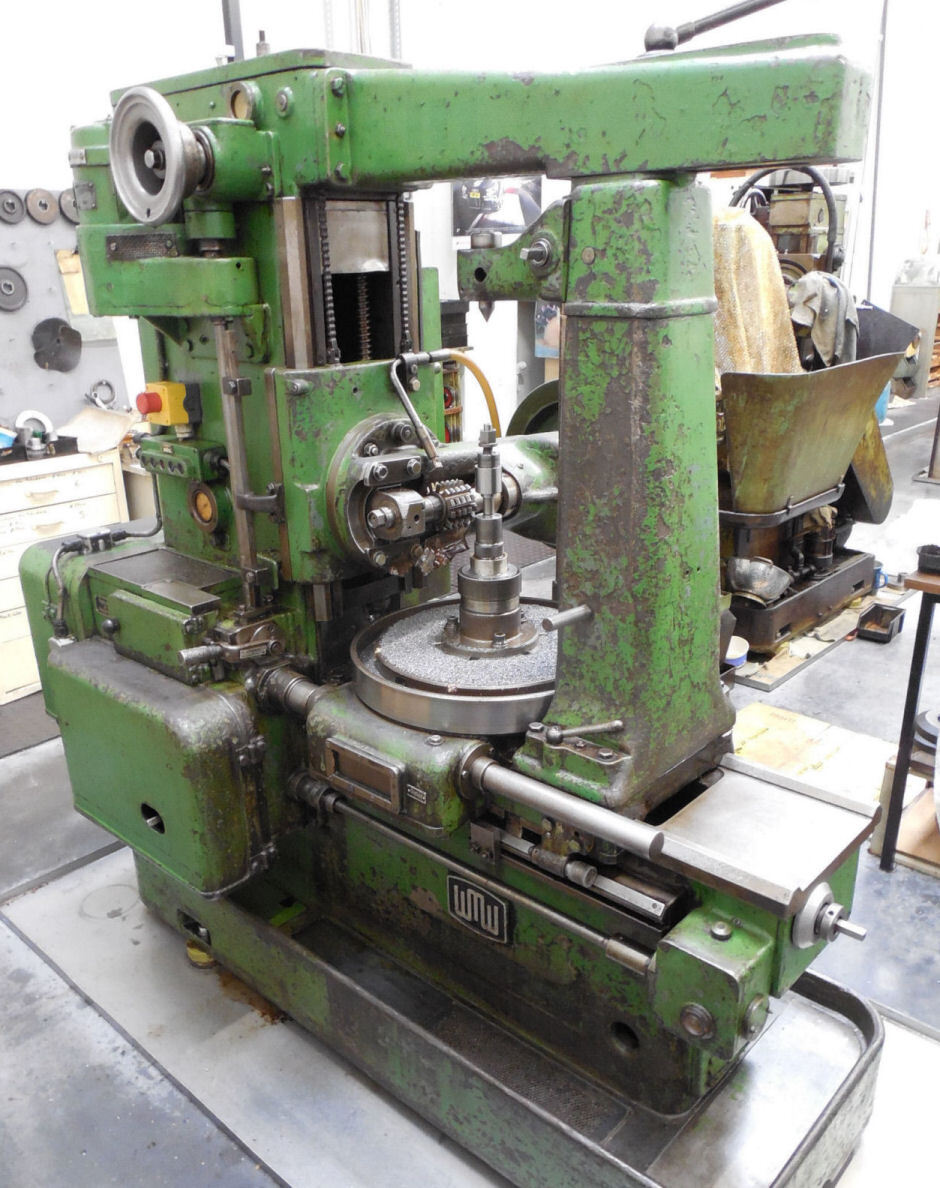

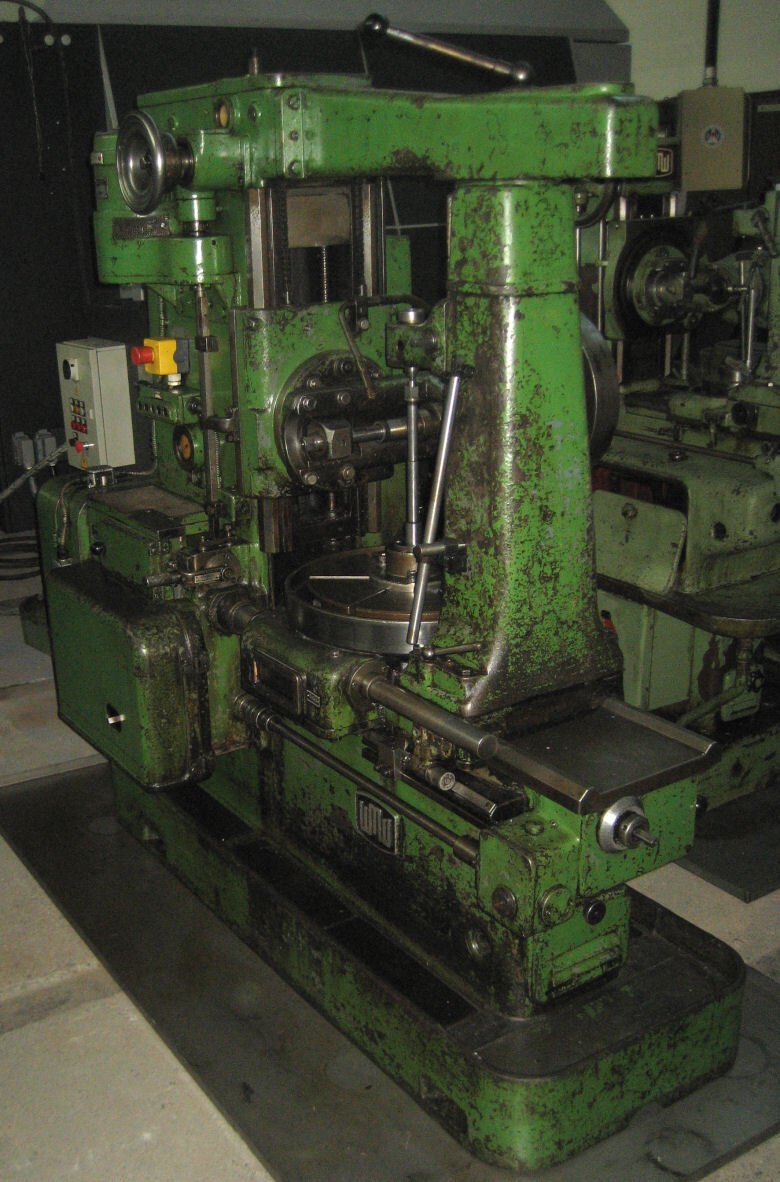

Used ZFW 5 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used ZFW 5 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. It cuts teeth on cylindrical, helical and worm gears by hobbing.

It takes workpieces up to 500 mm in diameter, with a maximum module of 5 and a maximum tooth width of 285 mm. It is driven by a 2.2 kW motor.

Technical Specifications

• Model: ZFW 5
• Gear types: Cylindrical, helical and worm gears
• Max. workpiece diameter: 500 mm
• Max. module: 5
• Max. tooth width: 285 mm
• Min. number of teeth: 12
• Max. hob diameter: 100 mm
• Motor power: 2.2 kW
• Voltage: 380 V / 50 Hz
• Length: 2,000 mm
• Width: 900 mm
• Height: 1,680 mm
• Weight: approx. 1.9 t

Applications

• Cylindrical spur and helical gears
• Worm gears
• Small-batch and workshop gear production
• Gears for gearboxes and machinery

Commercial Details

• Make: ZFW
• Model: ZFW 5
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What gears can this machine cut? It hobs cylindrical, helical and worm gears.
• What is the largest workpiece it can take? Workpieces up to 500 mm in diameter, with a maximum module of 5 and tooth width of 285 mm.
• What power supply does it need? It runs on 380 V / 50 Hz with a 2.2 kW motor.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether hobs, change gears and fixtures are included, the condition of the electrics, and loading and shipping arrangements.
