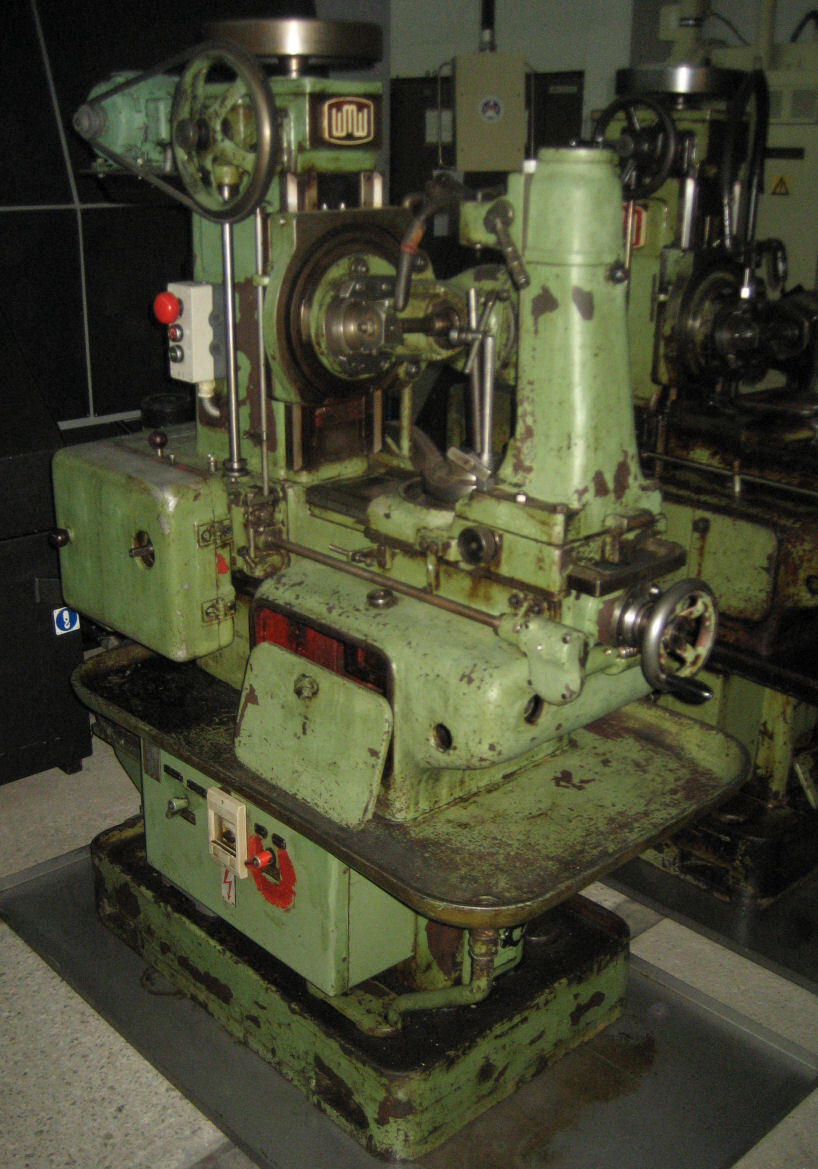

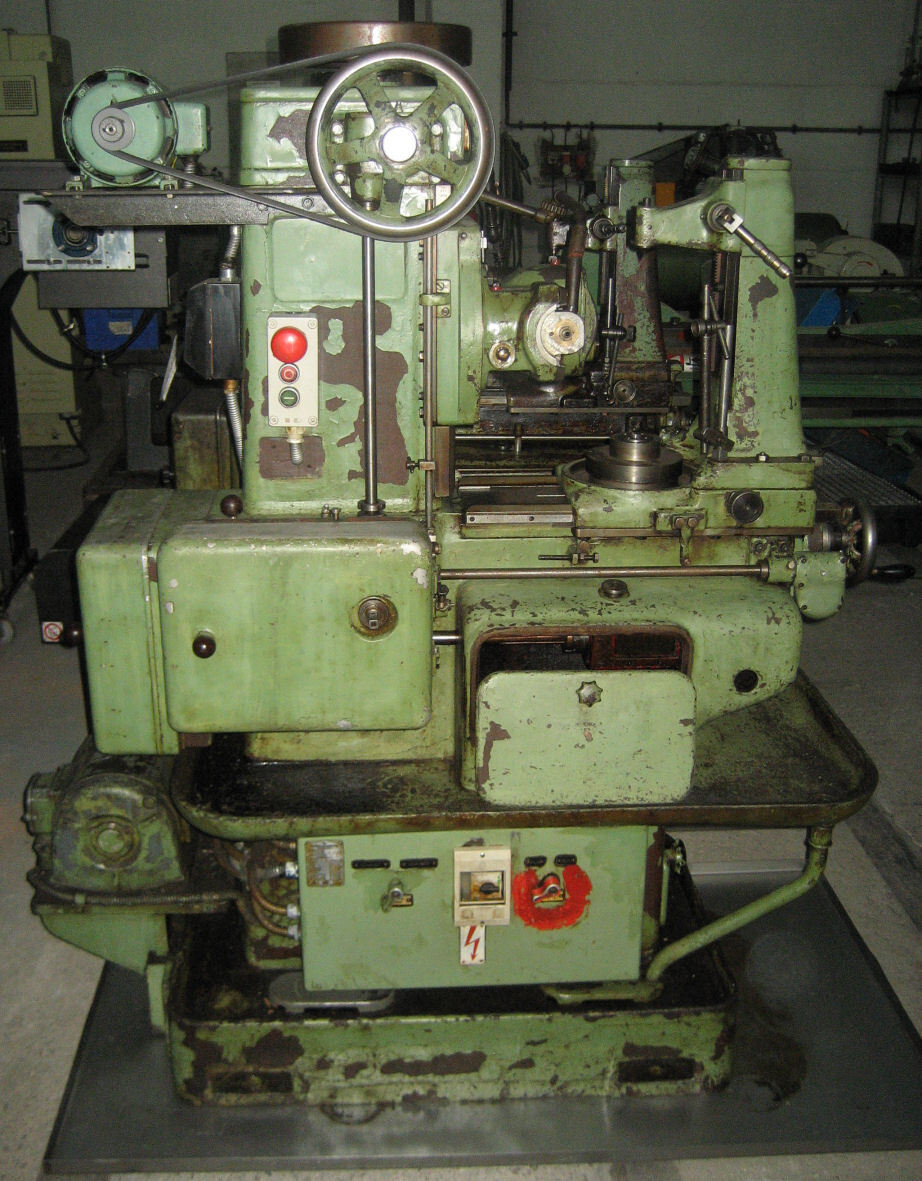

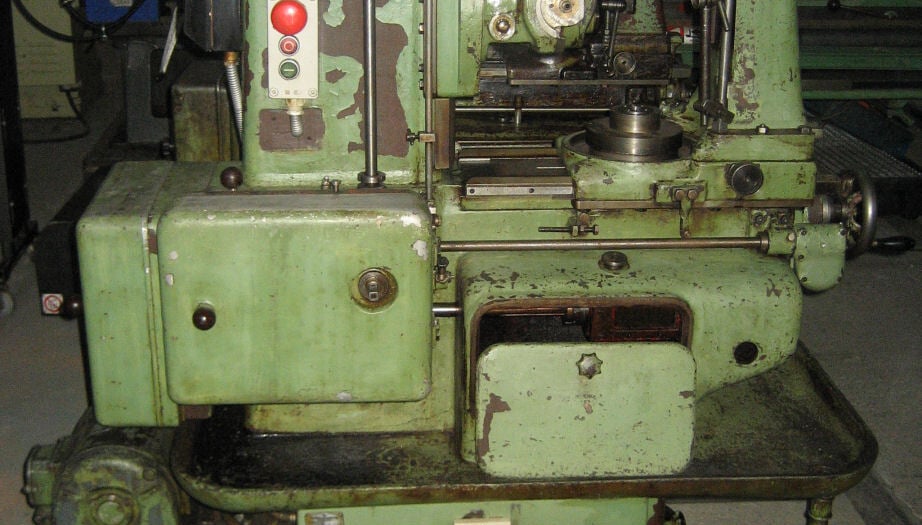

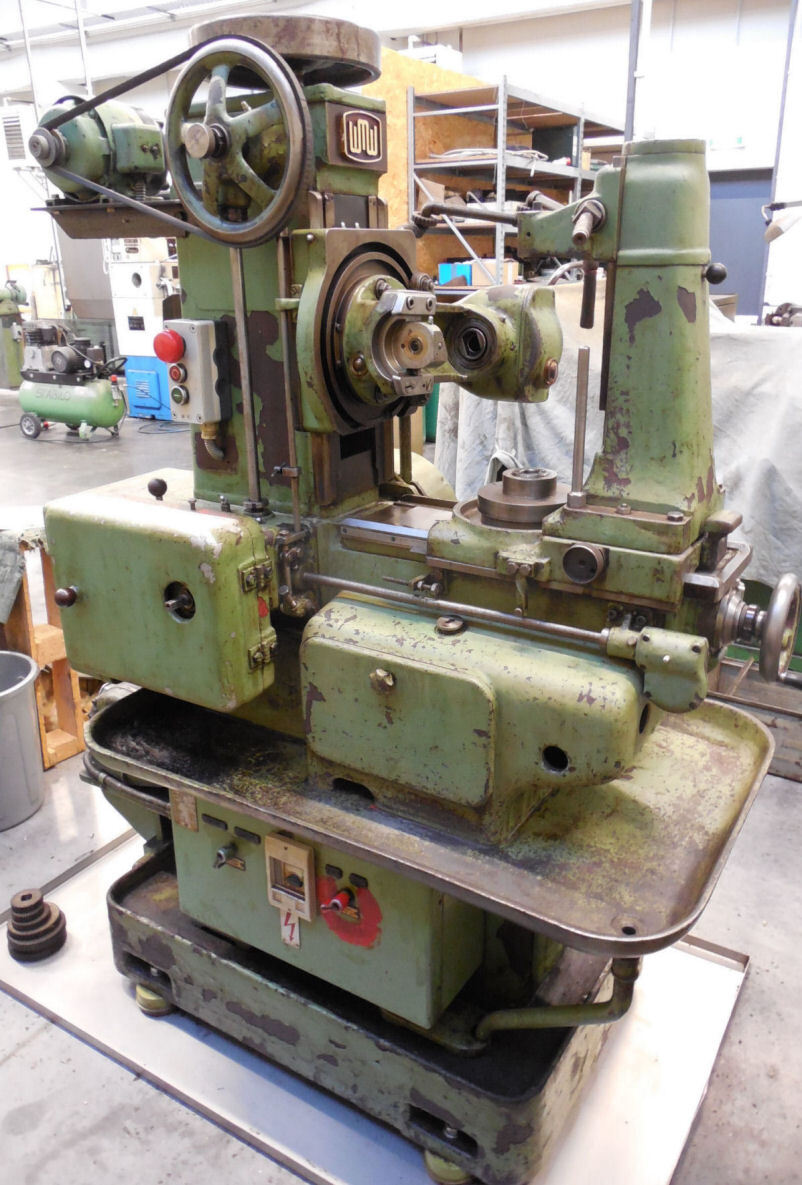

Used ZFWZ 250×2.5 Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used ZFWZ 250×2.5 gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. It cuts teeth on cylindrical, helical and worm gears using a hob.

It takes workpieces up to 250 mm in diameter with a maximum module of 3 and a maximum tooth width of 125 mm. The largest hob it accepts is 80 mm in diameter, and the minimum number of teeth is 6.

Technical Specifications

• Model: ZFWZ 250×2.5
• Machine number: 8715
• Max. workpiece diameter: 250 mm
• Max. module: 3
• Max. tooth width: 125 mm
• Max. milling tool diameter: 80 mm
• Min. number of teeth: 6
• Connected power: 1.64 kW
• Voltage: 380 V / 50 Hz
• Length: 2,000 mm
• Width: 1,500 mm
• Height: 1,700 mm
• Weight: approx. 1 t

Applications

• Cylindrical spur gears
• Helical gears
• Worm gears
• Small gears for gearboxes and machinery

Commercial Details

• Make: ZFWZ
• Model: 250×2.5
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What types of gear can it cut? It hobs cylindrical, helical and worm gears.
• What is the maximum workpiece size? The maximum workpiece diameter is 250 mm, with a maximum tooth width of 125 mm and a maximum module of 3.
• What power supply does it need? It is connected at 380 V / 50 Hz with a connected power of 1.64 kW.
• What should I ask when enquiring? Ask for photos or video of the machine running, whether an inspection is possible, which change gears, hobs and fixtures are included, the condition of the electrics, and the loading and shipping arrangements for a machine of about 1 t.
