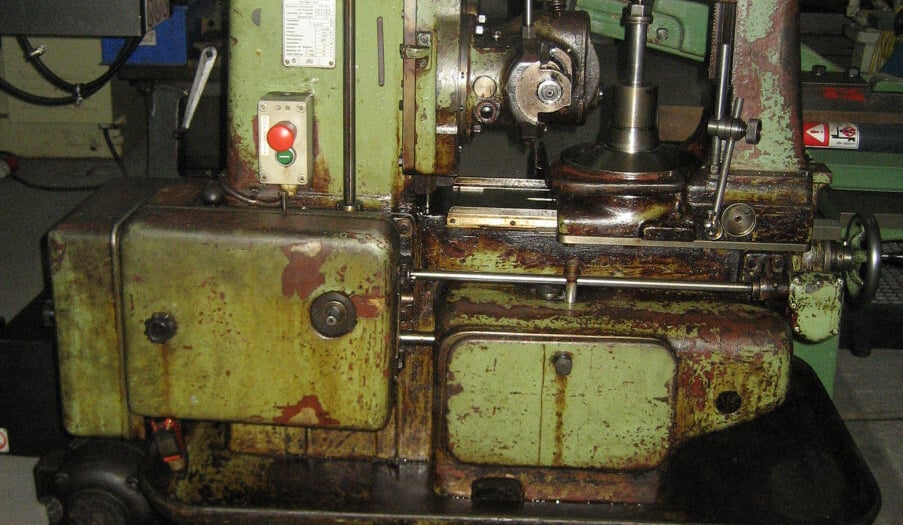

Used ZFWZ 250×2.5 (ORS 20) Gear Hobbing Machine | A.K. Machine Traders, Navi Mumbai, India

This used ZFWZ 250×2.5 (ORS 20) gear hobbing machine is available from A.K. Machine Traders in Navi Mumbai, India. It cuts cylindrical, helical and worm gears by hobbing.

It takes workpieces up to 250 mm in diameter with a maximum module of 3 and a maximum tooth width of 125 mm. The main motor is 1.5 kW, and the machine runs on 380 V / 50 Hz.

Technical Specifications

• Model: ZFWZ 250×2.5 (ORS 20)
• Machine number: 840
• Max. workpiece diameter: 250 mm
• Max. module: 3
• Max. tooth width: 125 mm
• Max. hob diameter: 80 mm
• Min. number of teeth: 6
• Main motor: 1.5 kW
• Connected power: 1.6 kW
• Voltage: 380 V / 50 Hz
• Length: 2,000 mm
• Width: 1,500 mm
• Height: 1,700 mm
• Weight: approx. 1 t

Applications

• Cylindrical spur and helical gears
• Worm gears
• Small gears for gearboxes and machinery drives

Commercial Details

• Make: ZFWZ
• Model: 250×2.5 (ORS 20)
• Condition: Used
• Location: Navi Mumbai, Maharashtra, India
• Seller: A.K. Machine Traders

Frequently Asked Questions

• What gears can this machine cut? It hobs cylindrical, helical and worm gears.
• What is the largest workpiece it takes? Maximum workpiece diameter is 250 mm, with a maximum module of 3 and tooth width up to 125 mm.
• What power supply does it need? It runs on 380 V / 50 Hz with a 1.5 kW main motor and 1.6 kW connected power.
• What should I ask when enquiring? Ask for photos or video of the machine under power, whether an inspection is possible, which hobs, change gears and accessories are included, the condition of the electrics and controls, and loading and shipping arrangements for its approx. 1 t weight.
